• Air Vent Valve Yoshitake 3/4 นิ้ว 20A,TA-6,วาล์วระบายอากาศ
1 1

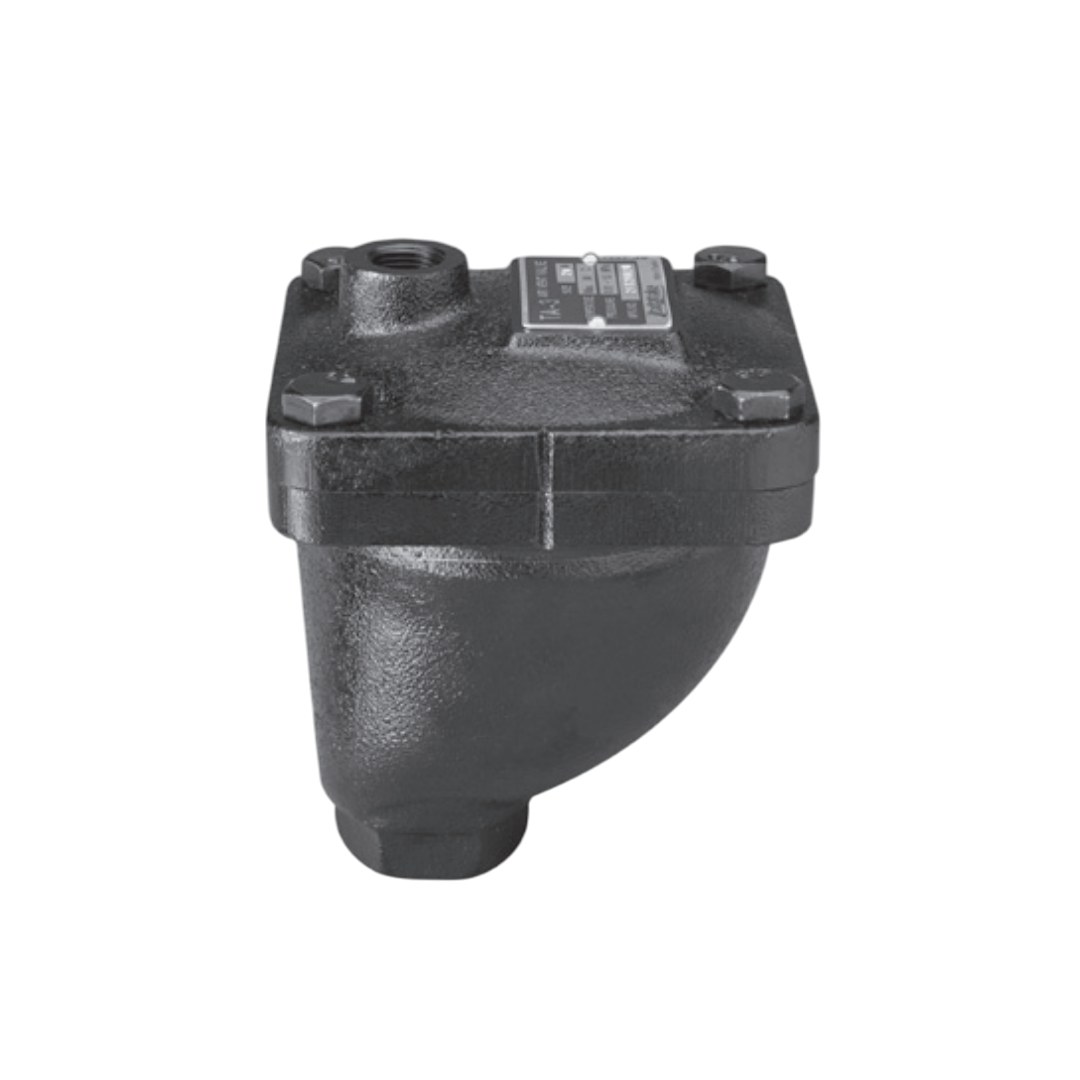

Air Vent Valve Yoshitake 3/4 inch 20A,TA-6,air vent valve

Air Vent Valve Yoshitake 3/4 inch 20A,TA-6,air vent valve

10,112.89 ฿
10,112.89 ฿
Sale Sold out

YOSHITAKE

รายละเอียด Air Vent Valve Yoshitake 3/4 inch 20A,TA-6,air vent valve

Features

  • Wider pressure range than that of conventional air vent valves and applicable to from low pressure to high.
Chain sprocket with KANA hub, size 40

Dimensions (mm) and Weights (kg)

Nominal size d d1 H C Weight
15A Rc 1/2 Rc 3/8 139 114 2.72
20A Rc 3/4 Rc 3/8 139 114 2.72
25A Rc 1 Rc 3/8 143 114 2.88
32A Rc 1-1/4 Rc 3/8 143 114 2.88

Specifications

Model TA-6
Application Cold and hot water, Oil (specific gravity 0.8 or more)
Working pressure 0.01-1.0 MPa
Maximum temperature 90˚C
Material Body, cover : Bronze
Valve : Brass
Valve seat : Brass (equipped with NBR disc)
Float : Stainless steel
View full details
