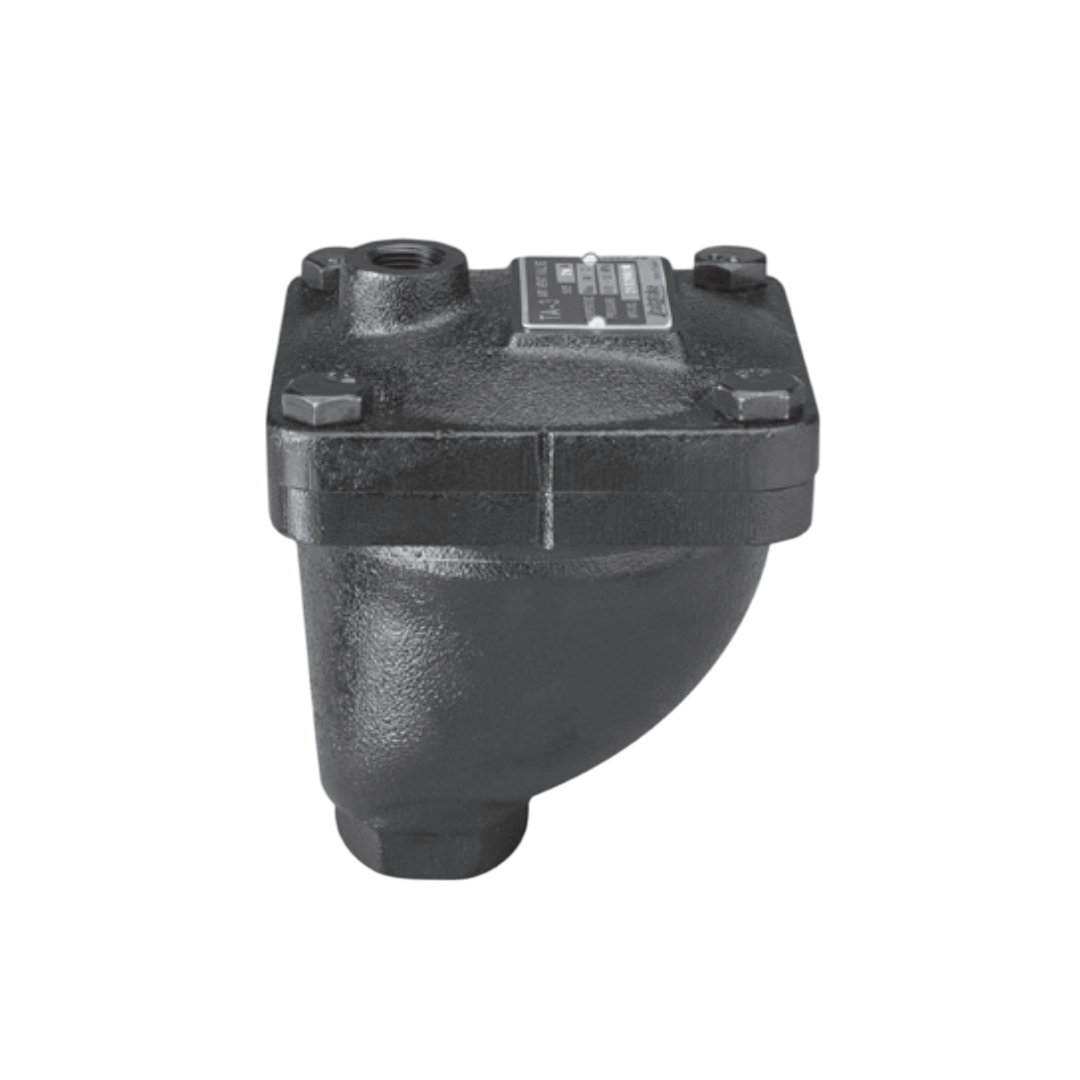

Air Vent Valve Yoshitake 1 นิ้ว 25A,TA-6,วาล์วระบายอากาศ
Air Vent Valve Yoshitake 1 นิ้ว 25A,TA-6,วาล์วระบายอากาศ
Yoshitake
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
11,447.04 ฿
Regular price
Sale price
11,447.04 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Air Vent Valve Yoshitake 1 นิ้ว 25A,TA-6,วาล์วระบายอากาศ
Features
- Wider pressure range than that of conventional air vent valves and applicable to from low pressure to high.
Dimensions (mm) and Weights (kg)
| Nominal size | d | d1 | H | C | Weight |
| 15A | Rc 1/2 | Rc 3/8 | 139 | 114 | 2.72 |
| 20A | Rc 3/4 | Rc 3/8 | 139 | 114 | 2.72 |
| 25A | Rc 1 | Rc 3/8 | 143 | 114 | 2.88 |
| 32A | Rc 1-1/4 | Rc 3/8 | 143 | 114 | 2.88 |
Specifications
| Model | TA-6 |
| Application | Cold and hot water, Oil (specific gravity 0.8 or more) |
| Working pressure | 0.01-1.0 MPa |
| Maximum temperature | 90˚C |
| Material | Body, cover : Bronze |
| Valve : Brass | |
| Valve seat : Brass (equipped with NBR disc) | |
| Float : Stainless steel |
