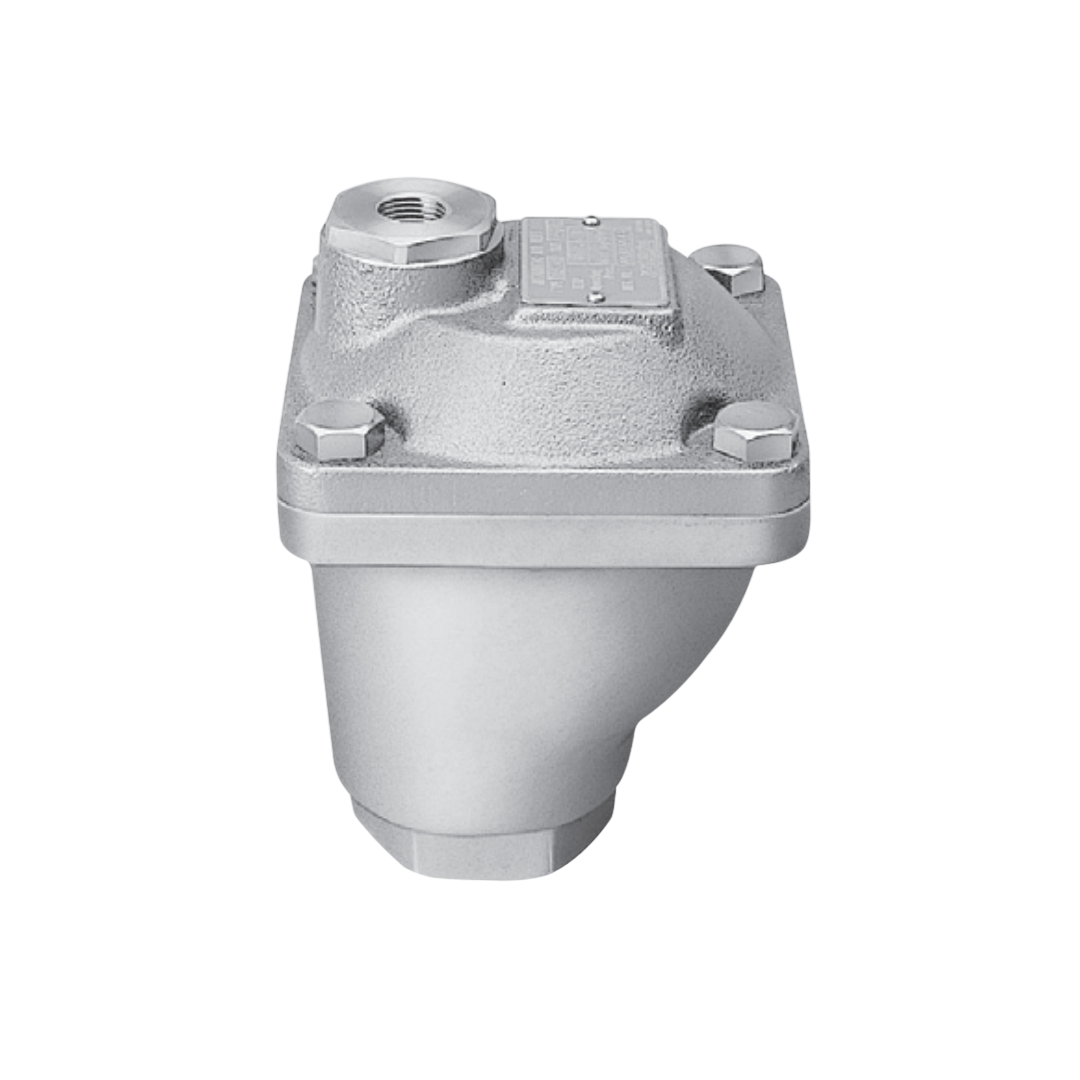

Air Vent Valve Yoshitake 1 นิ้ว 25A,TA-2C,วาล์วระบายอากาศ
Air Vent Valve Yoshitake 1 นิ้ว 25A,TA-2C,วาล์วระบายอากาศ
Yoshitake
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
7,980.67 ฿
Regular price
Sale price
7,980.67 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Air Vent Valve Yoshitake 1 นิ้ว 25A,TA-2C,วาล์วระบายอากาศ
Features
- Equipped with a quick exhaust mechanism, air inside piping can be quickly discharged at the time of initial water supply, ensuring smooth water supply.
- Nylon 11 is coated inside and outside surfaces of body.
- No leakage from the valve due to synthetic rubber used for valve seat.
Dimensions (mm) and Weights (kg)
| Nominal size | d | d1 | H | C | Weight |
| 15A | Rc 1/2 | Rc 3/8 | 153 | 114 | 3.18 |
| 20A | Rc 3/4 | Rc 3/8 | 153 | 114 | 3.18 |
| 25A | Rc 1 | Rc 3/8 | 157 | 114 | 3.22 |
| 32A | Rc 1-1/4 | Rc 3/8 | 157 | 114 | 3.22 |
Specifications
| Model | TA-2C |
| Application | Cold and hot water, Oil (specific gravity 0.8 or more) |
| Working pressure | 0.01-1.0 MPa |
| Maximum temperature | 60˚C |
| Operating pressure range of quick exhaust valve | 0.01 MPa or less |
| Material | Body : Ductile cast iron (FCD450) |
| Cover : Bronze | |
| Valve : Brass | |
| Sub valve : Brass (equipped with NBR disc) | |
| Float : Stainless steel | |
| Connection | JIS Rc screwed |
- The body of the TA-2 is electrodeposition-coated for rustproofing.
