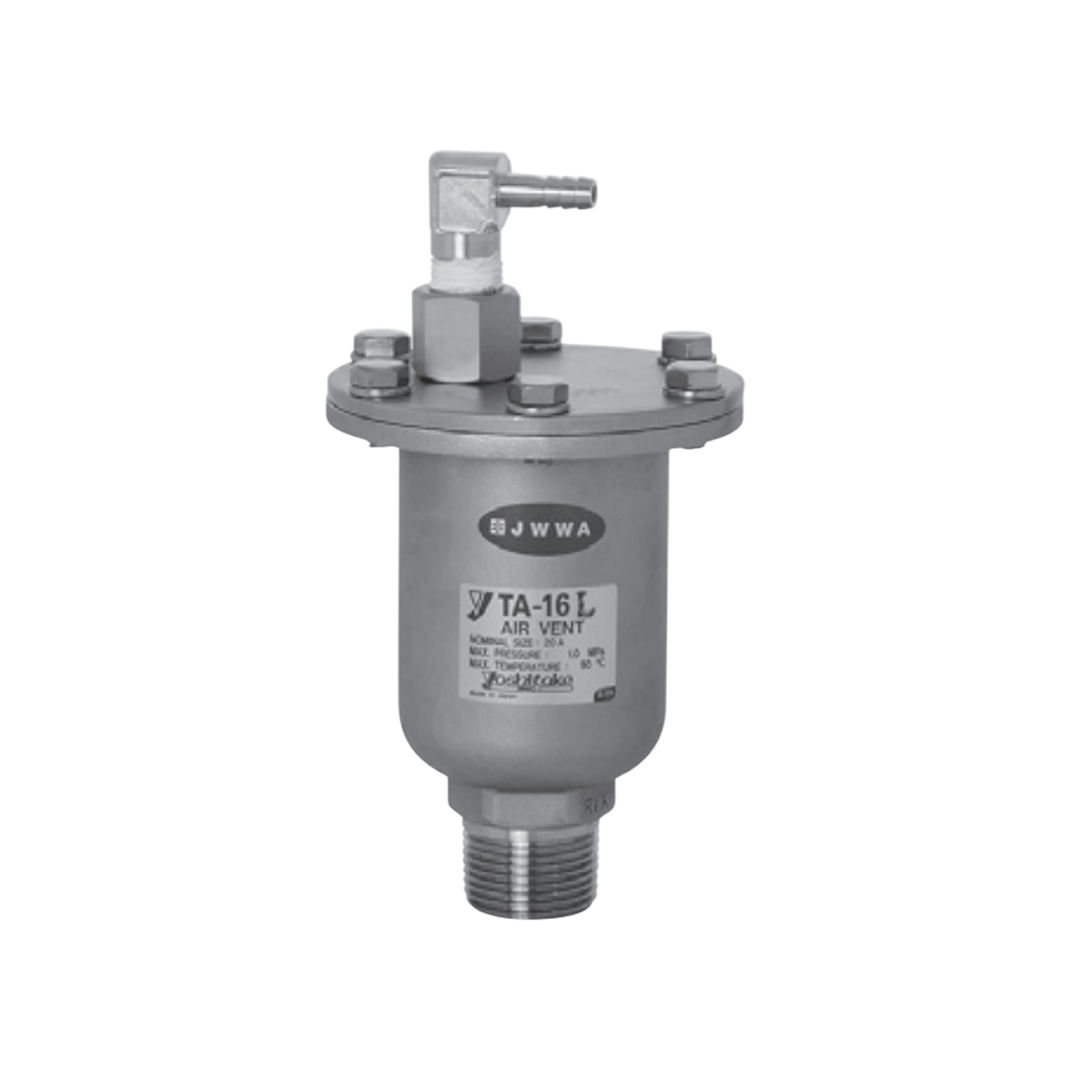

Air Vent Valve Yoshitake 3/4 นิ้ว 20A,TA-16L,วาล์วระบายอากาศ
Air Vent Valve Yoshitake 3/4 นิ้ว 20A,TA-16L,วาล์วระบายอากาศ
Yoshitake
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
4,242.61 ฿
Regular price
Sale price
4,242.61 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Air Vent Valve Yoshitake 3/4 นิ้ว 20A,TA-16L,วาล์วระบายอากาศ
Features
- All parts, except for the valve disc, gasket, L-shaped hose joint (TA-16L), are made of stainless steel, offering high resistance to corrosion and durability.
- Wide working pressure range (0.01 to 1.0 MPa) ensures stable exhaust capacity.
- Can be installed in small space because of compact body.
Dimensions (mm) and Weights (kg)
| Nominal size | d | H | Weight |
| 15A | Rc 1/2 | 660 | 139 |
| 20A | Rc 3/4 | 120 | 680 |
| 25A | Rc 1 | 124.5 | 740 |
Specifications
| Model | TA-6L |
| Application | Cold and hot water |
| Working pressure | 0.01-1.0 MPa |
| Maximum temperature | 90˚C |
| Material | Body, cover : Stainless stee |
| Valve disc : FKM | |
| Gasket : FKM | |
| Float : Stainless steel | |
| Connection | Inlet : JIS R (P.V common core) |
| Outlet : φ6 (Hose bore) |
