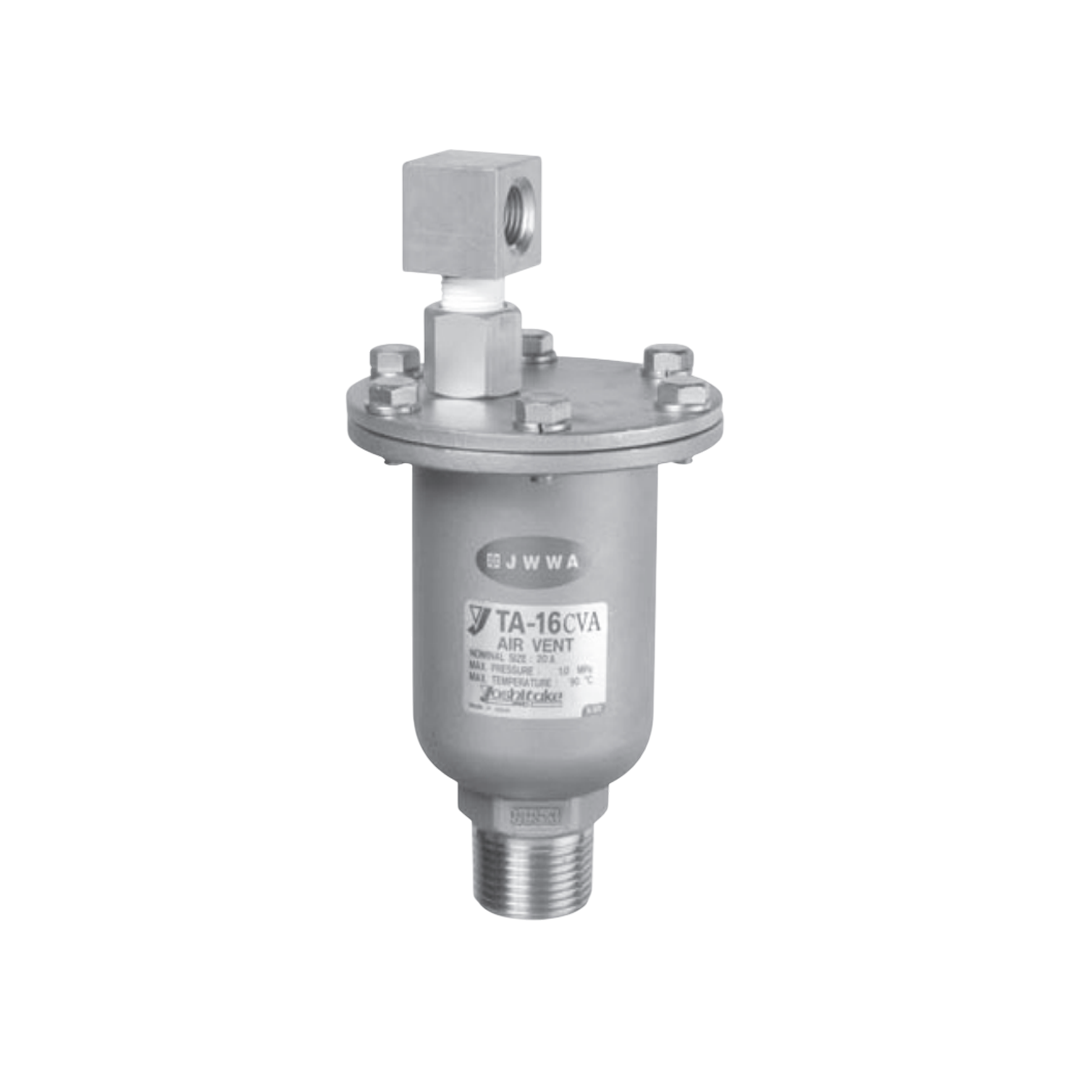

Air Vent Valve Yoshitake 1/2 inch 15A,TA-16CVA,air vent valve

Air Vent Valve Yoshitake 1/2 inch 15A,TA-16CVA,air vent valve

5,028.97 ฿
5,028.97 ฿
Sale Sold out

YOSHITAKE

รายละเอียด Air Vent Valve Yoshitake 1/2 inch 15A,TA-16CVA,air vent valve

Features

  • All parts, except for the valve disc, gasket, check valve, check valve joint, are made of stainless steel, offering high resistance to corrosion and durability.
  • Wide working pressure range (0.01 to 1.0 MPa) ensures stable exhaust capacity.
  • Can be installed in small space because of compact body.
  • Outstanding sealability offered by fluororubber valve disc.
Chain sprocket with KANA hub, size 40

Dimensions (mm) and Weights (kg)

Nominal size d H1 H Weight Weight
15A Rc 1/2 135.5 146 720
20A Rc 3/4 137.5 148 740
25A Rc 1 142 152.5 800

Specifications

Model TA-16CVA
Application Cold and hot water
Working pressure 0.01-1.0 MPa
Closing pressure of check valve -0.005 MPa
Maximum temperature 90°C
Material Body, cover : Stainless stee
Valve disc : FKM
Gasket : FKM
Float : Stainless steel
Connection Inlet : JIS R (PV common core)
Outlet : JIS Rc screwed
