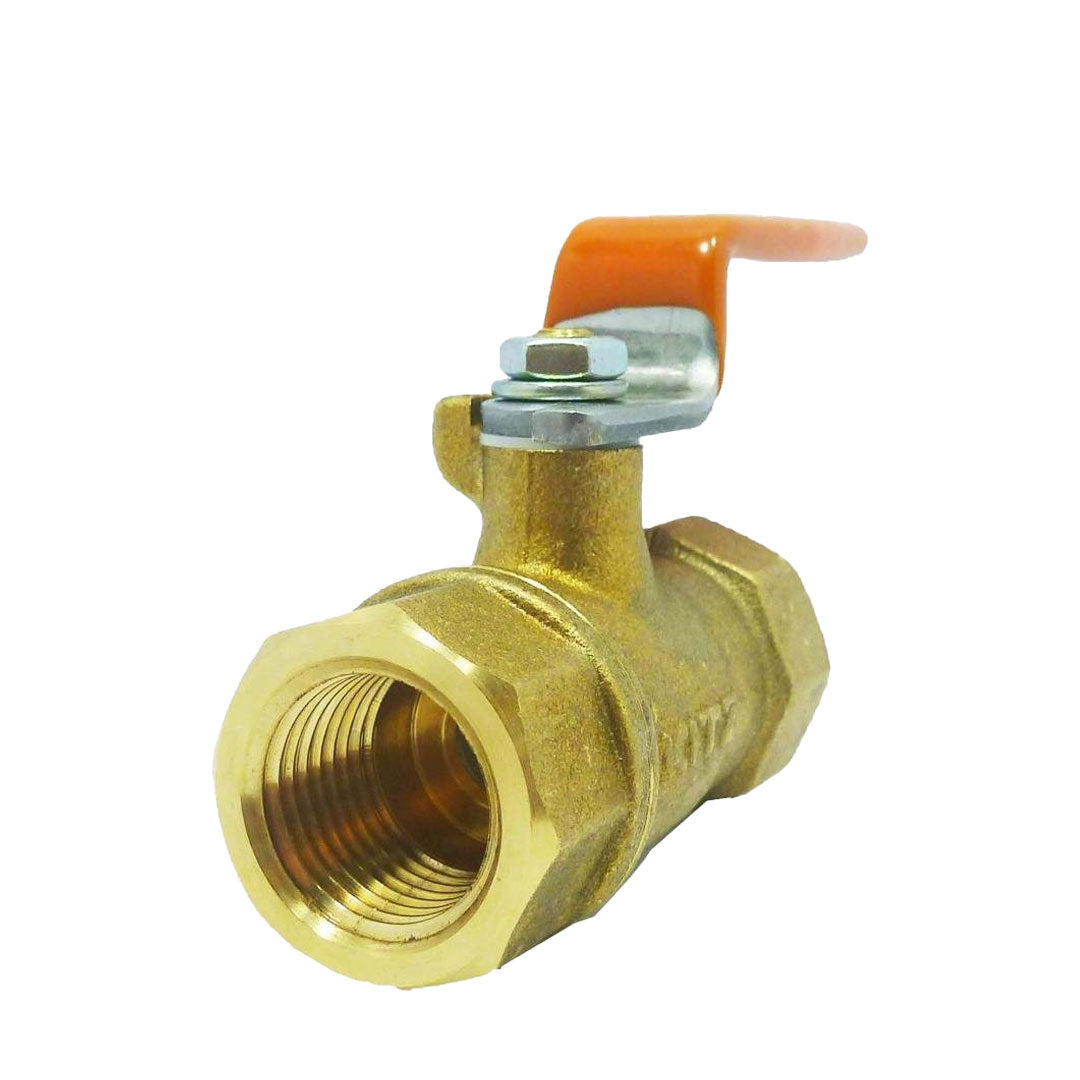

Brass ball valve KITZ 1/4 inch ( 8 mm. ) Model T (Ball Valves KITZ)

KITZ Ball Valve Model: T

KITZ ball valve model TK is a high pressure brass threaded ball valve suitable for use in water pipe systems, gas pipes and general work.

WOG non-shock 2.8 MPa (400 psi),WOG 150°C 0.7 MPa (100 psi)

Ball valve size Kitz model T

Ball valve size Kitz model T

Nominal size	NPS	1/4 inch
	DN	8 mm.
L		50 mm.
H		45 mm.
D		60 mm.

material

Parts	Material
valve body	Brass
body cover	Brass
valve core	Dezincification resistant brass
top cover	Brass
ball cushion	PTFE
Leak-proof rubber ring	FKM
