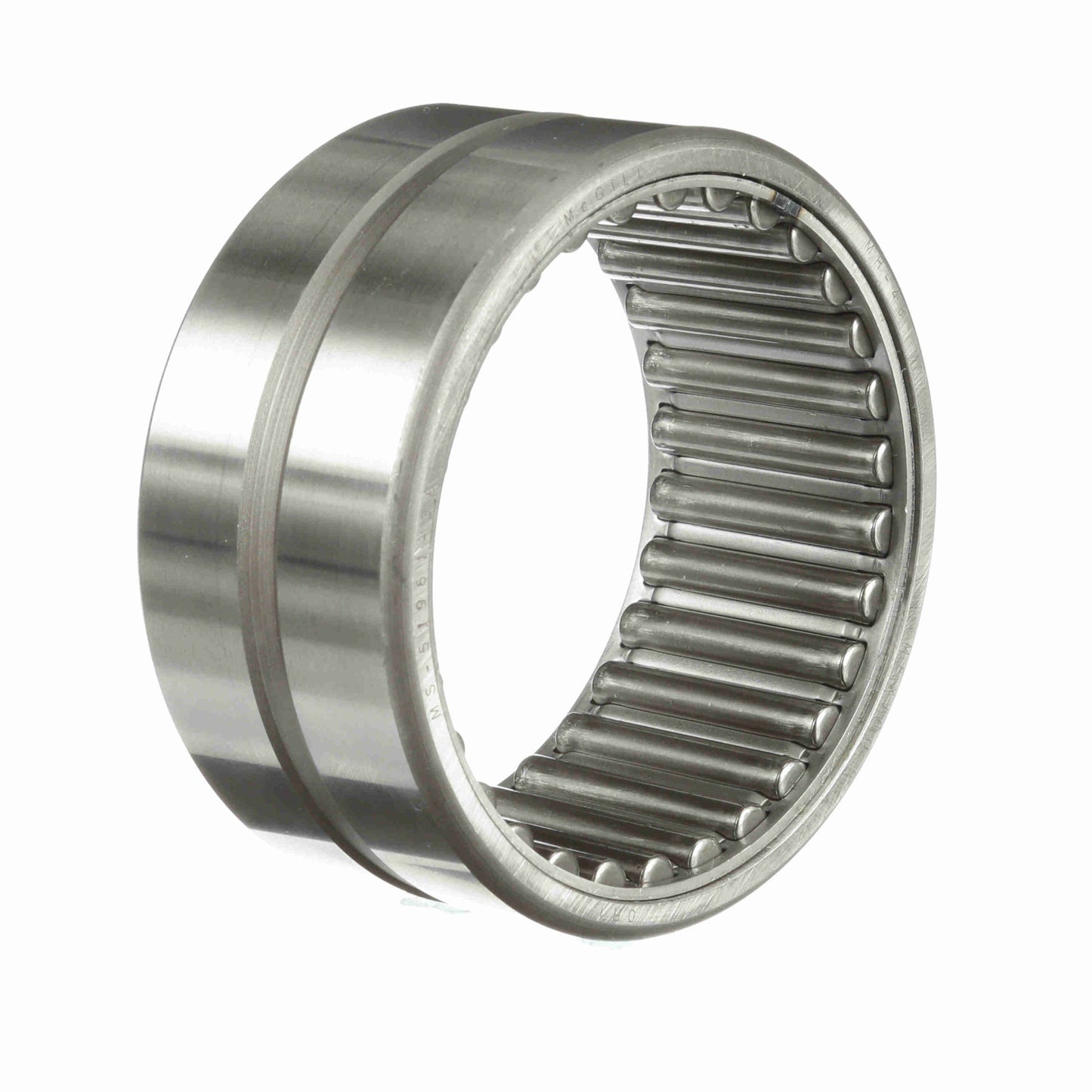

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 48
General Specifications
| UPC: | 726166067984 | Weight: | 1.49 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.9 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Bore Size - Inch: | 3 in |
| Hole Diameter: | 0.125 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 3.75 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Dynamic Load Rating: | 30,300 | Speed (Max) Grease: | 2,000 |
| Platform: | Cagerol Bearing | Sealed: | None |
| Speed (Max) Oil: | 4,000 | Duplexing: | No |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 63,400 lb |
| Standard Met: | ABMA, ISO | Operating Temperature Range: | -20 to 250 °F |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 39, MI 40 |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
