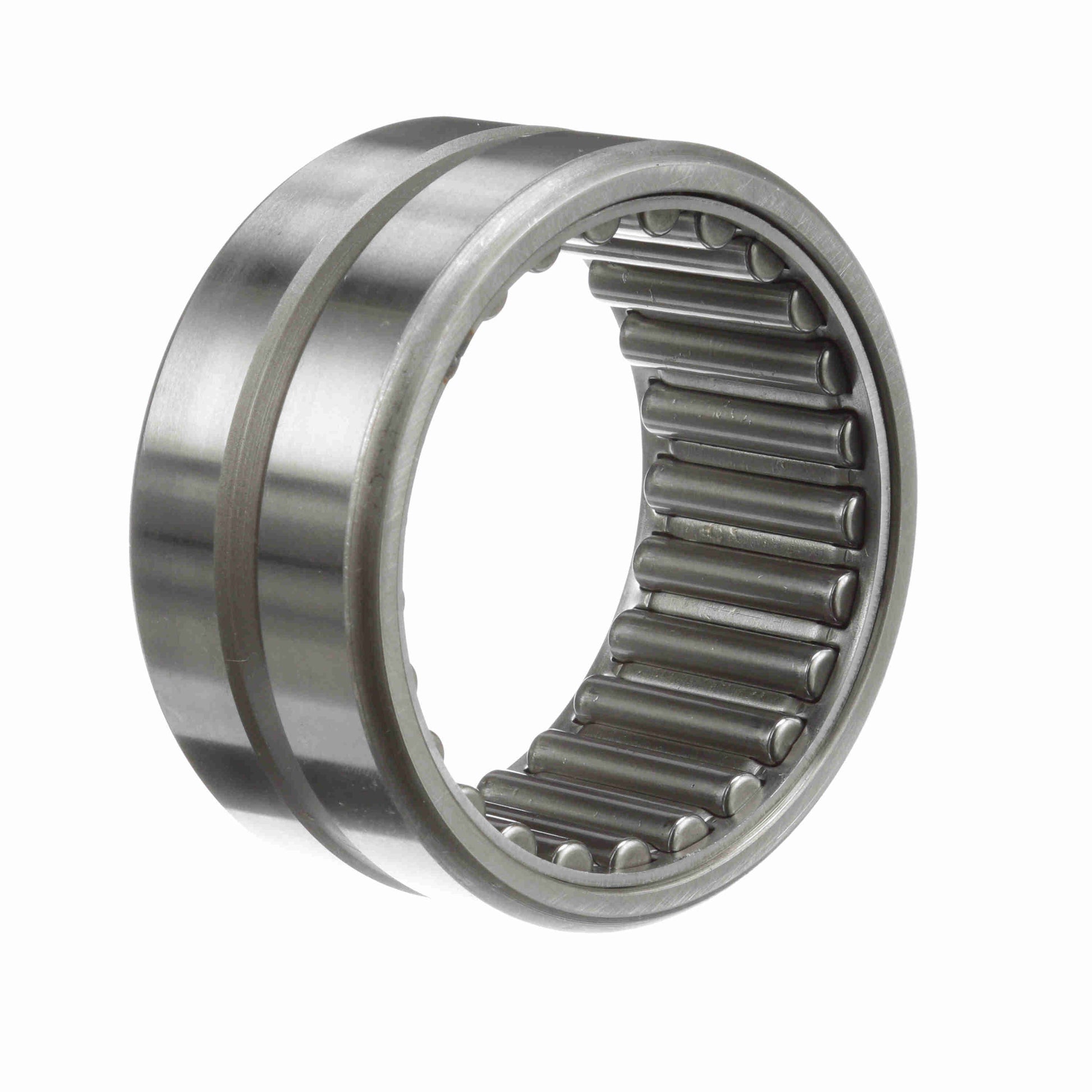

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 40 N
General Specifications
| UPC: | 726166067700 | Weight: | 1.06 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.5 | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3.25 in | Housing & Shaft Fillet (in): | 0.08 in |
| Bore Size - Inch: | 2.5000 in |
Technical Specifications
| Series: | Narrow | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Radial Clearance: | Normal | Misalignment: | No |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Number of Rows: | 1 | Bore Type: | Straight |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Speed (Max) Oil: | 4,800 | Speed (Max) Grease: | 2,400 |
| Dynamic Load Rating: | 23,400 | Sealed: | None |
| Static Load Rating (lb): | 42,900 lb | Duplexing: | No |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 32 N |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
