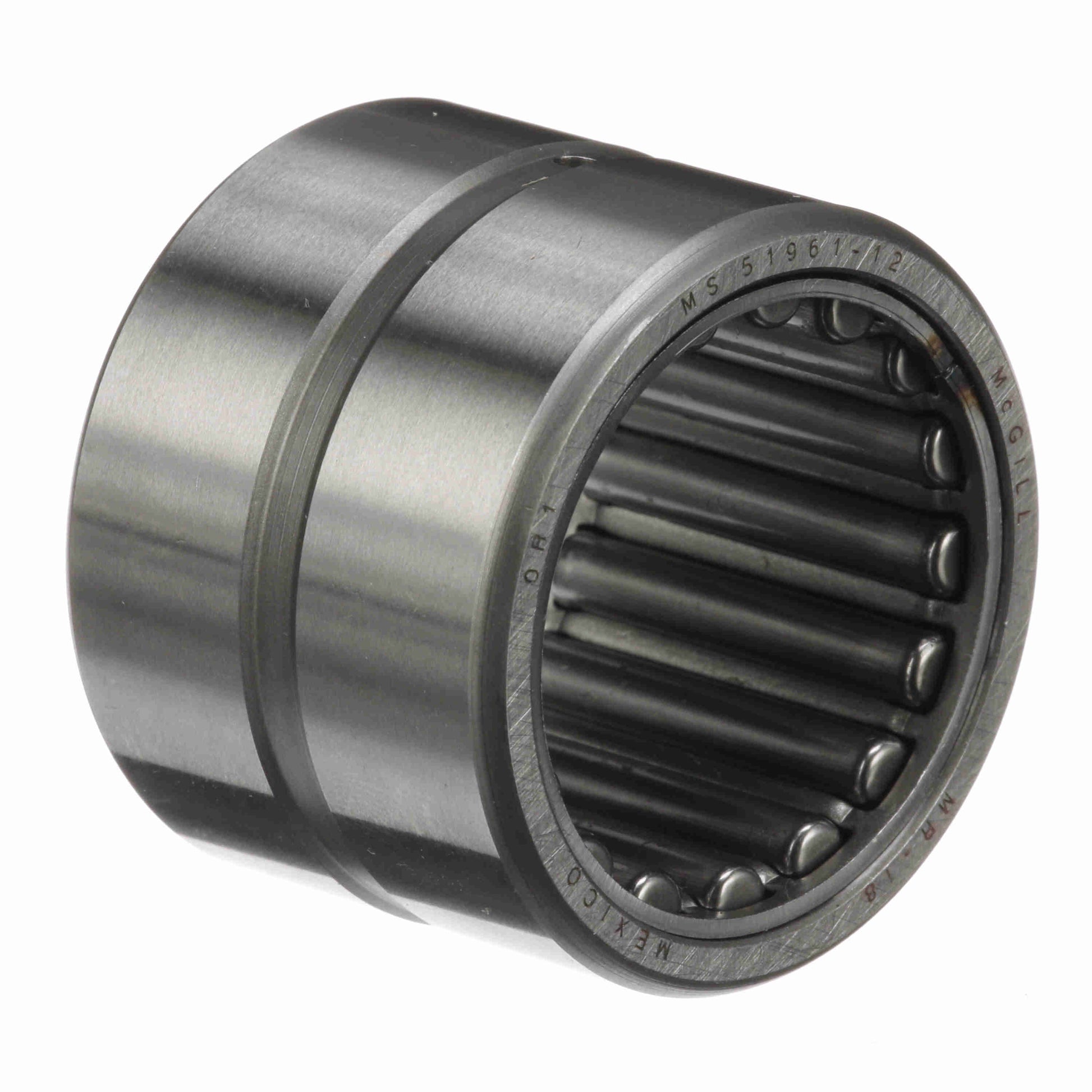

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 18
General Specifications
| UPC: | 726166065577 | Weight: | 0.29 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Outside Diameter - Inch: | 1.625 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.094 |
| Bore Size - Inch: | 1.1250 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Number of Rows: | 1 |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Misalignment: | No | Seal Type: | Unsealed |
| Dynamic Load Rating: | 10,900 | Duplexing: | No |
| Static Load Rating (lb): | 16,300 lb | Full Complement/Caged: | Caged |
| Platform: | Cagerol Bearing | Sealed: | None |
| Speed (Max) Grease: | 5,350 | Speed (Max) Oil: | 10,700 |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Related Inner Ring: | MI 14 |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | Yes |
