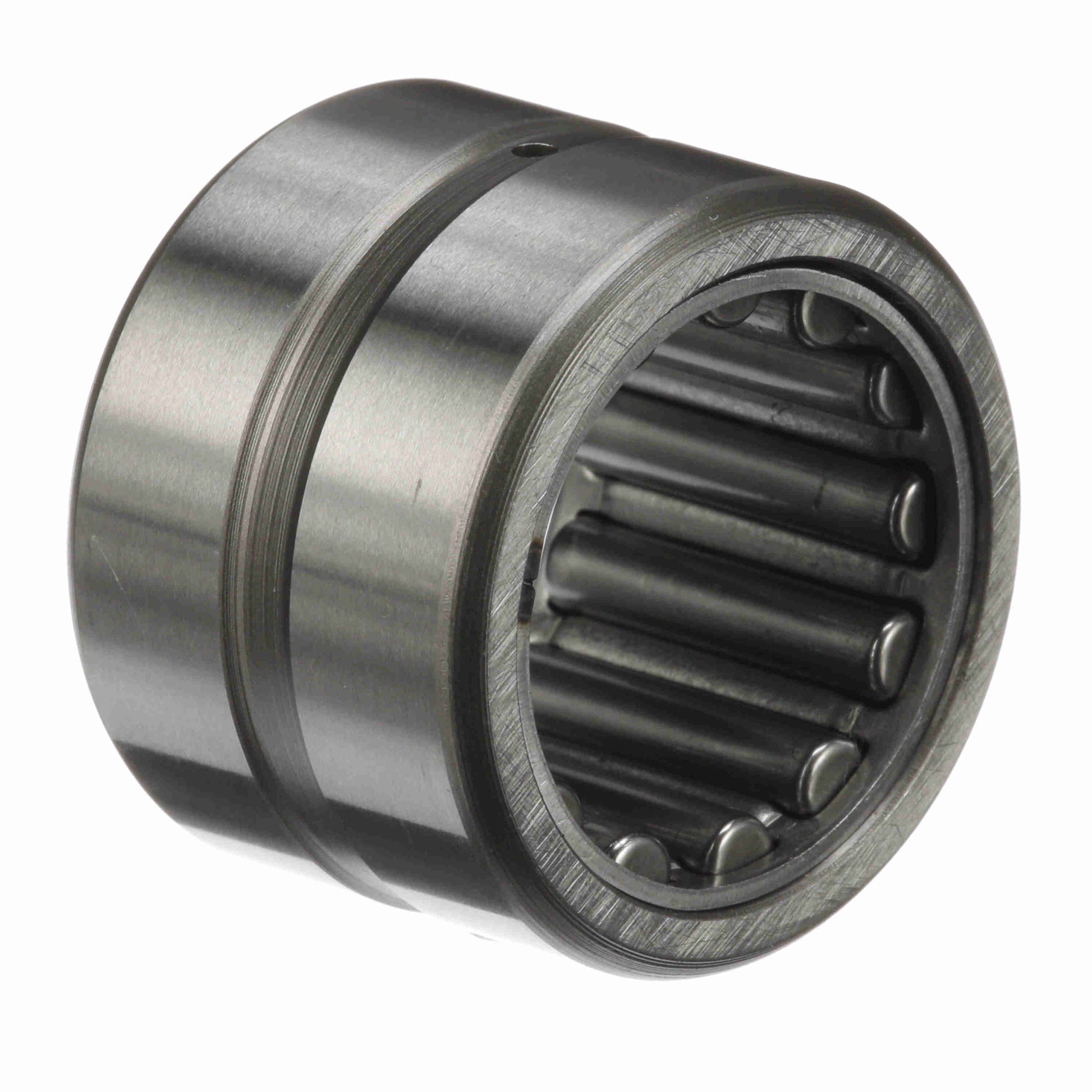

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 14
General Specifications
| UPC: | 726166065133 | Weight: | 0.19 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Bore Size - Inch: | 0.8750 in |
| Hole Diameter: | 0.079 | Housing & Shaft Fillet (in): | 0.04 in |
| Outside Diameter - Inch: | 1.375 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Number of Rows: | 1 | Misalignment: | No |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Speed (Max) Oil: | 13,750 | Duplexing: | No |
| Sealed: | None | Static Load Rating (lb): | 9,000 lb |
| Dynamic Load Rating: | 7,240 | Speed (Max) Grease: | 6,875 |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Flanges: | No Flanges | Related Inner Ring: | MI 10 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
