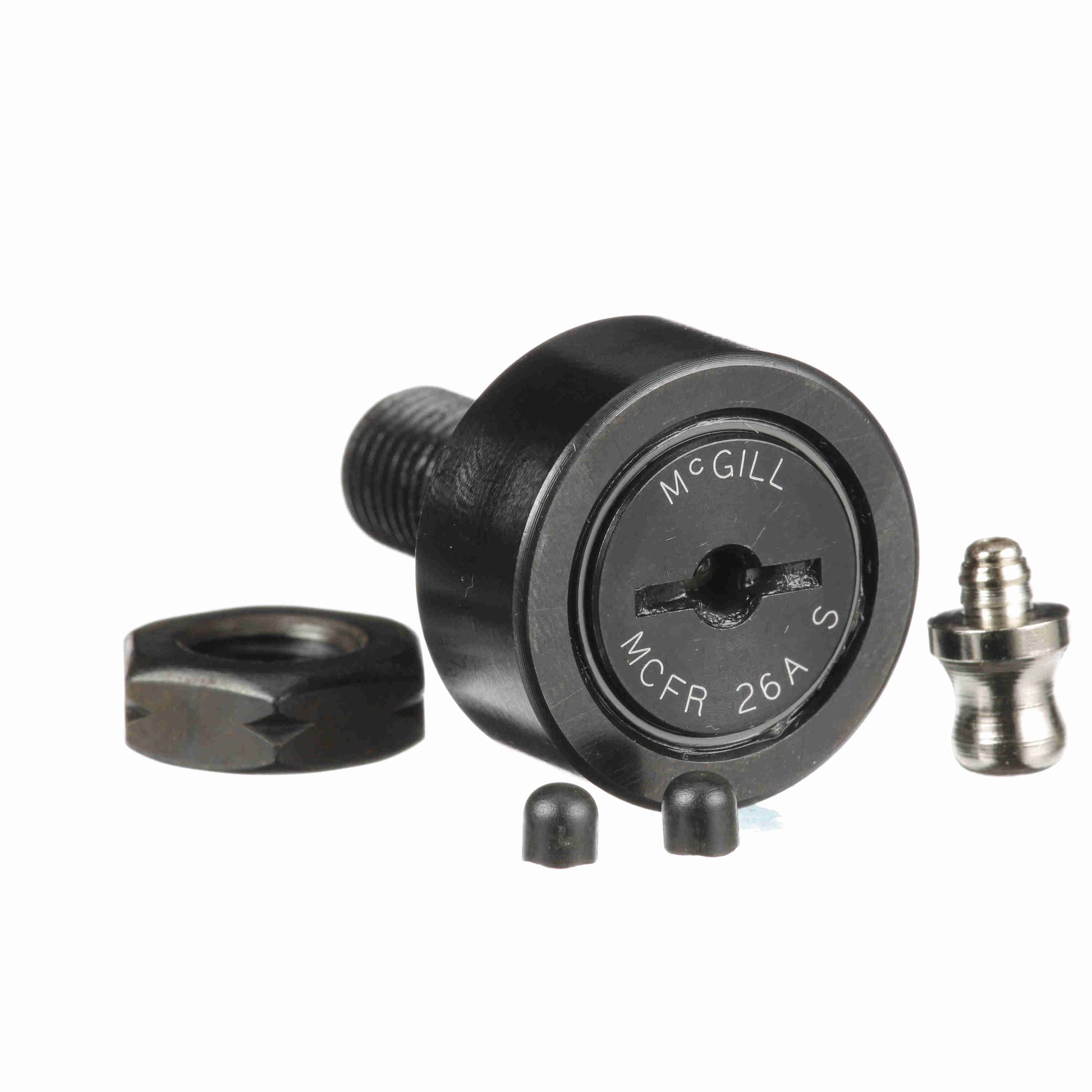

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 26A S
General Specifications
| UPC: | 726166017958 | Weight: | 0.18 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M10x1.25 | Roller Width - mm: | 12 mm |
| Minimum Thread Length: | 13 | Reamed Hole - mm: | 4 mm |
| Overall Length - mm: | 36 mm | Lubrication Fitting Size - Metric: | 4 |
| Roller Diameter - mm: | 26 mm | Stud Diameter - mm: | 10 mm |
| Stud Length - mm: | 23 mm |
Technical Specifications
| Hex/Slot: | Screwdriver Slot | Rolling Element: | Needle Roller - Caged |
| Limiting Speed: | 13,500 | Sealing: | Sealed |
| Dynamic Radial Rating: | 1,169 | Adjustment: | None |
| Dynamic Track Roller Load Rating (N): | 5,200 N | O.D. Configuration: | Crowned |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Industry Standard: | JIS |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 6,050 |
| Dynamic Load Rating - N: | 6,280 | Platform: | CAMROL® |
| Clamping Torque - Nm: | 15 | Static Track Roller Load Rating: | 6,050 |
| Roller Shape: | Crowned |
