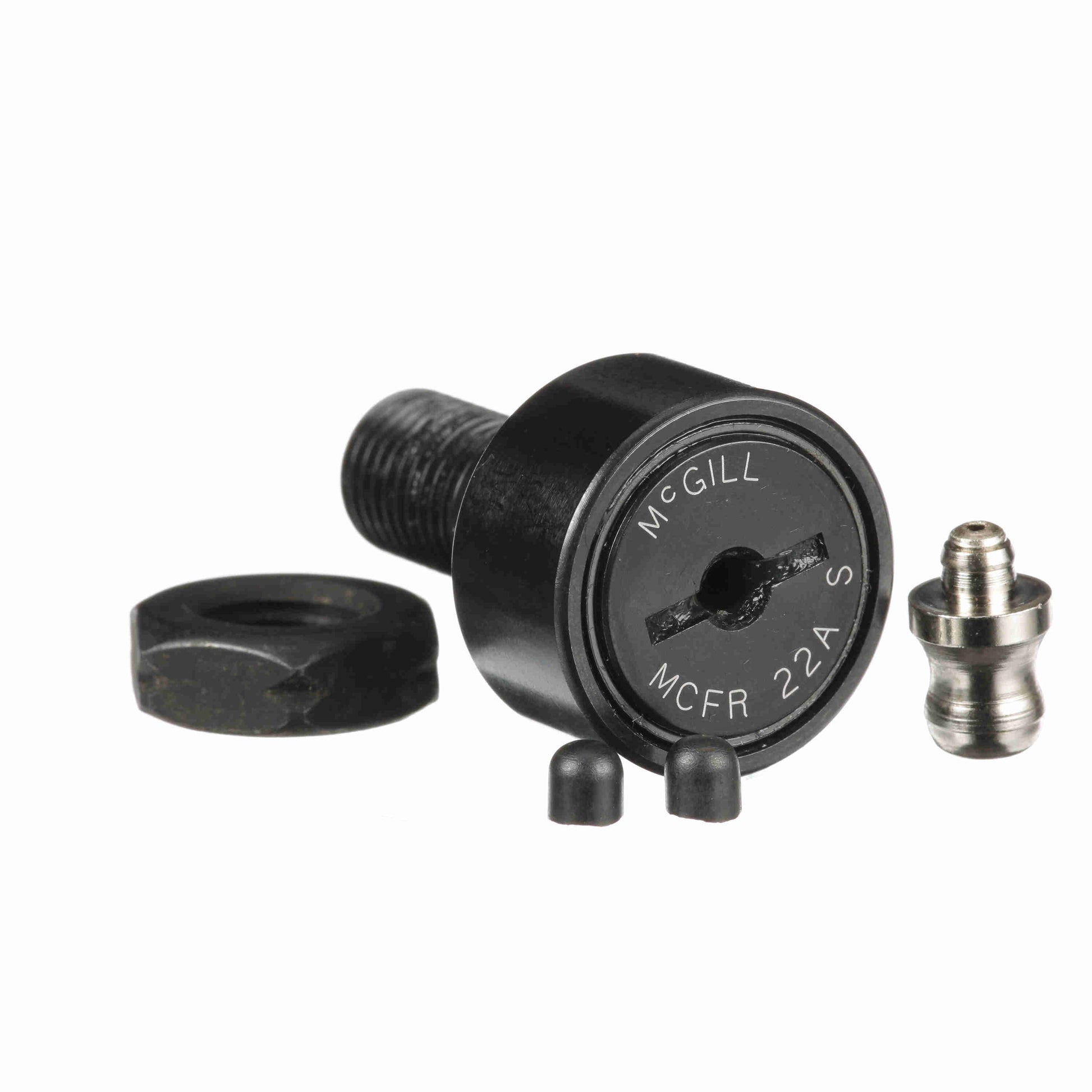

McGill Bearing MCFR 22A S

McGill Bearing MCFR 22A S

4,924.00 ฿
4,924.00 ฿
Sale Sold out

McGill

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

รายละเอียด McGill Bearing MCFR 22A S

View full details

McGill CAMROL® Bearings Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 22A S

  • Metric stud type cam follower
  • Crowned outside diameter
  • Retained (caged) needle rolling elements
  • Slot hole
  • LUBRI-DISC® seal
  • Jam nuts and lube fitting included

    • General Specifications

    UPC: 726166016654 Weight: 0.15 LB
    Packaged Length: 1.4 Inches Packaged Width: 1.2 Inches
    Packaged Height: 1.6 Inches Country of Origin: China

    Dimensions

    Threads: M10x1.25 Roller Width-mm: 12 mm
    Overall Length-mm: 36 mm Reamed Hole-mm: 4 mm
    Stud Length-mm: 23 mm Lubrication Fitting Size - Metric: 4
    Roller Diameter-mm: 22 mm Stud Diameter - mm: 10 mm
    Minimum Thread Length: 13

    Technical Specifications

    Sealing: Sealed Limiting Speed: 13,500
    Adjustments: none OD Configuration: Crowned
    Hex/Slot: Screwdriver Slot Dynamic Track Roller Load Rating (N): 5,200 N.
    Rolling Element: Needle Roller-Caged Dynamic Radial Rating: 1,169
    Relubricated: yes Material: Bearing Steel, Black Oxide Finish
    Stud Type: Standard Stud Static Track Roller Load Rating: 6,050
    Platform: CAMROL® Tolerance Class: P0 Equivalent
    Dynamic Load Rating - N: 6,280 Clamping Torque-Nm: 15
    Industry Standard: JIS Static Load Rating: 6,050
    Roller Shape: Crowned
