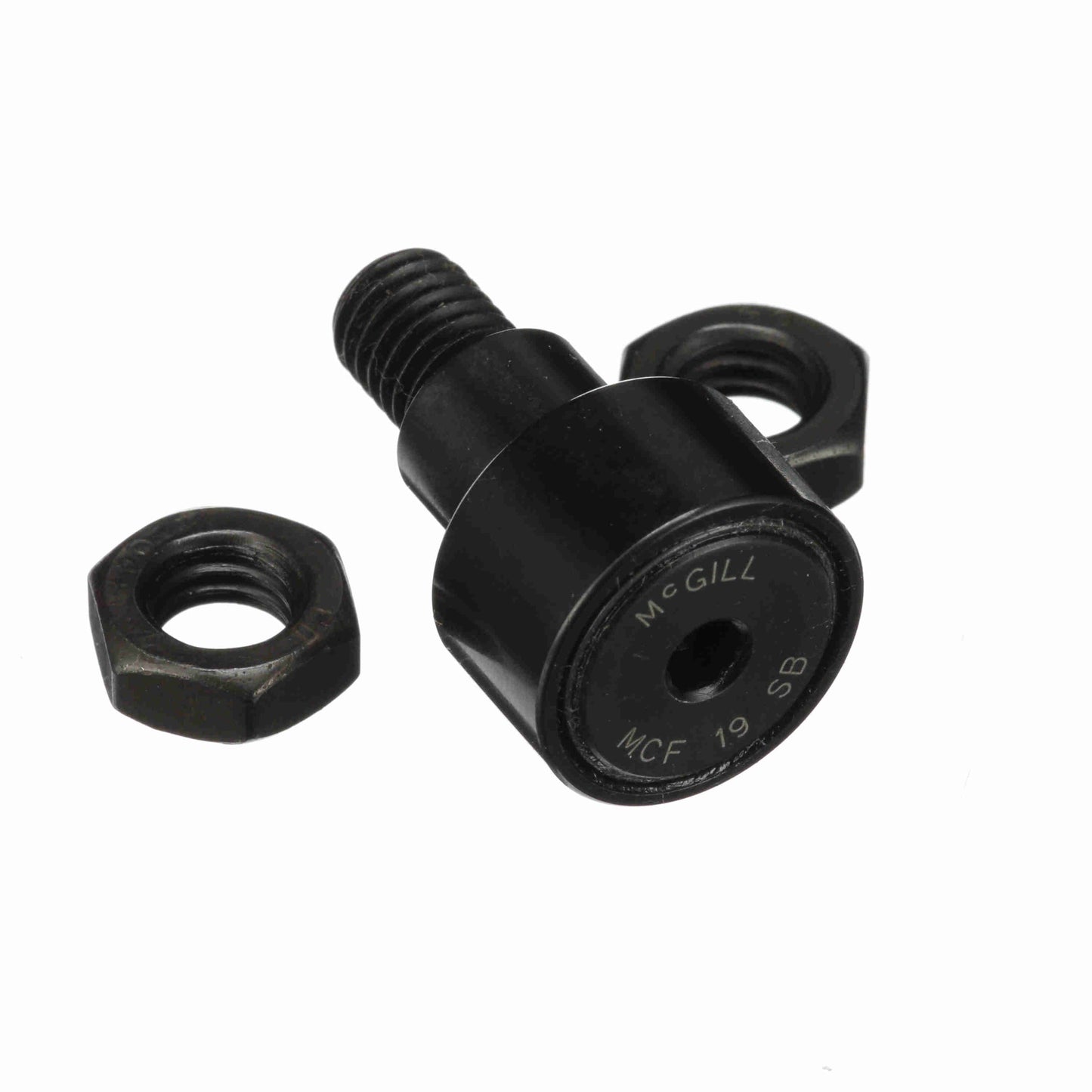

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Hex Hole - Sealed - MCFE 19 SB
General Specifications
| UPC: | 726166015381 | Weight: | 0.07 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
Dimensions
| Threads: | M8x1.25 | Bushing Length - mm: | 9 mm |
| Stud Length - mm: | 20 mm | Stud Diameter - mm: | 8 mm |
| Minimum Thread Length: | 11 | Lubrication Fitting Size - Metric: | 4 |
| Hex Socket - mm: | 4 mm | Roller Diameter - mm: | 19 mm |
| Bushing Diameter - mm: | 11 mm | Roller Width - mm: | 11 mm |
| Eccentricity - mm: | 0.5 mm | Overall Length - mm: | 32 mm |
| Reamed Hole - mm: | 4 mm |
Technical Specifications
| Limiting Speed: | 10,500 | Dynamic Track Roller Load Rating (N): | 6,670 N |
| Hex/Slot: | Hex Hole | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 1,500 |
| O.D. Configuration: | Crowned | Adjustment: | Eccentric Bushing |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 5,100 | Platform: | CAMROL® |
| Static Track Roller Load Rating: | 5,100 | Clamping Torque - Nm: | 8 |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Crowned |
| Dynamic Load Rating - N: | 8,040 | Industry Standard: | DIN / JIS |
| Stud Type: | Standard Stud with Eccentric Bushing |
