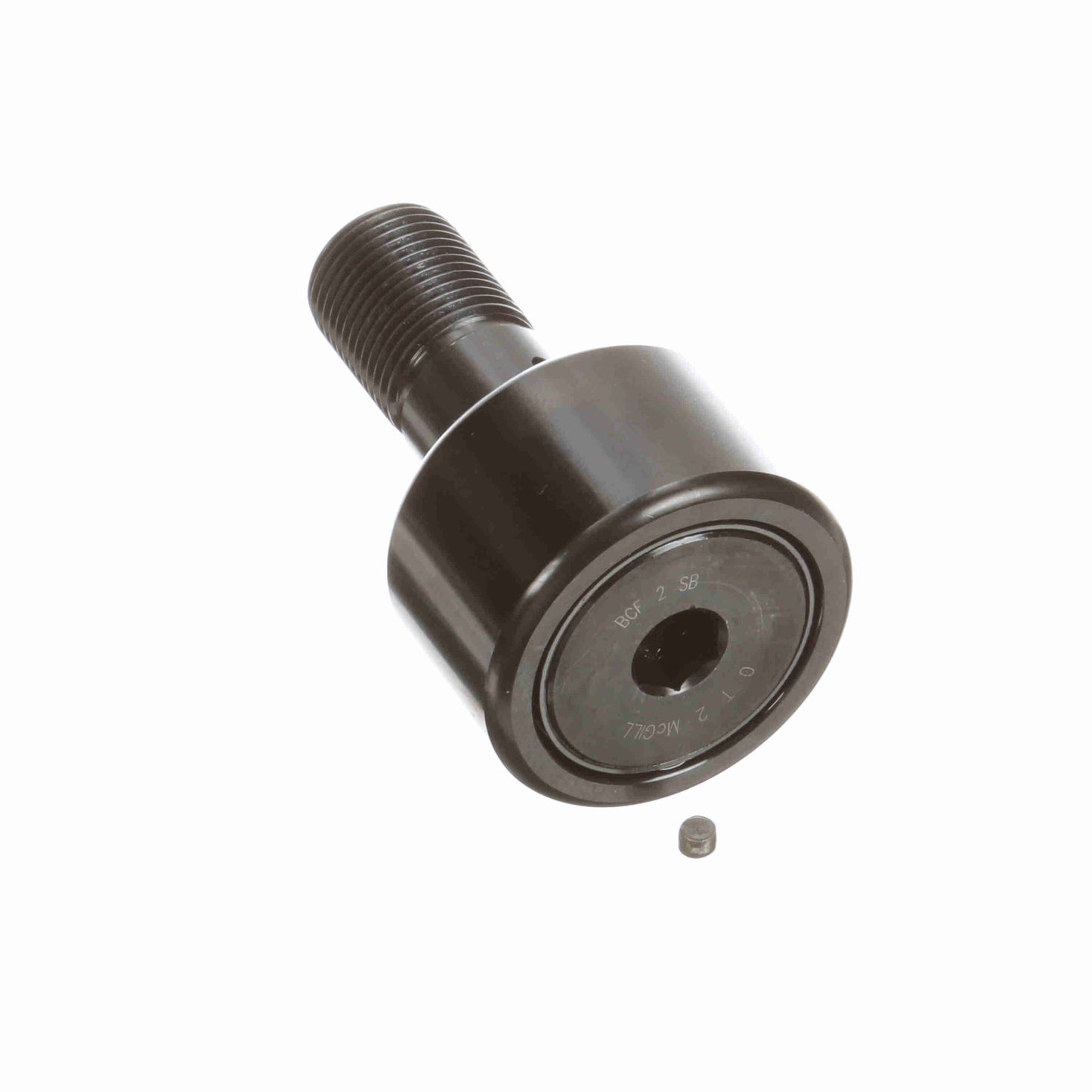

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Cam Follower - Stud Mount Roller - Hex Hole - Sealed - BCF 2 SB
General Specifications
| UPC: | 726166037826 | Weight: | 1.22 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 3.43 Inches | HTC: | 8482.80.0080 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 7/8-14 | Minimum Thread Length: | 1 |
| Oil Hole Center - Inch: | 0.5 | Roller Width - Inch: | 1.25 |
| Lubrication Fitting Size - Inch: | 0.1875 | Stud Diameter - Inch: | 0.875 |
| Hex Socket - Inch: | 0.4375 | Roller Diameter - Inch: | 2 |
| Lubrication Fitting Size - Metric: | 0.1875 | Stud Length - Inch: | 2 |
Technical Specifications
| Sealing: | Sealed | Adjustment: | None |
| O.D. Configuration: | Cylindrical | Hex/Slot: | Hex Hole |
| Rolling Element: | Selflube Bushing | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Clamping Torque - in-lbf: | 1,500 |
| Lubrication Hole Location: | Stud side |
