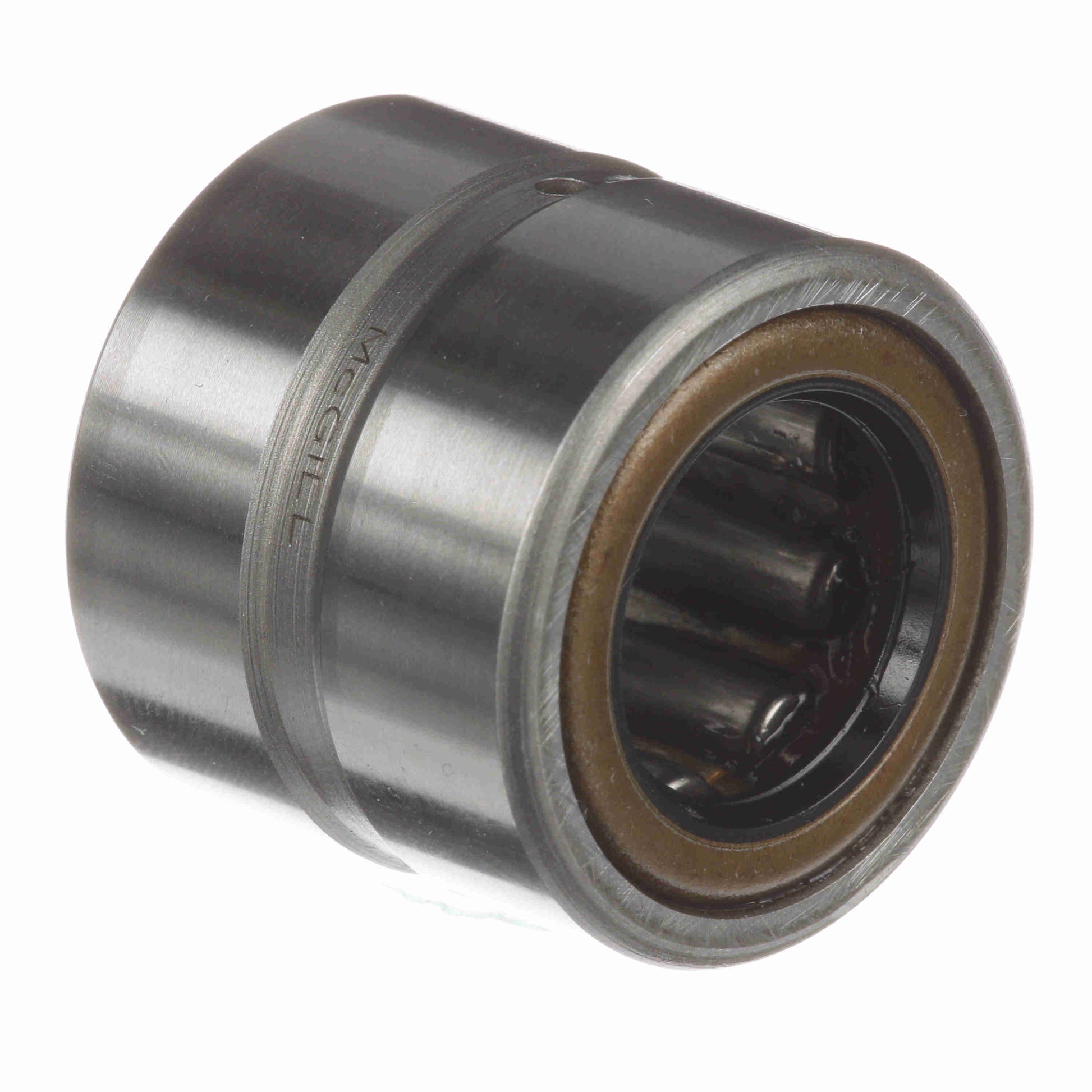

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 10 S
General Specifications
| UPC: | 726166064808 | Weight: | 0.15 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1 | Housing & Shaft Fillet (in): | 0.025 in |
| Bore Size - Inch: | 0.6250 in | Outside Diameter - Inch: | 1.125 in |
| Hole Diameter: | 0.079 |
Technical Specifications
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
| Series: | Standard | Cage Material: | Steel |
| Misalignment: | No | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Duplexing: | No | Dynamic Load Rating: | 4,320 |
| Static Load Rating (lb): | 4,300 lb | Speed (Max) Oil: | 6,100 |
| Speed (Max) Grease: | 3,050 | Sealed: | Sealed - One Side |
| Related Inner Ring: | MI 6 | Flanges: | No flange |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Precision Rating: | RBEC-1 | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Separable: | Nonseparable |
| Retainer: | Yes |
