• โซลินอยด์วาล์ว FESTO MS6-EE-1/2-10V24
1 1

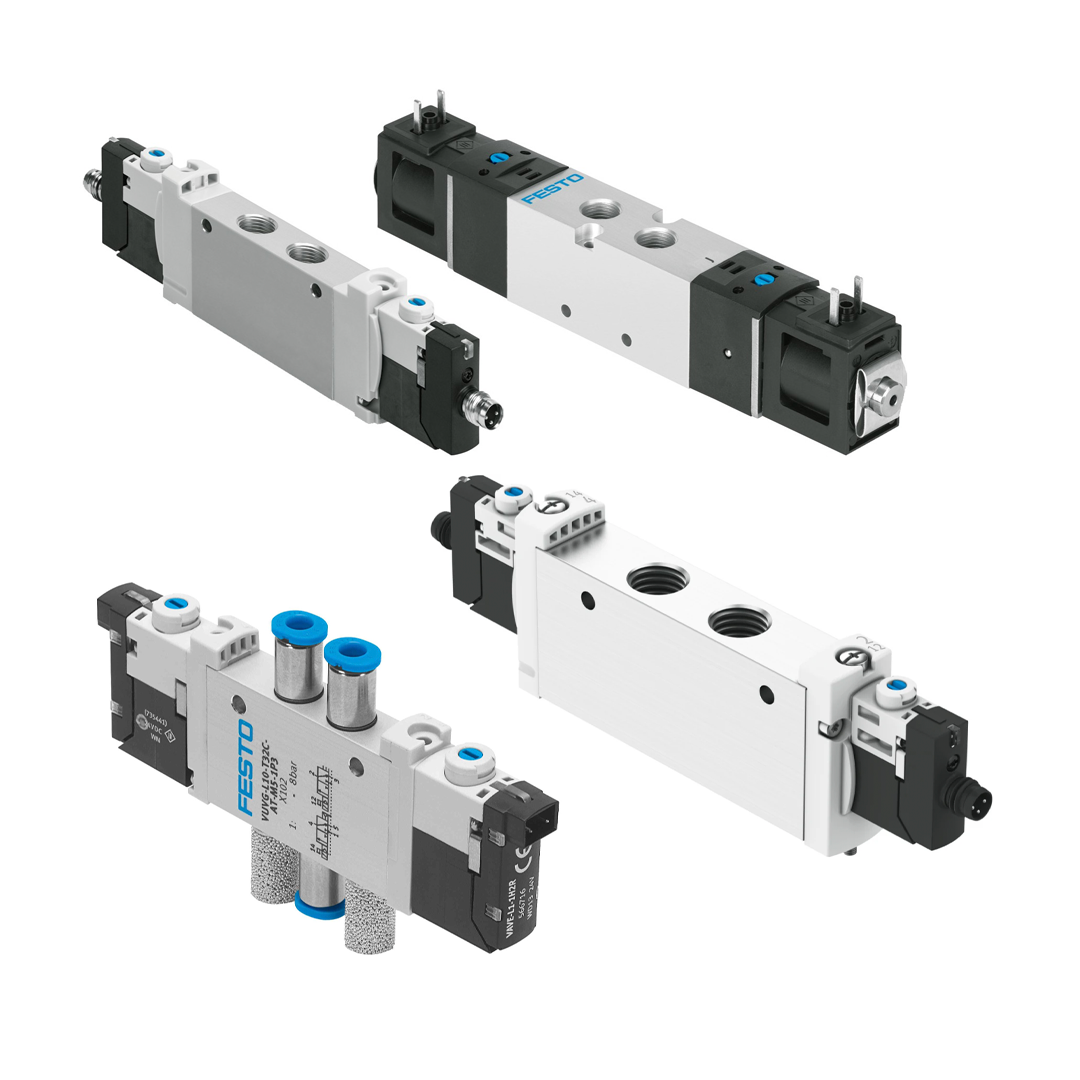

โซลินอยด์วาล์ว FESTO MS6-EE-1/2-10V24

โซลินอยด์วาล์ว FESTO MS6-EE-1/2-10V24

FESTO

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
5,464.00 ฿
5,464.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด โซลินอยด์วาล์ว FESTO MS6-EE-1/2-10V24

Specifications
Manufacturer Series MS6
Mounting Style Bracket
Function 44622
Connection Port Thread G 1/2
Actuation Type Electrical
Body Material Aluminium
Maximum Flow Rate 7000L/min
Solenoid Voltage 24V dc
Solenoid Power Consumption 2.5W
Minimum Operating Pressure 4bar
Minimum Operating Temperature -10°C
Number of Ports 3
Configuration 2-Position, 3 Port
Maximum Operating Temperature +50°C
Thread Size 1/2in
Maximum Operating Pressure 10bar
Number of Positions 2
Thread Standard G
Special Features Lubricated Operation Possible
Model Number p 542582
Manufacturer Series MS6
Mounting Style Bracket
Function 44622
Connection Port Thread G 1/2
Actuation Type Electrical
Body Material Aluminium
Maximum Flow Rate 7000L/min
Solenoid Voltage 24V dc
Solenoid Power Consumption 2.5W
Minimum Operating Pressure 4bar
Minimum Operating Temperature -10°C
Maximum Operating Pressure 10bar
Thread Size 1/2in
Maximum Operating Temperature +50°C
Number of Ports 3
Number of Positions 2
Special Features Lubricated Operation Possible
Thread Standard G
Model Number p 542582
ดูรายละเอียดทั้งหมด
