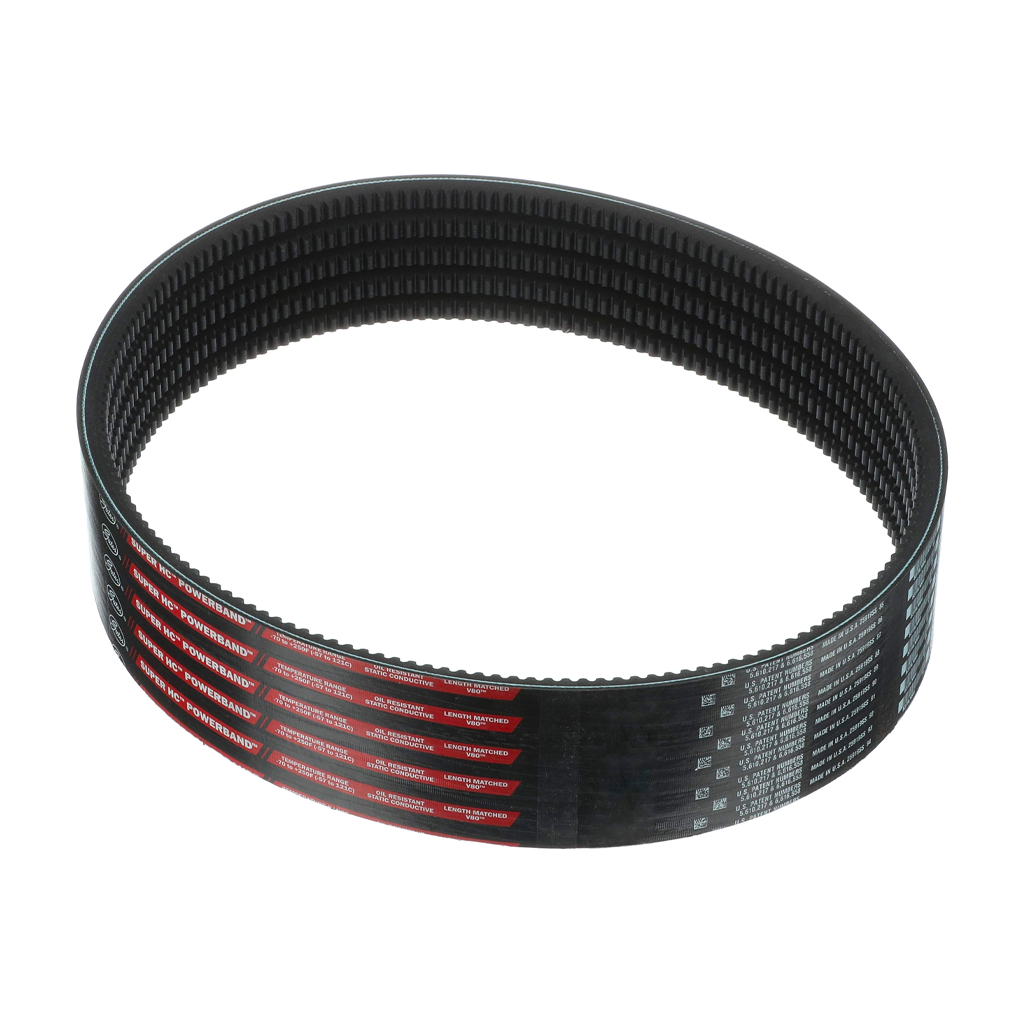

สายพาน GATES Super HC PowerBand 5/5VX750

สายพาน GATES Super HC PowerBand 5/5VX750

Gates

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
14,885.00 ฿
14,885.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด สายพาน GATES Super HC PowerBand 5/5VX750

  • Flex-bonded tensile cords are vulcanized as one solid unitmaking the belt highly resistant to tensile and flexingforces, fatigue and shock loads
  • Precision-ground straight sidewalls give a uniform wedgingaction and ensure the belt fts correctly in the pulleygrooves, which improves belt life and reduces expensivemaintenance time
  • Patented Ethylene compound and optimized notches moldedinto the belt during manufacturing increase flexibility andtransmission efficiency, which allows for a more compactand highly economical drive design by reducing size ofpulleys, bearings, guards and mounts
  • Recommended for use on all industrial heavy-duty, narrowsection V-belt drives
  • All sizes meet Gates V80® systemmatching tolerances
  • Meets ARPM/RMA IP-3-2 oil and heat resistant standards andIP-3-3 static conductivity requirements
  • REACH and RoHS 2compliant.

Specifications

Belt Category
Narrow Series - Inch
Section Size
5VX
Number of Sections
5
Outside Length
1902 mm
Cogged/Smooth
Cogged
Belt Style
SUPER HC® MOLDED NOTCH POWERBAND®
Rib Width
0.6250 in
Reinforcing Cord Material
Polyester
Resistance Features
Oil Resistant
Overall Height
0.5469 in
Top Width
86 mm
Effective Length
74.863 in / 1902 mm
Color
Black
Material
Ethylene Elastomeric
Operating Temperature Range
-60 to 250 °F
Standards Met
RMA
Manufacturer UPC Number
072053288223
Weight
6.40 lbs
Manufacturer Catalog Number
5/5VX750
Number of Ribs
5
Description
When your power transmission application needs a high horsepower solution but is constrained by drive weight or physical space, the answer is Super HC Molded Notch belts. Our proprietary ethylene construction process provides a superior combination of ?ex and load-carrying capacity, transmitting up to three times the horsepower versus comparably sized belts. Super HC MN V-belts put more power where high speeds, high speed ratios or small pulley diameters are required, o?ering signifcant benefts over classical section V-belts.
Outside Circumference
75.91 in / 1928 mm
Angle
42
Belt/Slab
Belt
Belt Back Side
Smooth
Belt Inside
Notched
Construction
Bandless
Cord Material
Polyester
Maximum Temperature
+250°F / +121 °C
Minimum Temperature
-60°F / -51 °C
Number of Sides
Single Sided
Package Length
22.5 in
Section
5VX
Static Conductive
No
Thickness
14 mm
Trademark
Super HC™ Molded Notch PowerBand™
Unitset
Yes
Additional Details
Warning: Do not use Gates belts, pulleys, sprockets, hose or couplings on any aircraft propeller or motor drive systems or in-flight accessory drives. Gates products are not designed or intended for aircraft use.
Material
Ethylene Elastomeric
