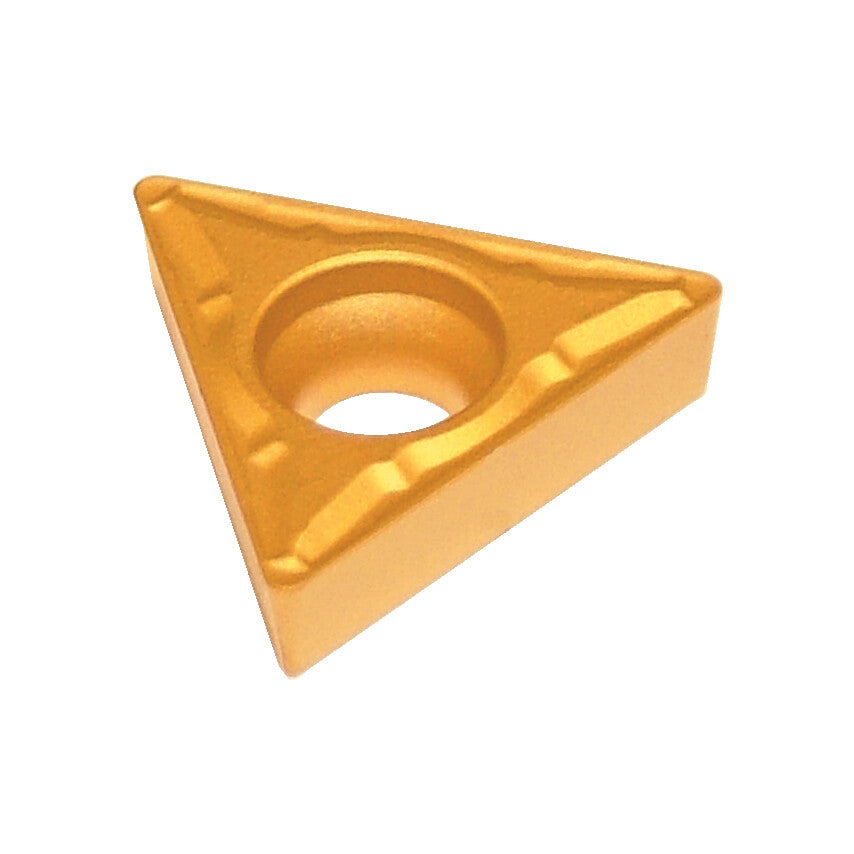

TCMT 16T304-PM INSERT GRADEQX5020 รหัส YML1207140G

Chipbreaker : PM

Clearance Angle : 7 °

Corner Radius : 0.4

Cutting Direction : Neutral

Cutting Edge Length : 16 mm

Finish/Coating : Al2O3/TiCN/TiN

ISO Category Grade : K

ISO Category Grade : M

ISO Category Grade : P

ISO Cut : K10 to K30

ISO Cut : M10 to M30

ISO Cut : P10 to P35

ISO Designation : TCMT 16T304-PM

Inscribed Circle : 9.525 mm

Insert Size : 16T3

Insert Style : TCMT

Manufacturer Grade : QX5020

Material : Carbide

Material Application : Cast Iron

Material Application : Stainless Steel

Material Application : Steel

Pack Quantity : 10

Shape : Triangle

Thickness : 3.97 mm
