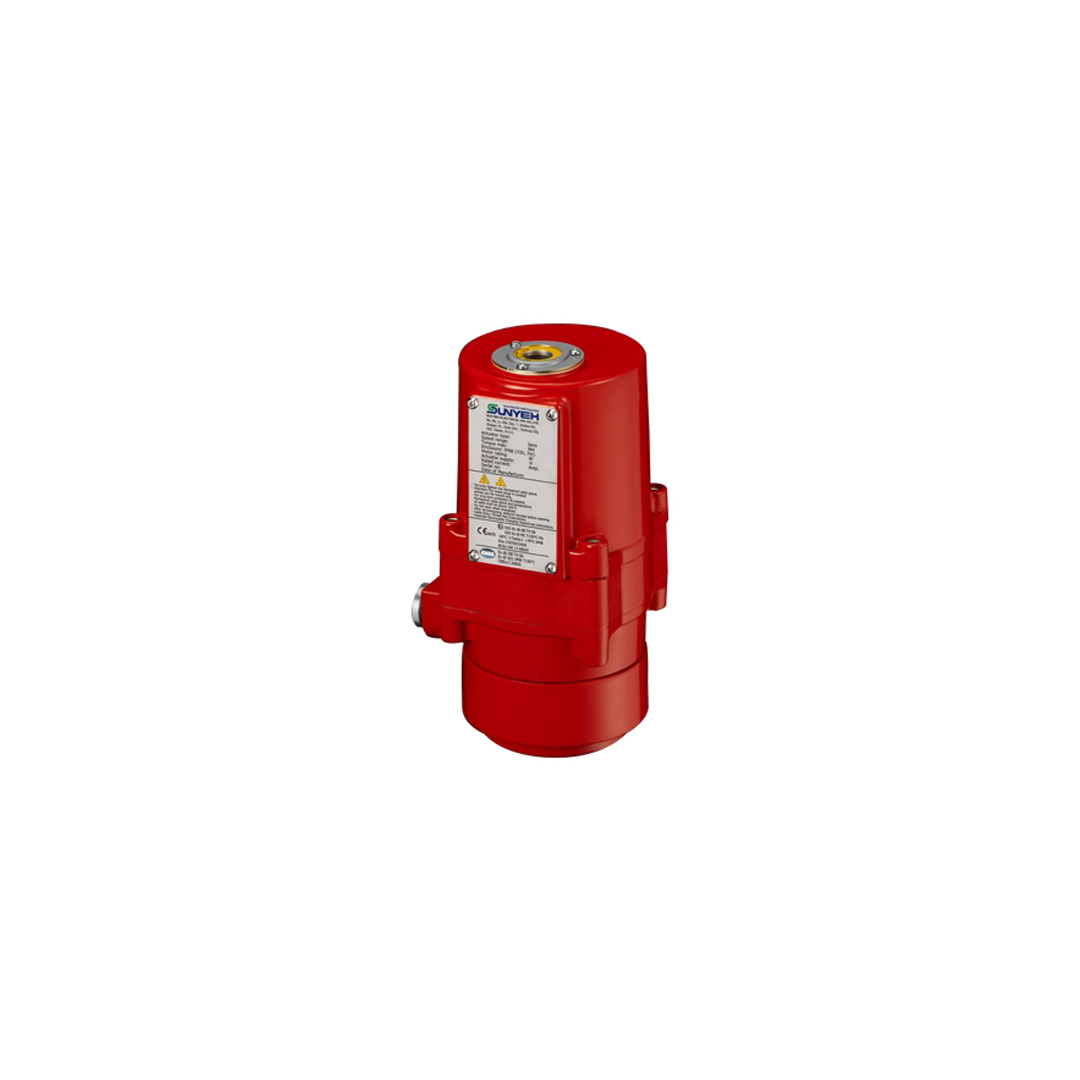

Sunyeh OME-A หัวขับไฟฟ้า

คุณสมบัติเด่นของหัวขับวาล์ว (Electric Actuator) แบรนด์ SUNYEH

Max Torque ：50 Nm/445 in-lb

Motor Power ：10 W

Manual Override ：N/A

Mounting Flange ：ISO 5211 F07

Weight ：4.5 kg/10 lb

• Enclosure
Polyester powder coated aluminum alloy. NEMA type 4X, IP66, IP68 (7m, 72 hrs)
• Motor
Built-in thermal protector prevents motor from overheating and burnout.
• Duty Cycle
Standard：30％ duty cycle Optional：75％ duty cycle
• Control
Standard : On-Off/Floating Optional : Modulating
• Operation Condition
Ambient temperature：-30℃ to +70℃ (-22℉ to +158℉) Relative humidity：30％ to 95％
• Position Indication
Flatted mechanical position indicator on the top of the actuator.
• Manual Override
The manual operation is open-end wrench driven
• Gear Train
High-alloy steel planetary gears are used, and a self-locking function is provided. The gears are lubricated for life with high-temperature grease.
• Conduit Entry
Standard : 1/2” NPT Option : M20, M25
• Voltages
AC/DC 24V AC 110-120 AC 220-240/1-Phase
