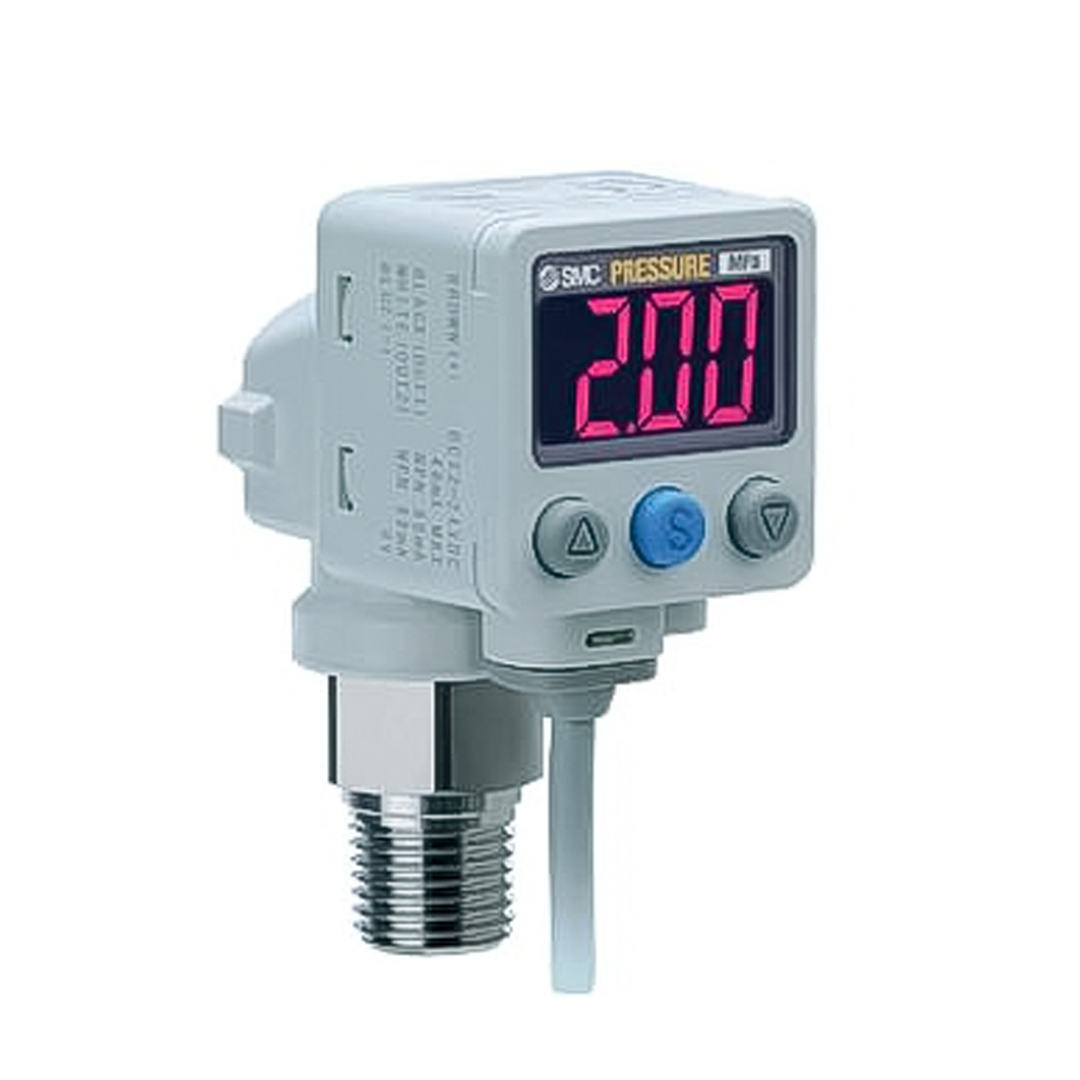

ISE80-02-T SMC Pressure Switch สวิตช์ความดัน
ISE80-02-T SMC Pressure Switch สวิตช์ความดัน
SMC
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
7,248.00 ฿
ราคาปกติ
ราคาโปรโมชัน
7,248.00 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด ISE80-02-T SMC Pressure Switch สวิตช์ความดัน
Series Catalog :
Mechanical data
| SMC Part Description | SWITCH ASSEMBLY |
| SMC Products Line | INSTRUMENTATION |
| SMC Family | ISE40/50/60 PRESSURE SWITCH |
| SMC Family Code | DA |
| SMC Class Description | ISE40/50/60 1/4 PT VERSION |
| Weight | 36742 lb |
Specifications
| Model | ZSE80 (Vacuum pressure) |
ZSE80F (Compound pressure) |
ISE80 (Positive pressure) |
ISE80H (Positive pressure) |
||
|---|---|---|---|---|---|---|
| Rated pressure range | 0.0 to –101.0 kPa | –100.0 to 100.0 kPa | –0.100 to 1.000 MPa | –0.100 to 2.00 MPa | ||
| Set pressure range | 10.0 to –111.0 kPa | –110.0 to 110.0 kPa | –0.105 to 1.100 MPa | –0.105 to 2.20 MPa | ||
| Withstand pressure | 500 kPa | 2 MPa | 4 MPa | |||
| Wetted parts material | Pressure sensor: Stainless steel 630, Fitting: Stainless steel 304 | |||||
| Applicable fluid | Fluids do not corrode stainless steel 630 and 304 | |||||
| Power supply voltage | 12 to 24 VDC ±10%, Ripple (p-p) 10% or less (with power supply polarity protection) | |||||
| Current consumption | 45 mA or less | |||||
| Switch output | NPN 1 output, NPN 2 outputs, PNP 1 output, PNP 2 outputs | |||||
| Maximum load current | 80 mA | |||||
| Maximum applied voltage | 28 V (at NPN output) | |||||
| Residual voltage | 1 V or less (with load current of 80 mA) | |||||
| Response time | 2.5 ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms) | |||||
| Short circuit protection | Yes | |||||
| Repeat accuracy | ±0.2% F.S. ±1 digit | |||||
| Hysteresis | Hysteresis mode | Variable (0 or above) | ||||
| Window comparator mode | ||||||
| Analog output | Voltage output | Output voltage (Rated pressure range) | 1 to 5 V ±2.5% F.S. | 0.6 to 5 V ±2.5% F.S. | 0.8 to 5 V ±2.5% F.S. | |
| Linearity | ±1% F.S. or less | |||||
| Output impedance | Approx. 1 kΩ | |||||
| Current output | Output current (Rated pressure range) | 4 to 20 mA ±2.5% F.S. | 2.4 to 20 mA ±2.5% F.S. |
3.2 to 20 mA ±2.5% F.S. |
||
| Linearity | ±1% F.S. or less | |||||
| Load impedance | Maximum load impedance: 300 Ω (Power supply voltage 12 V)
600 Ω (Power supply voltage 24 V) Minimum load impedance: 50 Ω |
|||||
| Auto-shift input | Non-voltage input (Reed or Solid state), Low level: 0.4 V or less, 5 ms or longer input | |||||
| Display | 3 1/2-digit, 7-segment, 2-color LCD (Red/Green) | |||||
| Display accuracy | ±2% F.S. ±1 digit (Ambient temperature of 25 ±3°C) | |||||
| Indicator light | Lights up when output is turned ON. OUT1, OUT2: Orange | |||||
| Function | Anti-chattering, Zero-out, Key lock function, Auto-preset, Auto-shift,Unit display switching, Power-saving mode | |||||
| Environment resistance | Enclosure | IP65 | ||||
| Operating temperature range | Operating: 0 to 50°C, Stored: –10 to 60°C (No freezing or condensation) | |||||
| Operating humidity range | Operating/Stored: 35 to 85% RH (No condensation) | |||||
| Withstand voltage | 250 VAC for 1 minute between live parts and case | |||||
| Insulation resistance | 2 MΩ or more between live parts and case (at 50 VDC Mega) | |||||
| Vibration resistance | 10 to 150 Hz at whichever is smaller of 1.5 mm amplitude or 20 m/s2 acceleration,
in X, Y, Z directions, for 2 hours each (De-energized) |
|||||
| Impact resistance | 100 m/s2 in X, Y, Z directions, 3 times each (De-energized) | |||||
| Temperature characteristics | ±3% F.S. (Based on 25°C, within operating temperature range) | |||||
| Lead wire | Oilproof heavy-duty vinyl cable, 3 cores (N.P) ø3.5, 2 m
4 cores (A.B) Conductor area: 0.15 mm2 (AWG26) 5 cores (R.T.S.V) Insulator O.D.: 0.95 mm |
|||||
| Standards | CE marking, UL (CSA), RoHS compliance | |||||
