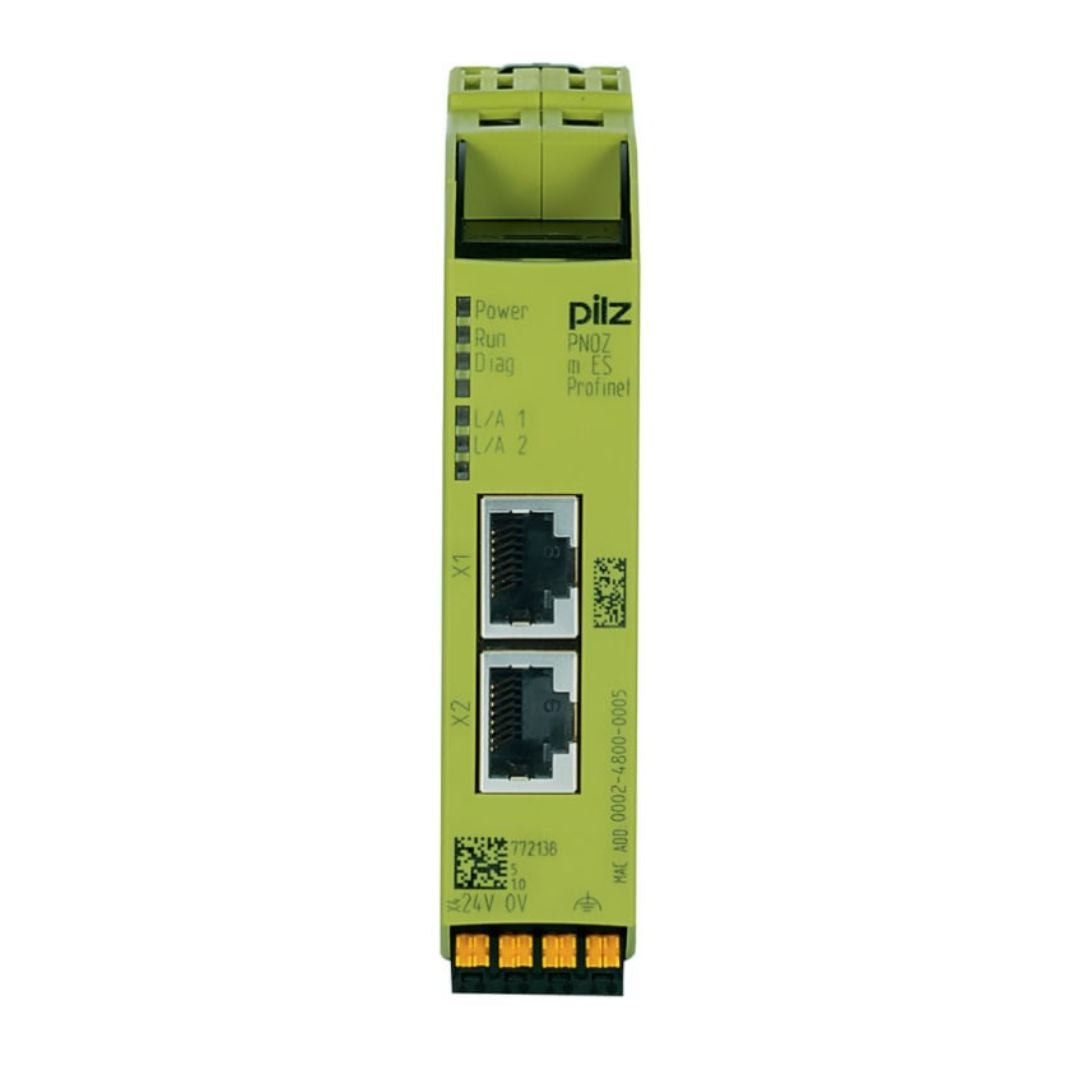

Safety Relay Pilz PNOZ m ES Profinet Code772138

Technical Data Sheets :

PNOZmulti 2 Communication/Fieldbus Module Profinet

• The PNOZ m ES Profinet expansion module connects to a base unit from the PNOZmulti 2 configurable control system.

Features and Benefits

• Can be configured in the PNOZmulti Configurator
• Connections for PROFINET
• Status, diagnostic and error displays for communication with PROFINET
• 128 virtual inputs and outputs on the control system PNOZmulti 2 can be defined in the
  PNOZmulti Configurator for communication with the fieldbus PROFINET
• Transmission rate 100 Mbps (100BaseTX ), full and half duplex
• Maximum 1 PNOZ m ES Profinet can be connected to the base unit
• Two RJ45 ports
• Profinet I/O device (V2.2) functions in accordance with Conformance Class C
• Supported functions: RT, IRT, MRP, LLDP, I&M 04

Approvals

• CE, cULus Listed, TÜV, BG, CCC.

Supplied with

• Screw terminals.

Features / Specifications

Block Diagram

Dimensions
