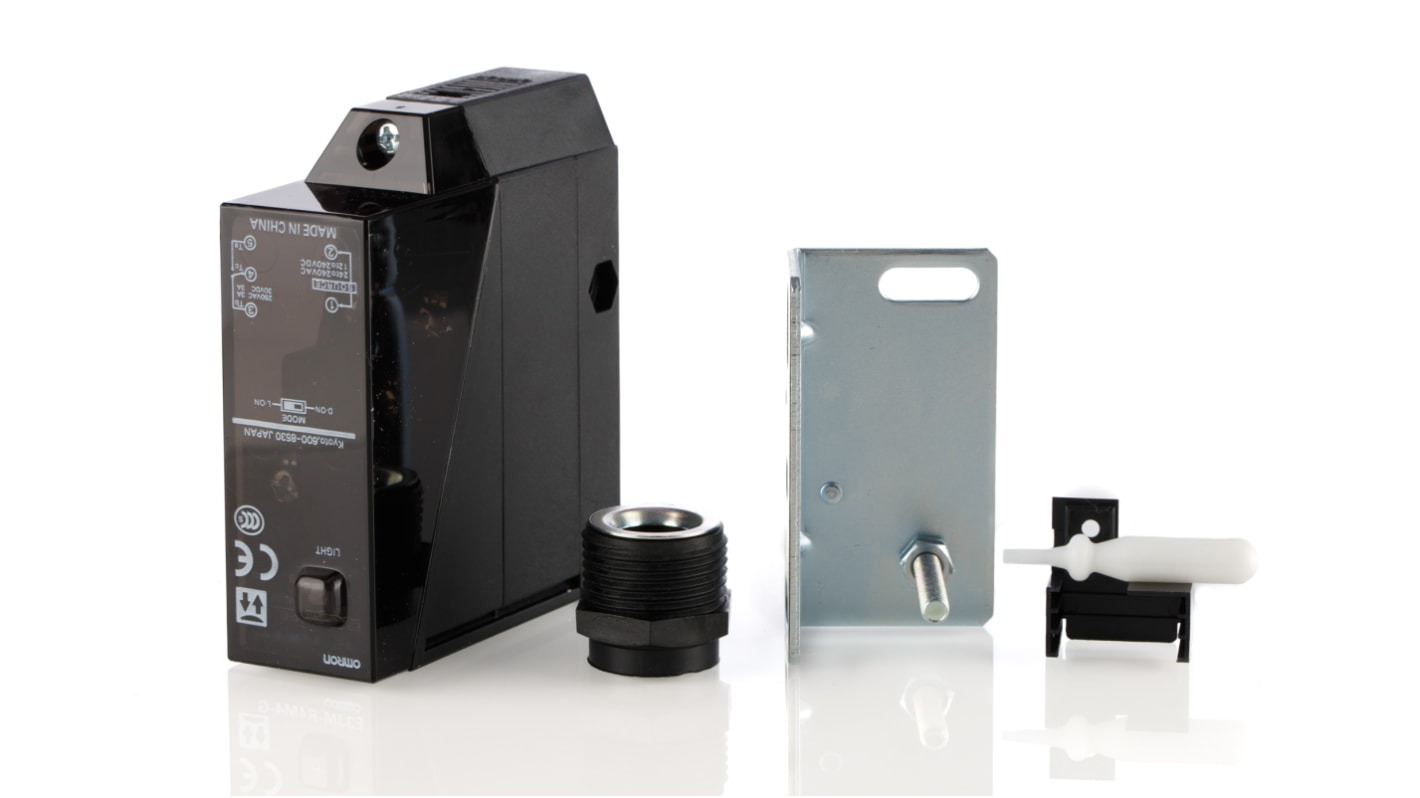

Omron Photoelectric Sensor E3JMR4M4G

Omron Photoelectric Sensor E3JMR4M4G

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 6,689.00 ฿
ราคาปกติ ราคาโปรโมชัน 6,689.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Omron Photoelectric Sensor E3JMR4M4G

E3JM Slim Style, with or without Delay Timer

Through Beam, Retroreflective and Diffuse versions available
Food industry compatible
ABS Case, acrylics lens, PC Cover. IP66. LED indication
N/O and N/C (selectable)
Response time 30ms Max (version without delay timer)
Load switching relay SPCO type, rated to 3A (resistive) at 250 Vac
Delay timer versions have selection of ON delay, OFF delay and ONE-SHOT (except 256-427:256-433 & 256-449) outputs with delay times of 0.1 to 5 seconds (variable)
Through beam version supplied as a transmitter and receiver pair
Operating mode: Light ON/Dark ON (selectable)
Supply Voltage 12 to 240 Vdc or 24 to 240 Vac
Retroreflective version employs polarised light to reduce false triggering. Reflector type E39-R1 included
Operating temperature range -25° → +55° C
Relay compatibility 5Vac 10A min.
Teminal block, PG13.5 entry
Power rating: Through beam 3W, remainder 2W
Mounting bracket and Cable glands included
คุณสมบัติ Value
Sensor Style Block
Detection Type Retro-Reflective
Detection Range 4 m
Output Type Relay
Electrical Connection Terminal Block
Maximum AC Voltage 250V
Maximum DC Voltage 5V
Light Source LED
IP Rating IP66
Maximum Current 3 A
Response Time 30 ms
Series E3JM
Maximum Operating Temperature +55°C
Housing Material ABS
Minimum Operating Temperature -25°C
