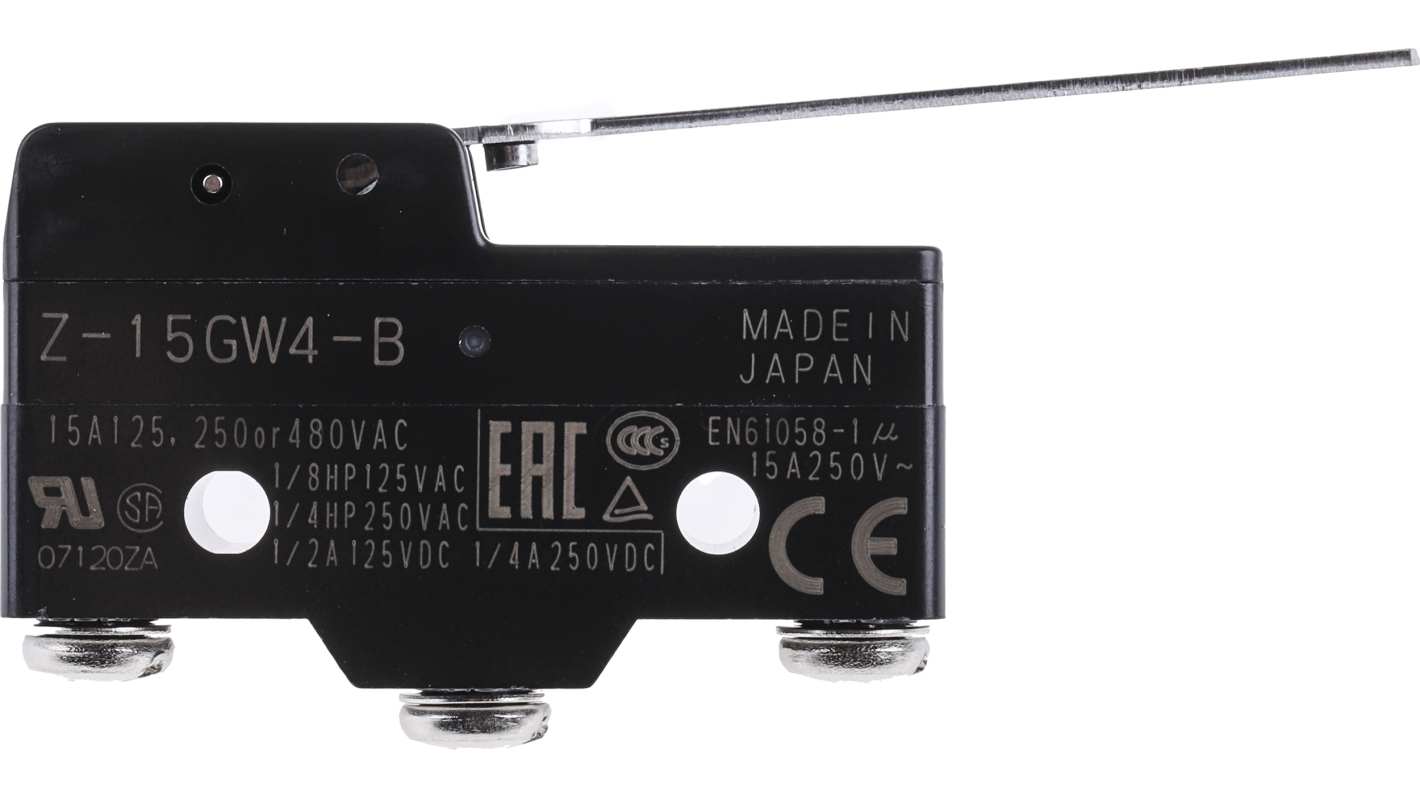

Omron limit switch Z-15GW4-B
Omron limit switch Z-15GW4-B
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
483.00 ฿
ราคาปกติ
ราคาโปรโมชัน
483.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch Z-15GW4-B
Z15 Series – Basic Switch
The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.
High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)
Approvals
UL recognised, CSA
Omron Limit Switch, Lever Actuator, 15A High Current - Z-15GW4-B
This limit switch provides high performance and reliability for automation applications. Its durable design and lever actuator enable precise control of machinery based on mechanical movement in industrial settings.
Features & Benefits
• Snap action mechanism for quick response times
• Compact design for easy installation in constrained spaces
• Rated for high current applications up to 15A
• Made from thermosetting resin for enhanced durability
• Functionality maintained across a wide temperature range
• Compact design for easy installation in constrained spaces
• Rated for high current applications up to 15A
• Made from thermosetting resin for enhanced durability
• Functionality maintained across a wide temperature range
Applications
• Detecting end-of-travel positions in machinery
• Controlling conveyors and lifts
• Integrated into safety systems for equipment operation
• Utilised in automation processes within manufacturing
• Controlling conveyors and lifts
• Integrated into safety systems for equipment operation
• Utilised in automation processes within manufacturing
What is the maximum current capacity of this switch?
The switch can handle a maximum current of 15A, making it suitable for high current applications.
Can this switch be used in outdoor environments?
No, it is designed for indoor use only.
How does the snap action feature improve functionality?
The snap action allows for rapid actuation, enhancing responsiveness in control systems.
What materials are used in its construction?
The switch features a housing made from thermosetting resin, ensuring durability and resistance to environmental factors.
Is there a specific temperature range for optimal operation?
Yes, it operates effectively between -25°C and +80°C.
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP00 |
| Maximum Current | 15A |
| Housing Material | Thermosetting Resin |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Action Type | Snap Action |
| Length | 49.2mm |
| Standards Met | CCC, CE, CSA, UL |
| Depth | 17.45mm |
| Width | 29.4mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -25°C |
| Mechanical Life | 20000000Operations |
