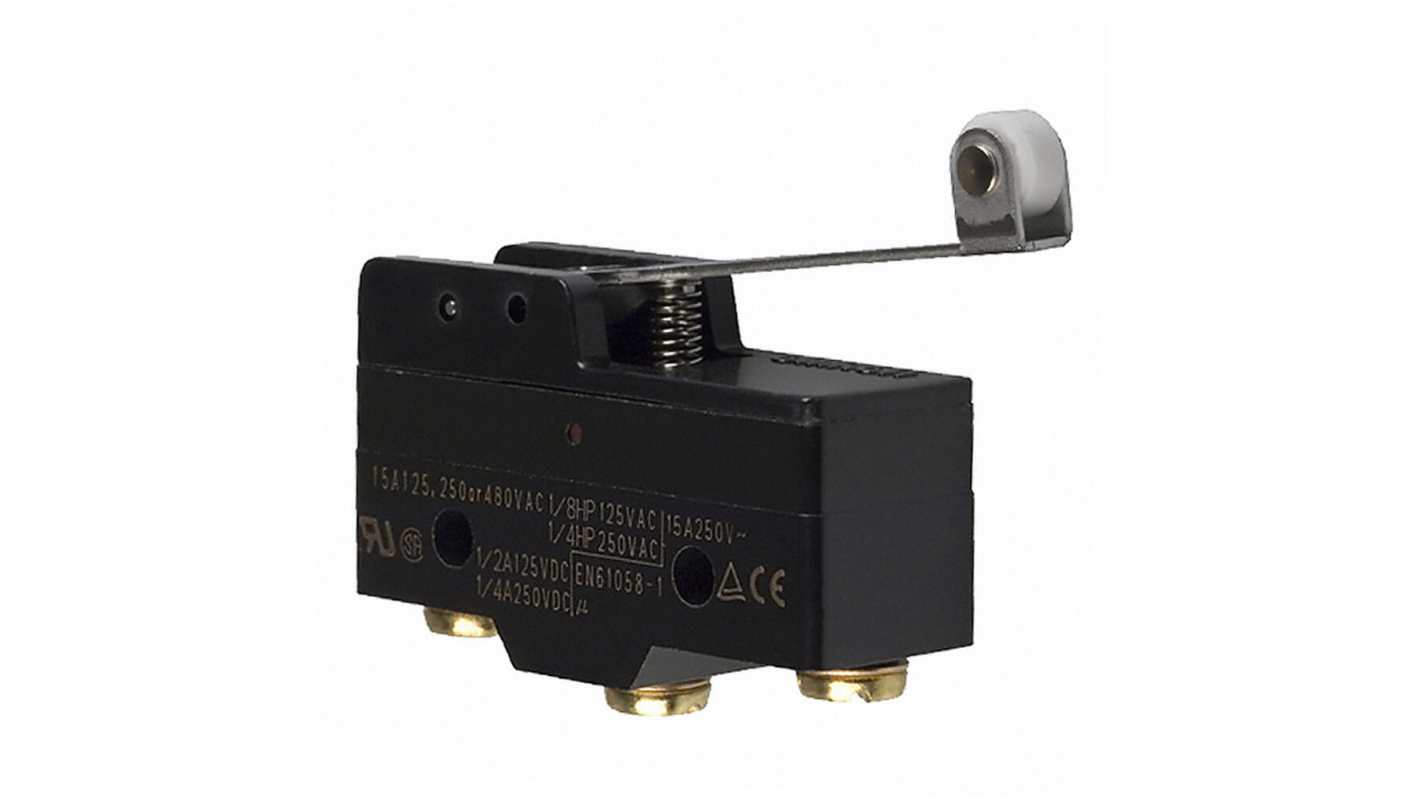

Omron limit switch Z-15GW2-B7-K

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

UL recognised, CSA

This limit switch is designed for precision and reliability in industrial and commercial applications. It features a roller lever actuator style that ensures smooth operation and high durability. With a robust thermosetting resin construction, it is suitable for tasks that require high current handling and durability. This switch efficiently supports automation and control systems, ensuring functional continuity.

• Maximum current rating of 15A for effective performance
• Snap action mechanism enhances responsiveness
• Wide temperature operation range of -25°C to +80°C for versatility
• Mechanical life of 20 million operations for extended use
• SPDT configuration allows for flexible wiring options

• Used in conveyor systems for position feedback
• Suitable for machinery that requires precise limit detection
• Utilised in control circuits for accurate equipment management
• Applicable in robotics for motion detection and control

The roller lever facilitates easy actuation and increases precision in limit detection, making it well-suited for applications where consistent feedback is essential.

Yes, the switch has an IP63 protection rating, which means it is resistant to dust and water spray, making it suitable for use in industrial environments.

Mounting requires M4 screws, tightened to a torque of 12 to 15 kg-cm ensure stable positioning for optimal performance.
