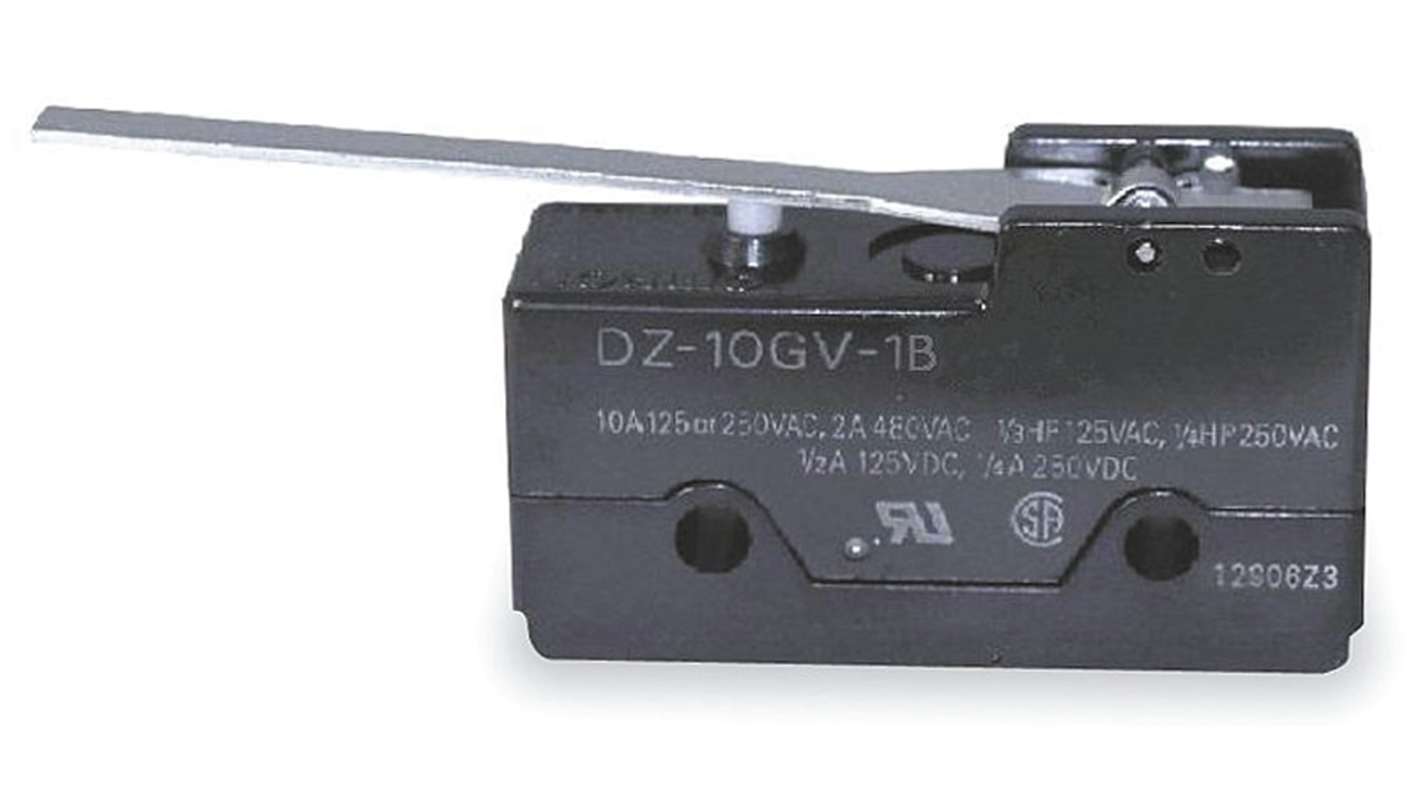

Omron limit switch DZ-10GV-1B
Omron limit switch DZ-10GV-1B
OMRON
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,339.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,339.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Omron limit switch DZ-10GV-1B
DZ Special-purpose Basic Switch
The DZ series limit switches have a DPDT basic switch for two independent circuit controls. They incorporates two completely independent built-in switches and are ideal for switching circuits on two different voltages of for controlling two independent circuits. They are also interchangeable with Omron Z basic switches, as both switches are identical in mounting hole dimensions, mounting pitch and pin plunger position.
Contact rated for a wide range of voltages
Contact current rating: 10A at 250 Vac
Operating temperature Range: -25 to +80 °C (with no icing)
Mechanical service life: 1,000,000 operations minimum
Electrical service life: 500,000 operations minimum
Contact current rating: 10A at 250 Vac
Operating temperature Range: -25 to +80 °C (with no icing)
Mechanical service life: 1,000,000 operations minimum
Electrical service life: 500,000 operations minimum
คุณสมบัติ |
Value |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP00 |
| Maximum Current | 10A |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Action Type | Snap Action |
| Length | 49.2mm |
| Maximum Operating Temperature | +85°C |
| Width | 17.45mm |
| Minimum Operating Temperature | -25°C |
| Depth | 27.9mm |
| Mechanical Life | 1000000Operations |
| Mounting Orientation | Screw |
