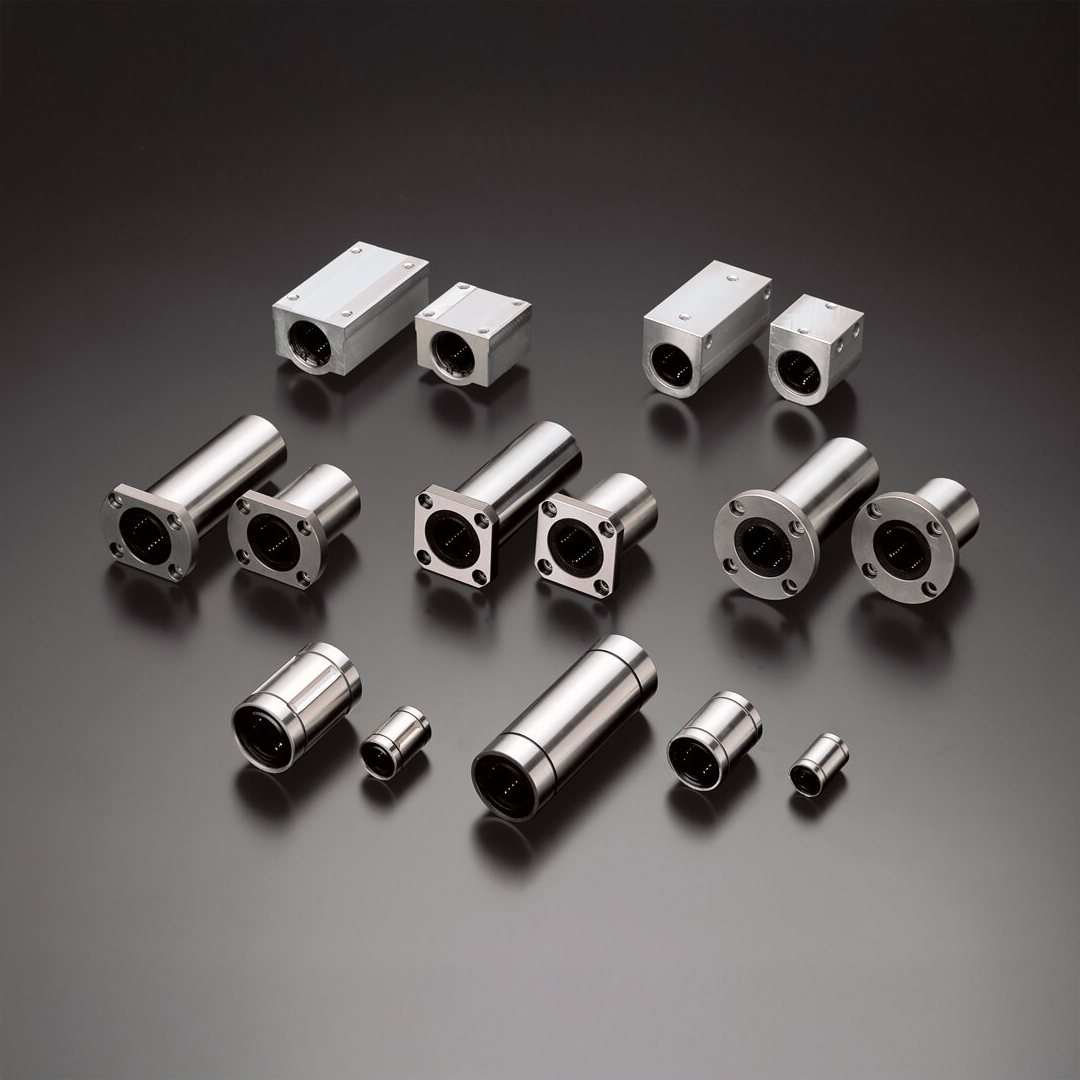

Linear Bushing SL16MUU

Name: Linear Bushing SL16MUU
Brand: THK
Price: 5208.00 THB
Availability: InStock

THK

5,208.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing SL16MUU

Model No.	Outer dimensions			LM casing dimensions														Model No.of LinearBushingto becombined	Basic load rating		Mass
	HeightM	WidthW	LengthL	Mounting hole position			TapS × l	Through boltS₂	CenterheightJ±0.02	W₁±0.02	K	W₂	T	R	N	Inscribed borediameter			Dynamic rating C	Static rating C₀
	HeightM	WidthW	LengthL	B	B₁	C	TapS × l		CenterheightJ±0.02	W₁±0.02	K	W₂	T	R	N	dr	Tolerance		Dynamic rating C	Static rating C₀
	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm			N	N	g
SL16MUU	38.5	50	85	36	7	60	M5×12	M4	19	25	35	46	9	19.5	6	16	0-0.009	LM16UU	1230	2350	403
SL20MUU	42	54	96	40	7	70	M6×12	M5	21	27	36	52	11	21	7	20	0-0.010	LM20UU	1400	2750	520
SL25MUU	51.5	76	130	54	11	100	M8×18	M6	26	38	41	68	12	25.5	4	25		LM25UU	1560	3140	1120
SL30MUU	59.5	78	140	58	10	110	M8×18	M6	30	39	49	72	15	29.5	5	30		LM30UU	2490	5490	1440
