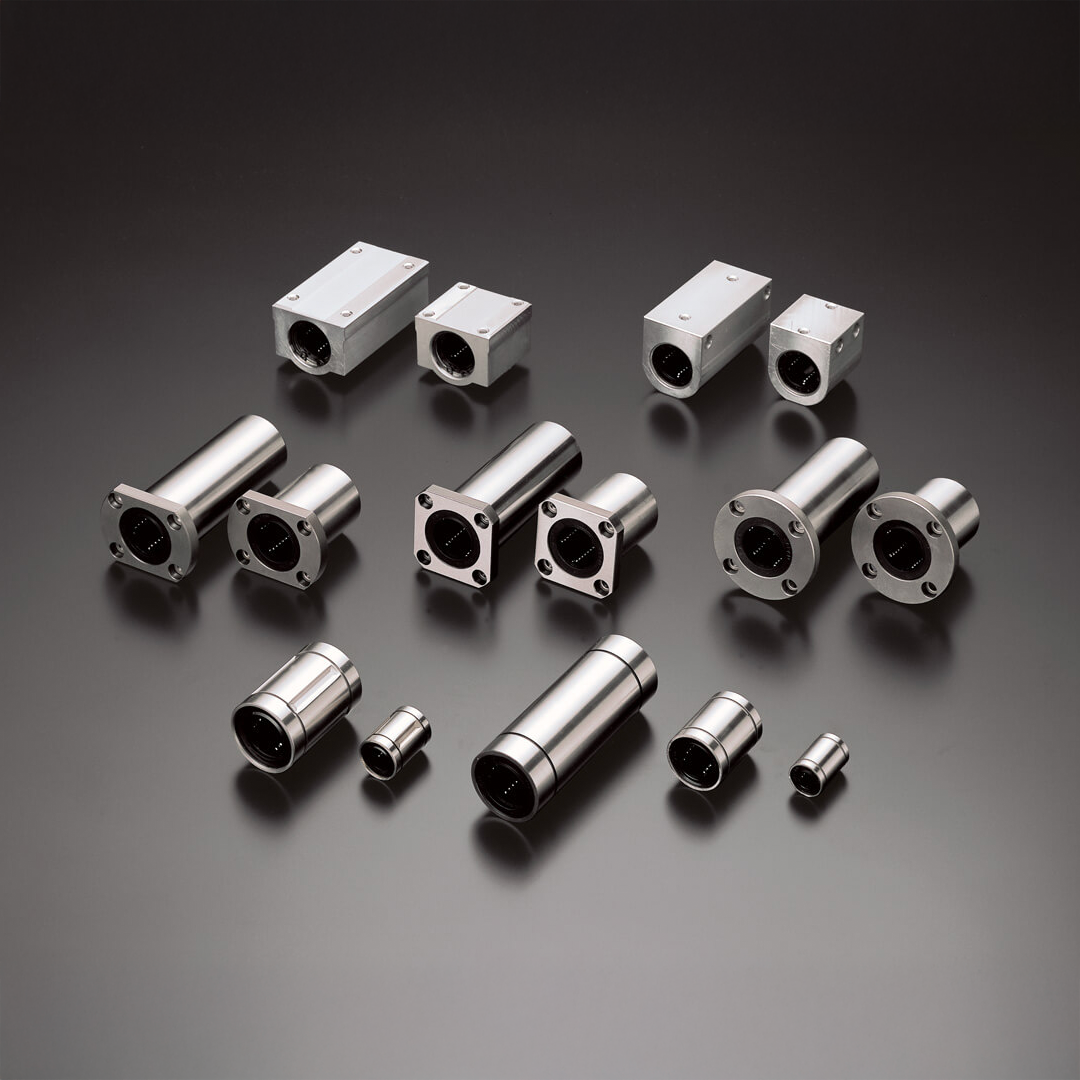

- Linear Bushing SH6UU
Linear Bushing SH6UU
Linear Bushing SH6UU
THK
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,456.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,456.00 ฿
ราคาต่อหน่วย
/
ต่อ
รายละเอียด Linear Bushing SH6UU
Model No. | Outer dimensions | LM casing dimensions | Model No.of LinearBushingto becombined | Basic load rating | Mass | ||||||||||||||
HeightM | WidthW | LengthL | Mounting hole position | Tap | ThroughboltS3 | CenterheightJ±0.02 | W1±0.02 | d2 | h | Inscribed borediameter | Dynamic rating C |
Static rating C0 |
|||||||
B | B1 | C | S1 × l1 | S2 × l | dr | Tolerance | |||||||||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | N | N | g | ||||
SH3UU | 14 | 10 | 13 | — | 8 | 3 | M3×6 | M3×5.5 | M2 | 9 | 5 | 4.2 | 1.5 | 3 | 0-0.008 | LM3UU | 88.2 | 108 | 4.5 |
SH4UU | 16 | 12 | 15 | — | 10 | 3 | M3×6 | M3×6 | M2 | 10 | 6 | 4.2 | 1.5 | 4 | LM4UU | 88.2 | 127 | 7 | |
SH5UU | 18 | 14 | 17 | — | 12 | 3 | M3×6 | M3×6 | M2 | 11 | 7 | 4.2 | 1.5 | 5 | LM5UU | 167 | 206 | 11 | |
SH6UU | 22 | 16 | 24 | 18 | 9 | 5 | M4×8 | M4×8 | M3 | 14 | 8 | 6.5 | 3.3 | 6 | 0-0.009 | LM6UU | 206 | 265 | 21.6 |
SH8UU | 26 | 20 | 27 | 20 | 10 | 5 | M4×8 | M5×8.5 | M3 | 16 | 10 | 6.5 | 3.3 | 8 | LM8UU | 265 | 402 | 32 | |
SH10UU | 32 | 26 | 35 | 27 | 15 | 6 | M5×10 | M6×9.5 | M4 | 19 | 13 | 8 | 4.4 | 10 | LM10UU | 373 | 549 | 65 | |
SH12UU | 34 | 28 | 35 | 27 | 15 | 6 | M5×10 | M6×9.5 | M4 | 20 | 14 | 8 | 4.4 | 12 | LM12UU | 412 | 598 | 81 | |
SH13UU | 36 | 30 | 36 | 28 | 16 | 6 | M5×10 | M6×9.5 | M4 | 21 | 15 | 8 | 4.4 | 13 | LM13UU | 510 | 775 | 90 | |
SH16UU | 42 | 36 | 40 | 32 | 18 | 6 | M5×10 | M6×10 | M4 | 24 | 18 | 8 | 4.4 | 16 | LM16UU | 775 | 1180 | 150 | |
SH20UU | 49 | 42 | 44 | 36 | 22 | 7 | M6×12 | M6×12 | M5 | 28 | 21 | 9.5 | 5.4 | 20 | 0-0.010 | LM20UU | 863 | 1370 | 215 |
