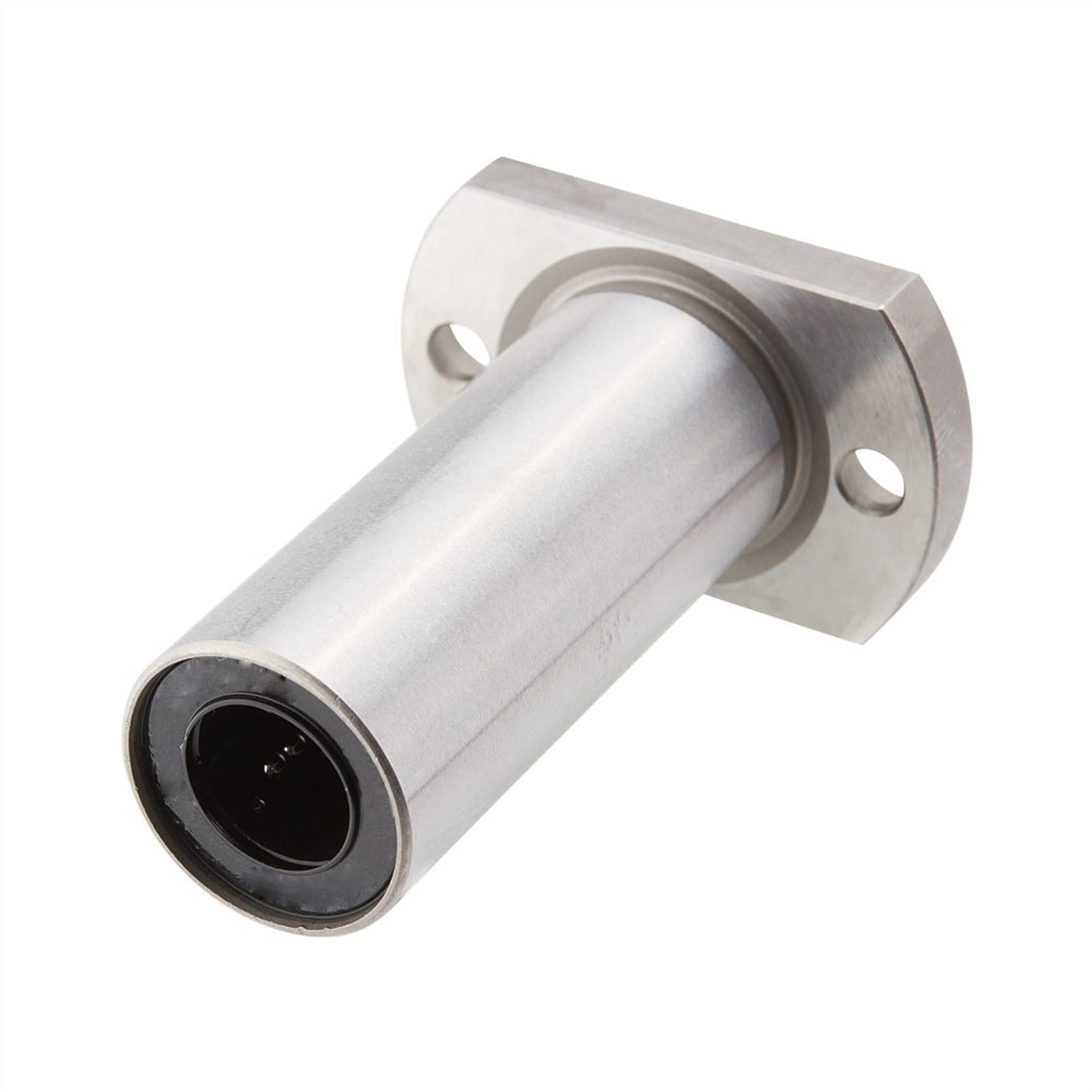

Linear Bushing LMH10M

Linear Bushing LMH10M

THK

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

1,708.00 ฿

1,708.00 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Linear Bushing LMH10M

Model No.	Ball rows	Main dimensions													Flangeperpen-dicularity	Eccentricity(max)	Radial Clearance Tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		K	H	B	C	Mounting holed₁×d₂×h				Dynamic C	Static C₀
		dr	Tolerance	D	Tolerance	L	Tolerance	D₁	Tolerance	K	H	B	C	Mounting holed₁×d₂×h				Dynamic C	Static C₀
		mm		mm		mm		mm		mm		mm	mm	mm	µm	µm	µm	N	N	g
LMH6M	4	6	0-0.009	12	0-0.011	19	0-0.2	28	0-0.2	18	5	20	—	3.4×6.5×3.3	12	12	-5	206	265	20
LMH8SM	4	8		15		17		32		21	5	24	—	3.4×6.5×3.3	12	12	-5	176	225	24
LMH8M	4	8		15		24		32		21	5	24	—	3.4×6.5×3.3	12	12	-5	265	402	28
LMH10M	4	10		19	0-0.013	29		39		25	6	29	—	4.5×8×4.4	12	12	-5	373	549	50
LMH12M	4	12		21		30		42		27	6	32	—	4.5×8×4.4	12	12	-5	412	598	56
LMH13M	4	13		23		32		43		29	6	33	—	4.5×8×4.4	12	12	-7	510	775	69
LMH16M	5	16		28		37		48		34	6	31	22	4.5×8×4.4	12	12	-7	775	1180	111
LMH20M	5	20	0-0.010	32	0-0.016	42		54		38	8	36	24	5.5×9.2×5.4	15	15	-9	863	1370	140
LMH25M	6	25		40		59	0-0.3	62		46	8	40	32	5.5×9.2×5.4	15	15	-9	980	1570	279
LMH30M	6	30		45		64		74		51	10	49	35	6.6×11×6.5	15	15	-9	1570	2750	351
