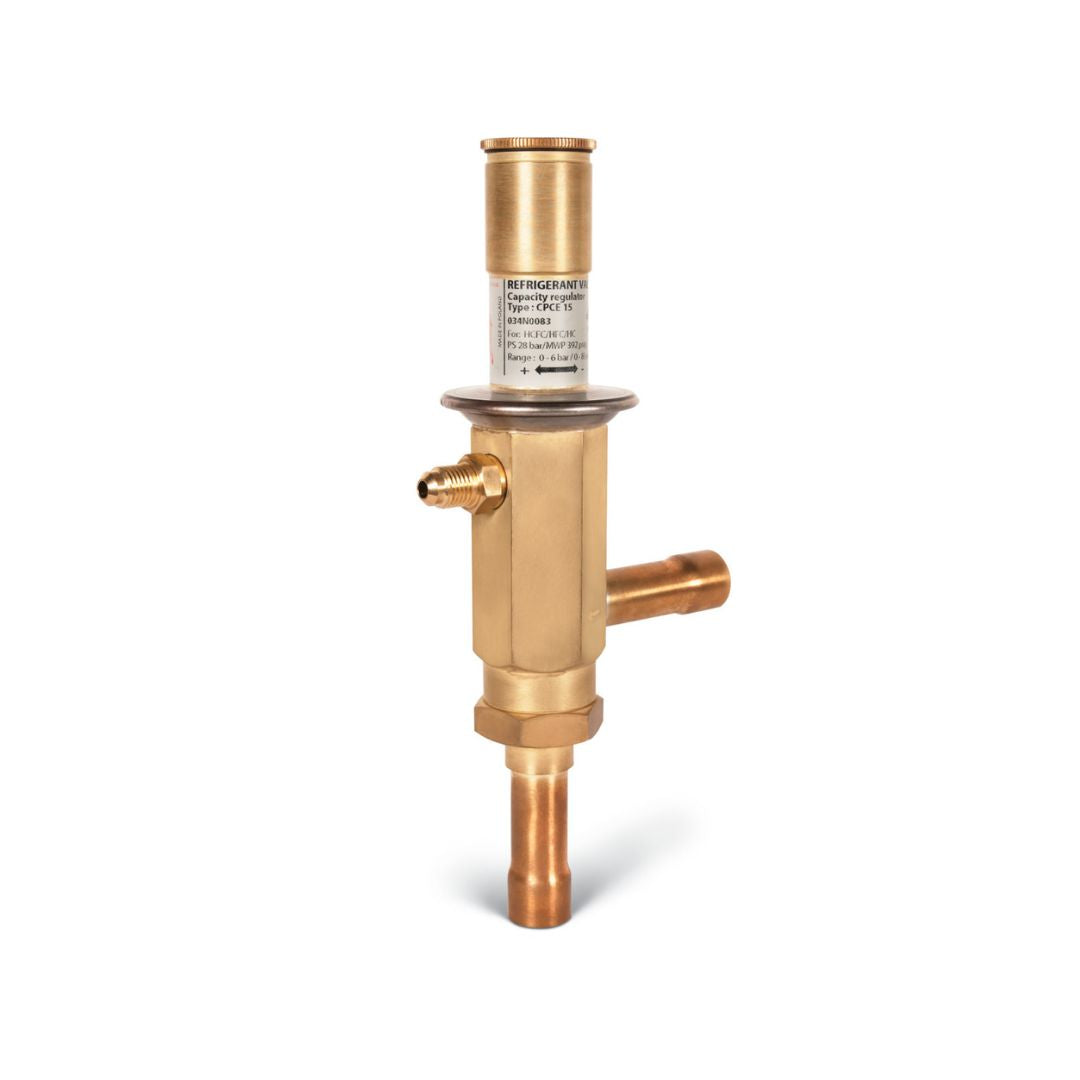

Hot Gas Bypass Regulator Danfoss CPCE 15 Connection 5/8 lnch Code 034N0083
Hot Gas Bypass Regulator Danfoss CPCE 15 Connection 5/8 lnch Code 034N0083
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
27,064.13 ฿
ราคาปกติ
ราคาโปรโมชัน
27,064.13 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Hot Gas Bypass Regulator Danfoss CPCE 15 Connection 5/8 lnch Code 034N0083
Data Sheets :
Product details
| Gross weight | 0.96 Kg |
| Net weight | 0.839 Kg |
| Volume | 2.016 Liter |
| EAN | 5702422030515 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Differential pressure [bar] | 18 bar |
| Differential pressure [psi] | 260 psi |
| Factory setting [bar] | 0.4 bar |
| Factory setting [psig] | 5.8 psig |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | Injection: LG liq. gas mixer |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Inlet size [mm] | 16 mm |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 140 °C |
| Medium temperature range [°C] [min] | -50 °C |
| Medium temperature range [°F] [max] | 284 °F |
| Medium temperature range [°F] [min] | -58 °F |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Pilot line conn. size [in] | 7/16 in - 20 UNF |
| Pilot line connection type | Flare |
| Product accessories | KV valves accessories |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Quantity per packing format | 8 pc |
| Rated cap. conditions [IMP] | Delta ts=7 °F tcond=86 °F tevap=-14 °F |
| Rated cap. conditions [SI] | Delta ts=4K tevap=-10 °C tcond=30 °C |
| Rated cap. R404A/R507A [kW] | 24.2 kW |
| Rated cap. R404A/R507A [TR] | 9.1 TR |
| Rated capacity R134a [kW] | 11.6 kW |
| Rated capacity R134a [TR] | 6.3 TR |
| Rated capacity R22 [kW] | 25.6 kW |
| Rated capacity R22 [TR] | 9.2 TR |
| Rated capacity R407C [kW] | 27.9 kW |
| Rated capacity R407C [TR] | 9.9 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1270,R134a,R22,R290,R404A R407A,R407C,R407F,R422B,R422D R448A,R449A,R450A,R452A,R507A R513A,R600,R600a,R407H,R449B R454C,R455A,R515B,R516A,R1234yf R454A,R1234ze(E) |
| Regulation range [bar] [max] | 6 bar |
| Regulation range [bar] [min] | 0 bar |
| Regulation range [psi] [max] | 85 psi |
| Regulation range [psi] [min] | 0 psi |
| Regulation range [psig] Pe [max] | 85 psig |
| Regulation range [psig] Pe [min] | 0 psig |
| SCIP dossier no. | 2fa296aa-9174-45d9-b8d8-abed380ef992 |
| Serviceable | KV valves spare parts |
| Type | CPCE 15 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
