• Limit Switch Omron D4MC-2000
1 1

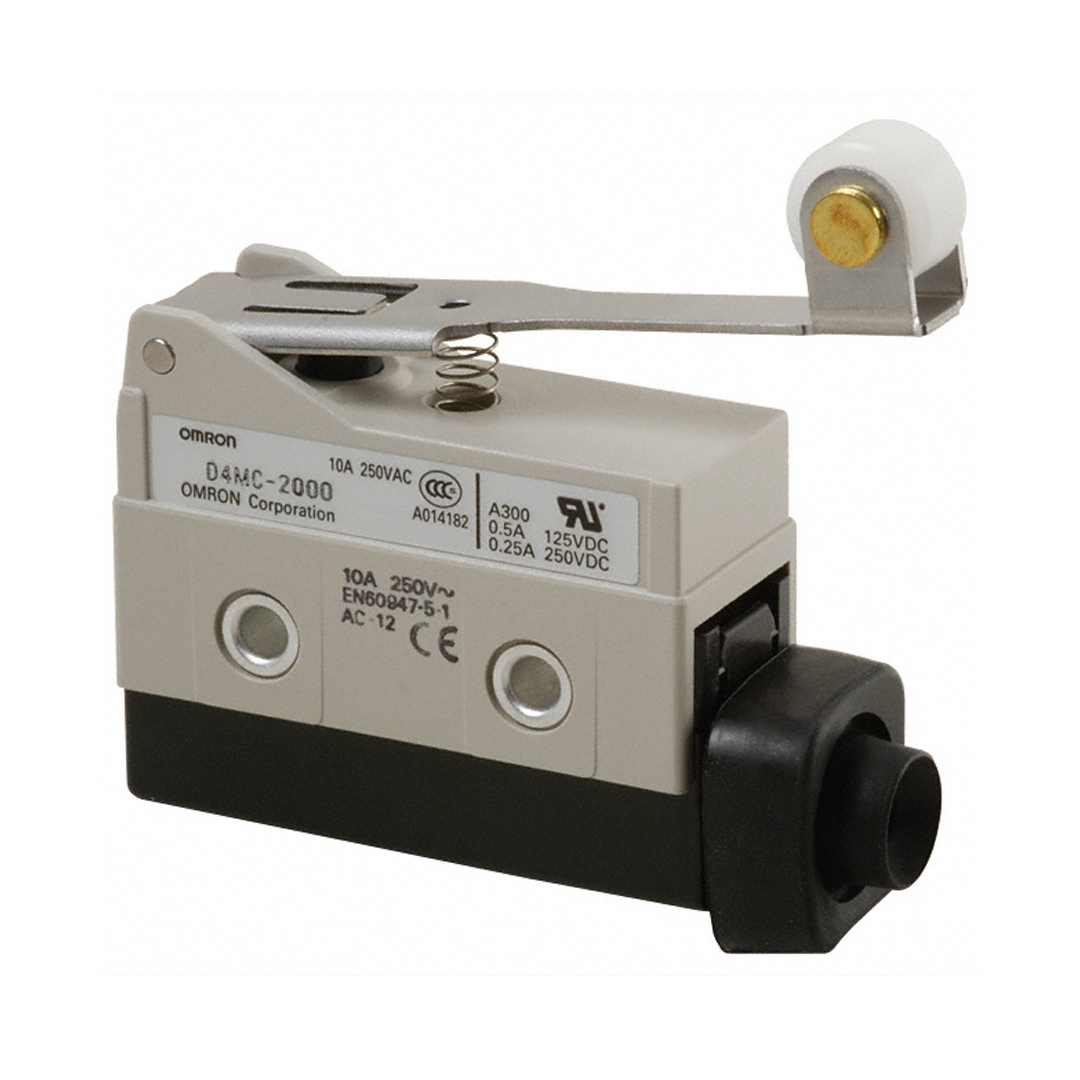

Limit Switch Omron D4MC-2000

Limit Switch Omron D4MC-2000

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
1,903.24 ฿
1,903.24 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Limit Switch Omron D4MC-2000

Technical Data Sheets :

Dimension

  • Mounting hole dimensions
รูป

Circuits configuration

รูป

Characteristic chart

  • Durability curve
  • Electrical/ Mechanical
รูป

Rating / Performance

Shape/Structure Enclosed Limit switches
ctuator Hinge roller lever 12.7 dia. x 7.5
Stainless steel lever, Plastic roller
Frequency 50/60 Hz
Contact form SPDT
Load General load
Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 480 VAC
Lamp load (NC): 3 A at 125 VAC/2.5 A at 250 VAC/1.5 A at 480 VAC
Lamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VAC/0.75 A at 480 VAC
Inductive load: 10 A at 125 VAC/10 A at 250 VAC/2.5 A at 480 VAC
Motor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 480 VAC
Motor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.75 A at 480 VAC
Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDC
Lamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Lamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Inductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Motor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Motor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Inrush current NC: 30 A max. NO: 15 A max.
Ambient temperature Operating: -10 to 80 ℃ (with no icing)
Ambient humidity 35 to 95% RH
Permissible operating frequency Electrical: 20 operations / 1 minute max.
Mechanical: 120 operations / 1 minute max.
Contact resistance (Initial value) 15 mΩ max. (initial value for the built-in switch whentested alone)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min
Durability Electrical: 500,000 operations min.
Mechanical: 10 million operations min.
Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude, Contact opening: 1 ms max. at the free position and the total travel position.
Shock resistance Destruction: 1,000 m/s2 max.
Pollution degree 3 (IEC947-5-1)
Degree of protection IP67
Operating Force (OF) Standard value 1.96 N max.
Release Force (RF) Standard value 0.39 N min.
Movement Differential (MD) Standard value 3 mm max.
Over-Travel (OT) Standard value 5 mm min.
Operating Position (OP) Standard value 40±1 mm
Free Position (FP) Standard value 51 mm max.
