Chipbreaker : AL
Clearance Angle : 7 °
Corner Radius : 0.4
Cutting Direction : Neutral
Cutting Edge Length : 9 mm
Finish/Coating : Uncoated
ISO Category Grade : K
ISO Cut : K05 to K20

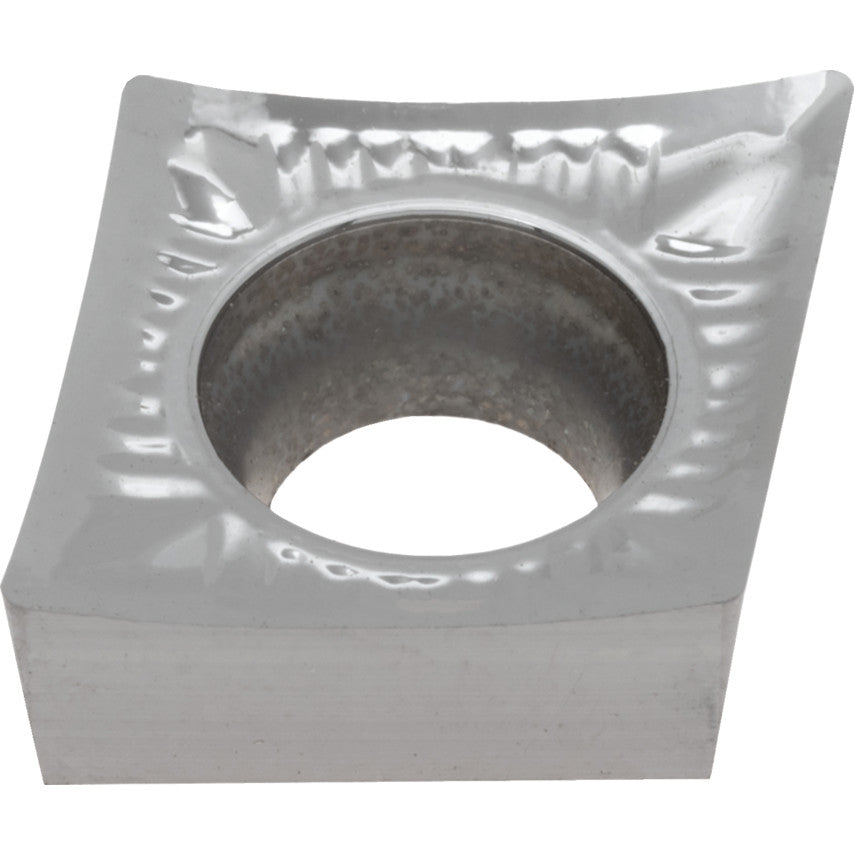

ISO Designation : CCGT 09T304-AL
Inscribed Circle : 9.525 mm
Insert Size : 09T3
Insert Style : CCGT
Manufacturer Grade : K10
Material : Carbide
Material Application : Aluminium
Material Application : Cast Iron
Material Application : Nonferrous Metal
Pack Quantity : 10
Shape : 80° Rhombic
Thickness : 3.97 mm
