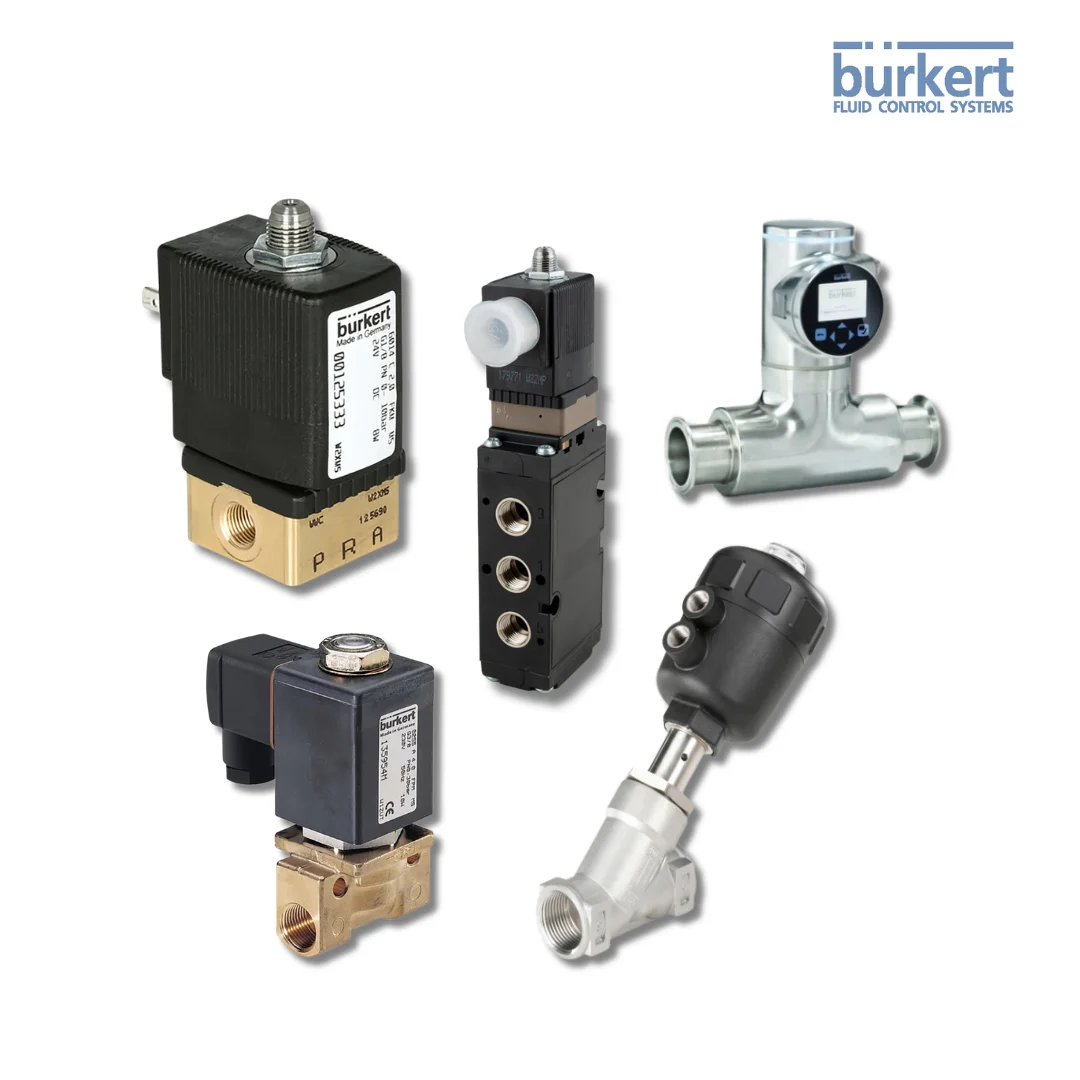

- Burkert Solenoid Valve 134592, 2 port(s) , NC, 110 V ac, 1/2inRS Stock No.:313-2093หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:134592
Burkert Solenoid Valve 134592, 2 port(s) , NC, 110 V ac, 1/2inRS Stock No.:313-2093หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:134592
Burkert Solenoid Valve 134592, 2 port(s) , NC, 110 V ac, 1/2inRS Stock No.:313-2093หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:134592
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
7,859.00 ฿
ราคาปกติ
9,824.00 ฿
ราคาโปรโมชัน
7,859.00 ฿
ราคาต่อหน่วย
/
ต่อ
รายละเอียด Burkert Solenoid Valve 134592, 2 port(s) , NC, 110 V ac, 1/2inRS Stock No.:313-2093หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:134592
Series 5404 Two-way High Pressure Normally Closed, Servo Assisted Solenoid Valve
Brass body with polyamide coil, PTFE seal material and stainless steel 1.4310 spring
High reliability
Unaffected by pressure surges
Easy coil change
Coil can be locked in four 90° positions, or move between as required
For use with compressed air pressure systems and gas turbines using compressed air; natural gas and water
Operating tempeature range -10 to +90°C
Protection rating IP65 with cable plug DIN43650C
High reliability
Unaffected by pressure surges
Easy coil change
Coil can be locked in four 90° positions, or move between as required
For use with compressed air pressure systems and gas turbines using compressed air; natural gas and water
Operating tempeature range -10 to +90°C
Protection rating IP65 with cable plug DIN43650C
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
คุณสมบัติ | Value |
Supply Voltage | 110 V ac |
Number of Ports | 2 |
Connection Size | 1/2in |
Connection | 1/2 in G Female |
Operation | Pilot |
Default Valve Position | NC |
Suitable Applications | Compressed Air, Neutral Gas, Water |
Type | 2/2 |
Orifice Diameter | 12mm |
Body Material | Brass |
Series | 5404 |
Maximum Working Pressure | 50 bar |
Operating Temperature Range | -10 → +55 °C |
Servo Assist | Yes |
Maximum Operating Temperature | +55°C |
Minimum Operating Temperature | -10°C |
Thread Standard or Connection Type | G |
Connection Gender | Female |
Flow Factor Kv | 2m³/h |
Maximum Closing Time | 1.5s |
Maximum Opening Time | 400ms |
