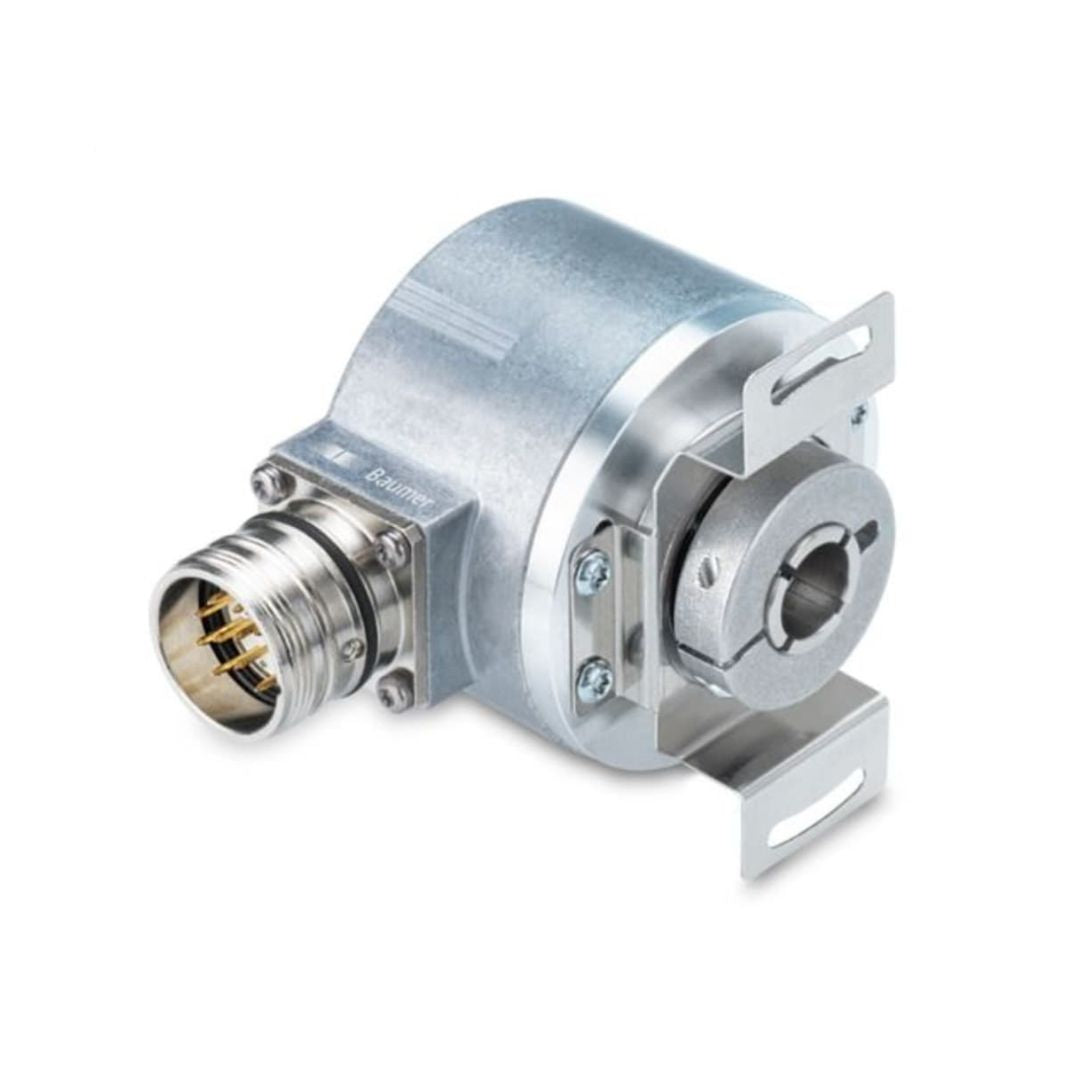

รายละเอียด Baumer Magnetic Absolute Encoder Code EN580E.ML-TT12.GB11G.13120.H
Overview
- Absolute encoder multiturn
- Optical sensing method
- Resolution: singleturn 13 bit, multiturn 12 bit
- Maximum resistant against magnetic fields
- Connection: flange connector M23, 12-pin, CCW
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Short-circuit proof | Yes |
| Consumption w/o load | ≤80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Steps per revolution | 8192 / 13 bit |
| Number of revolutions | 4096 / 12 bit |
| Absolute accuracy | ±0.03 ° |
| Sensing method | Optical |
| Code | Gray |
| Code sequence | CW: ascending values with clockwise sense of rotation; looking at flange |
| Input signals | SSI clock Zero setting input Counting direction |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-4 |
| Approval | UL Class 2 |
| Technical data - mechanical design | |
|---|---|
| Size (flange) | ø58 mm |
| Shaft type | ø12 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side) IP 65 (housing side) |
| Operating speed | ≤6000 rpm (+25 °C) |
| Starting torque | ≤0.04 Nm |
| Motor shaft tolerance | ± 0.2 mm (axial offset) ≤ 0.1 mm (radial offset) ≤ 0.1 mm (concentricity) |
| Material | Housing: aluminium Shaft: stainless steel |
| Operating temperature | -25...+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6 Vibration 10 g, 10-2000 Hz EN 60068-2-27 Shock 100 g, 11 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CCW |
