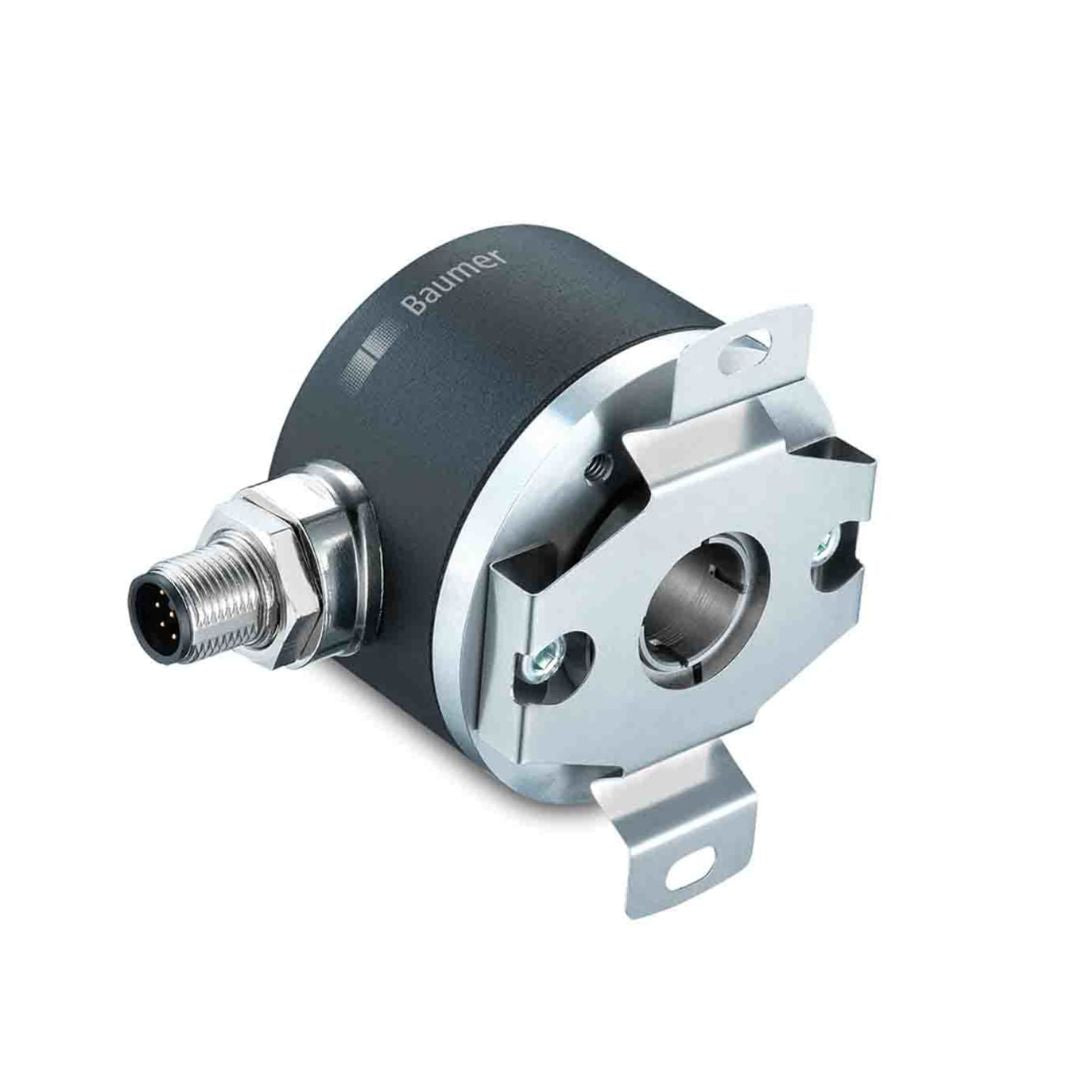

รายละเอียด Baumer EAM580 Series Magnetic Absolute Encoder Code EAM580R-BAC.7NC4.A36A1.A
Features
- Encoder single- or multiturn / Analog
- ISO 13849 compliant firmware
- E1 compliant design
- High protection up to IP 67
- High resistance to shock and vibrations
- Protection against corrosion C5-M
- Wire cross section 0.5 mm²
- Teach input for adjustment of measuring range
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 8...30 VDC 14...30 VDC |
| Reverse polarity protection | Yes |
| Consumption typ. | 20 mA (24 VDC, w/o load) |
| Initializing time | ≤170 ms after power on |
| Response time | <1 ms |
| Interface | Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit |
| Function | Multiturn, Singleturn |
| Teach range | 5°...359.9° (singleturn), 5°...32767 turns (multiturn) |
| Absolute accuracy | ±0.15 ° (+20 ±15 °C) ±0.25 ° (-40...+85 °C) sensor |
| Accuracy analog output | ±0.5 % of whole measuring range (-40...+85 °C) |
| Sensing method | Magnetic |
| Interference immunity | DIN EN 61000-6-2 ISO 11452-2:2004* / -5:2002* ISO 7637-2:2004* ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV) * Severity level according to ECE R10 (Rev. 4) |
| Emitted interference | DIN EN 61000-6-4 CISPR 25:2008 (30..1000 MHz) ISO 7637-2:2004* * Severity level according to ECE R10 (Rev. 4) |
| Programmable parameters | Measuring range teachable |
| Diagnostic function | DATAVALID |
| Factory setting | 360° and 10 revolutions (other on request) |
| Technical data - mechanical design | |
|---|---|
| Size (flange) | ø58 mm |
| Shaft type | ø10...15 mm (blind hollow shaft) |
| Protection DIN EN 60529 | IP 67 (with shaft seal) |
| Operating speed | ≤6000 rpm |
| Starting torque | ≤2.5 Ncm (+20 °C, IP 67) |
| Materials | Housing: steel, powder-coated Flange: aluminium Hollow shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist for ambient conditions C5-M (CX) according to ISO 12944-2 |
| Operating temperature | -40...+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Weight approx. | 250 g |
| Connection | Flange connector M12, 5-pin Cable 2 m |
| Instruction | Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately). |
