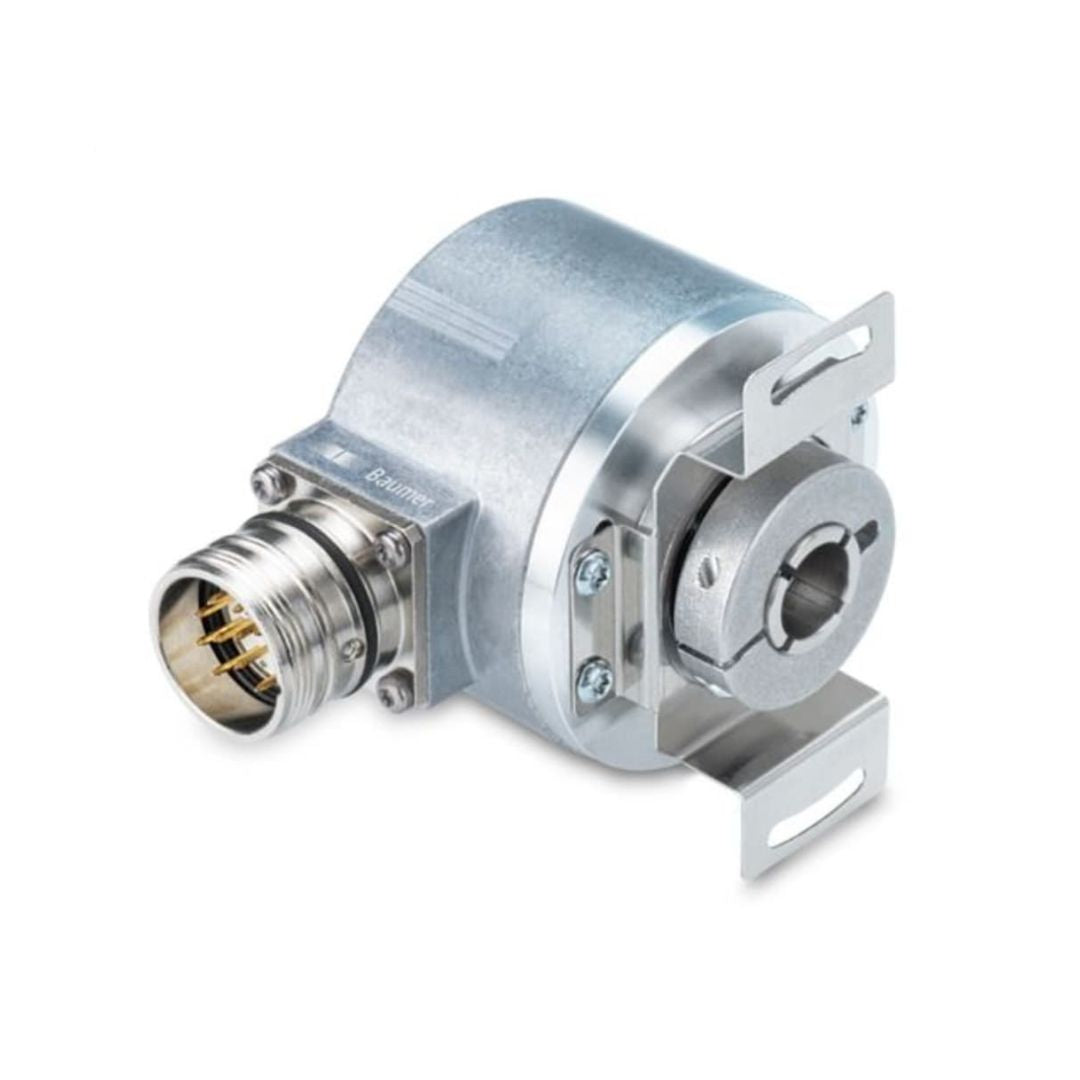

รายละเอียด Baumer EAM580 Series Magnetic Absolute Encoder, Code EAM580-SC0.7LC6.14180.A
Features
- Encoder single- or multiturn / CANopen®
- Precise magnetic sensing
- Angular accuracy up to ±0.15°
- Additional incremental signals
- High protection up to IP 67
- High resistance to shock and vibrations
- Electronic gear function
Optional
- Protection against corrosion C5-M
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 10...30 VDC |
| Consumption typ. | 20 mA (24 VDC, w/o load) |
| Initializing time | ≤170 ms after power on |
| Data currency | <1 ms |
| Interfaces | CANopen®, CANopen®-Lift, CANopen® + incremental |
| Function | Multiturn, Singleturn |
| Profile conformity | CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406, DS 417 |
| Steps per revolution | ≤16384 / 14 bit |
| Number of revolutions | ≤262144 / 18 bit |
| Absolute accuracy | ±0.15 ° (+20 ±15 °C) ±0.25 ° (-40...+85 °C) |
| Sensing method | Magnetic |
| Code sequence | CW: ascending values with clockwise sense of rotation; looking at flange |
| Output stages | CAN-Bus, LV (3.3 V) compatible ISO 11898 Incremental: linedriver RS422 or push-pull (option) |
| Incremental output | 1024, 2048, 4096 ppr (other on request) |
| Output signals | A+, A-, B+, B |
| Output frequency | ≤350 kHz |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-4 |
| Technical data - mechanical design | |
|---|---|
| Size (flange) | ø58 mm |
| Shaft type | ø10 x 20 mm, solid shaft with flat |
| Flange | Clamping flange |
| Protection DIN EN 60529 | IP 65 (without shaft seal), IP 67 (with shaft seal) |
| Operating speed | ≤6000 rpm |
| Starting torque | ≤2 Ncm (+20 °C, IP 65) ≤2.5 Ncm (+20 °C, IP 67) |
| Admitted shaft load | ≤40 N axial ≤80 N radial |
| Materials | Housing: steel zinc-coated Flange: aluminium Shaft: stainless steel |
| Operating temperature | -40...+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Weight approx. | 250 g |
| Connection | Flange connector M12, 5-pin Flange connector M12, 8-pin Cable 2 m |
