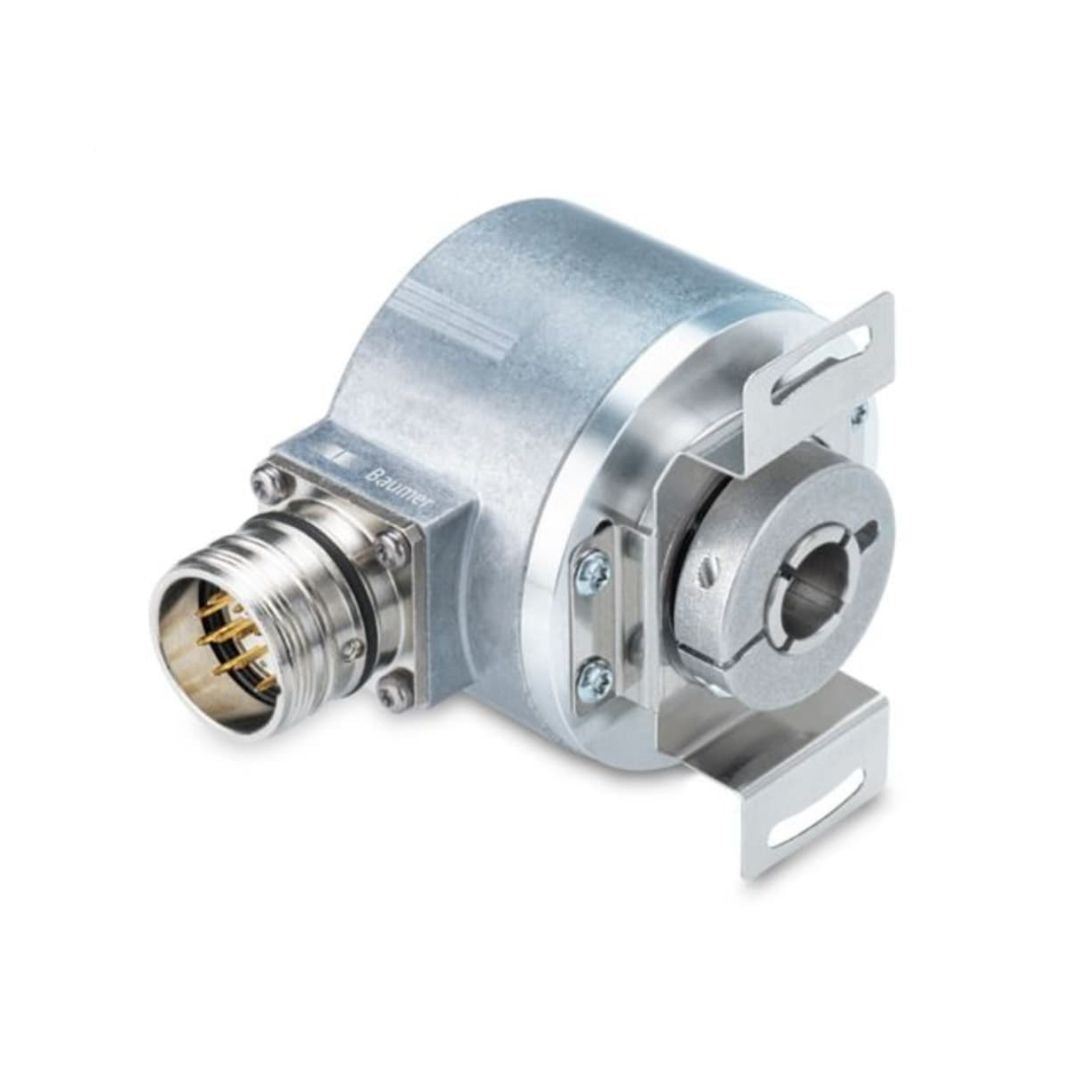

รายละเอียด Baumer EAL580 Series Optical Absolute Encoder Code EAL580-SC0.5WEC.13160.A
Features
- Absolute encoder multiturn
- Optical sensing method
- Max. resolution: singleturn 18 bit, multiturn 16 bit
- Clamping flange
- LED status display
- EtherCAT
- Maximum resistant against magnetic fields
Optional
- Button for Preset
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 10...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤100 mA (24 VDC) |
| Interface | EtherCAT |
| Function | Multiturn |
| Steps per revolution | ≤262144 / 18 bit (adjustable) |
| Number of revolutions | ≤65536 / 16 bit (adjustable) |
| Total resolution | ≤31 bit |
| Absolute accuracy | ±0.01 ° (ST 18 bit / MT 13 bit) ±0.025 ° (ST 13 bit / MT 16 bit) |
| Sensing method | Optical |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-4 |
| Status indicator | 4x LED integrated in housing |
| Approval | UL approval / E63076 |
| Technical data - mechanical design | |
|---|---|
| Size (flange) | ø58 mm |
| Shaft type | ø10 x 20 mm, solid shaft with flat |
| Flange | Clamping flange |
| Protection DIN EN 60529 | IP 54, IP 65, IP 67 |
| Operating speed | ≤10000 rpm (mechanical) ≤6000 rpm (electric) |
| Starting acceleration | ≤1000 U/s² |
| Starting torque | ≤0.03 Nm (+25 °C, IP 65/IP 67) ≤0.015 Nm (+25 °C, IP 54) |
| Rotor moment of inertia | 20 gcm² |
| Admitted shaft load | ≤20 N axial ≤40 N radial |
| Materials | Housing: zinc diecast Flange: aluminium |
| Operating temperature | -40...+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration ±0.75 mm - 10-58 Hz 10 g - 58-2000 Hz DIN EN 60068-2-27 Shock 200 g, 3 ms |
| Weight approx. | 500 g |
| Connection | Flange connector 3 x M12 |
