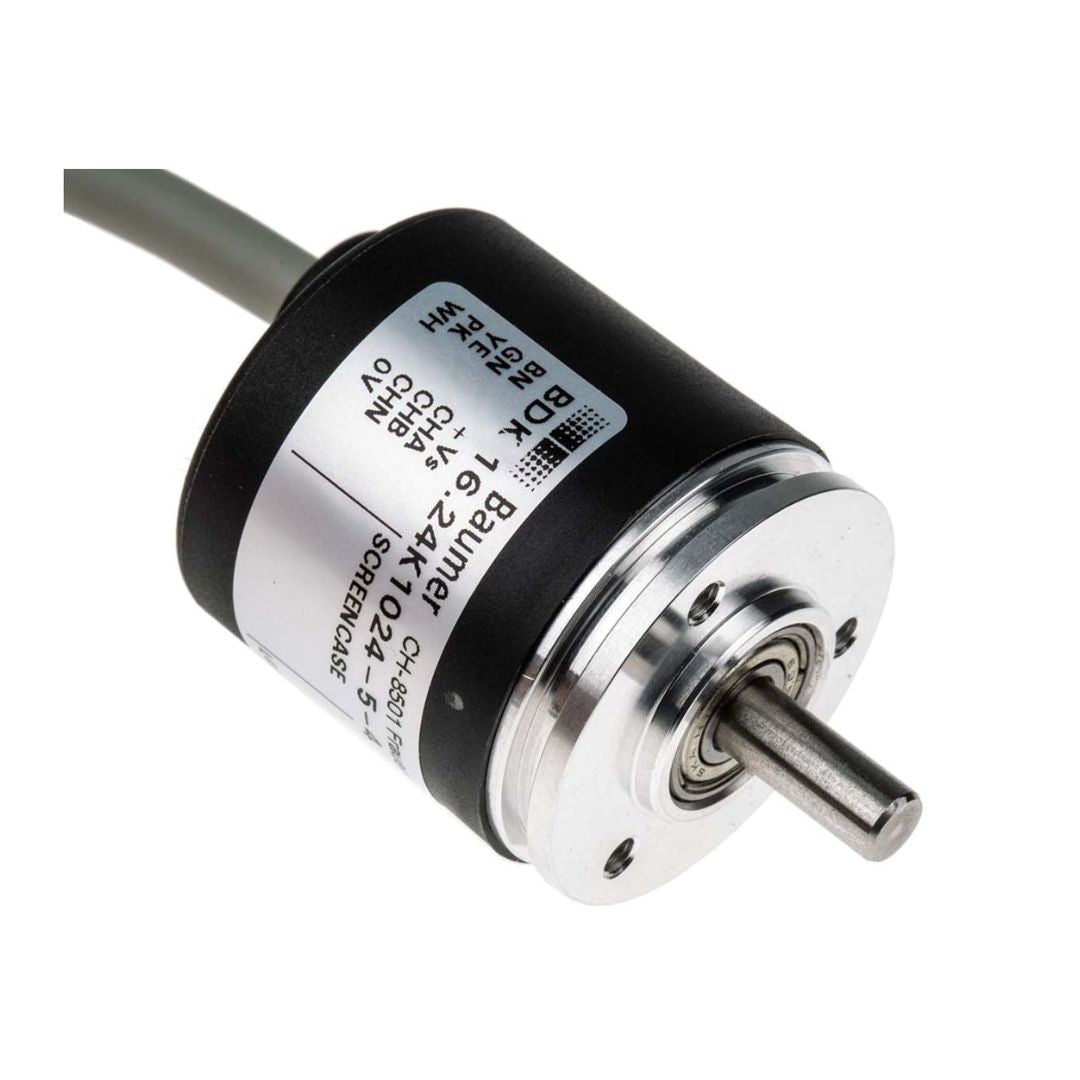

รายละเอียด Baumer BDK Series Optical Incremental Encoder Code BDK 16.24K.0100-5-4
Features
- Mini encoder with solid shaft ø5 mm
- Optical sensing method
- Max. 2048 pulses per revolution
- Housing ø30 mm
- Operation speed max. 12000 rpm
- Synchro flange
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 5 VDC ±10 % 10...30 VDC |
| Consumption typ. | 60 mA (5 VDC, w/o load) 30 mA (24 VDC, w/o load) |
| Pulses per revolution | 10...2048 |
| Reference signal | Zero pulse, width 90° |
| Sensing method | Optical |
| Output frequency | ≤100 kHz |
| Output signals | A 90° B, N + inverted |
| Output stages | Linedriver/RS422 Push-pull short-circuit proof |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-3 |
| Approval | UL approval / E217823 |
| Technical data - mechanical design | |
|---|---|
| Size (flange) | ø30 mm |
| Shaft type | ø5 mm solid shaft |
| Admitted shaft load | ≤10 N axial ≤10 N radial |
| Flange | Synchro flange |
| Protection DIN EN 60529 | IP 42, IP 65 |
| Operating speed | ≤12000 rpm (IP 42) ≤6000 rpm (IP 64) |
| Operating torque typ. | 0.0014 Nm (IP 42) 0.0075 Nm (IP 64) |
| Materials | Housing: polyamide black Flange: aluminium |
| Operating temperature | -20...+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration 10 g, 16-200 Hz DIN EN 60068-2-27 Shock 50 g, 11 ms |
| Connection | Connector M9, 5-pin Connector M9, 8-pin Cable 1 m |
| Weight approx. | 85 g |
