โซลินอยด์วาล์ว SMC 5/2 Solenoid/Pilot G One-touch Fitting 6 mm SY5000 Series 24V dc

โซลินอยด์วาล์ว SMC 5/2 Solenoid/Pilot G One-touch Fitting 6 mm SY5000 Series 24V dc

SMC

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
3,046.00 ฿
3,046.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด โซลินอยด์วาล์ว SMC 5/2 Solenoid/Pilot G One-touch Fitting 6 mm SY5000 Series 24V dc

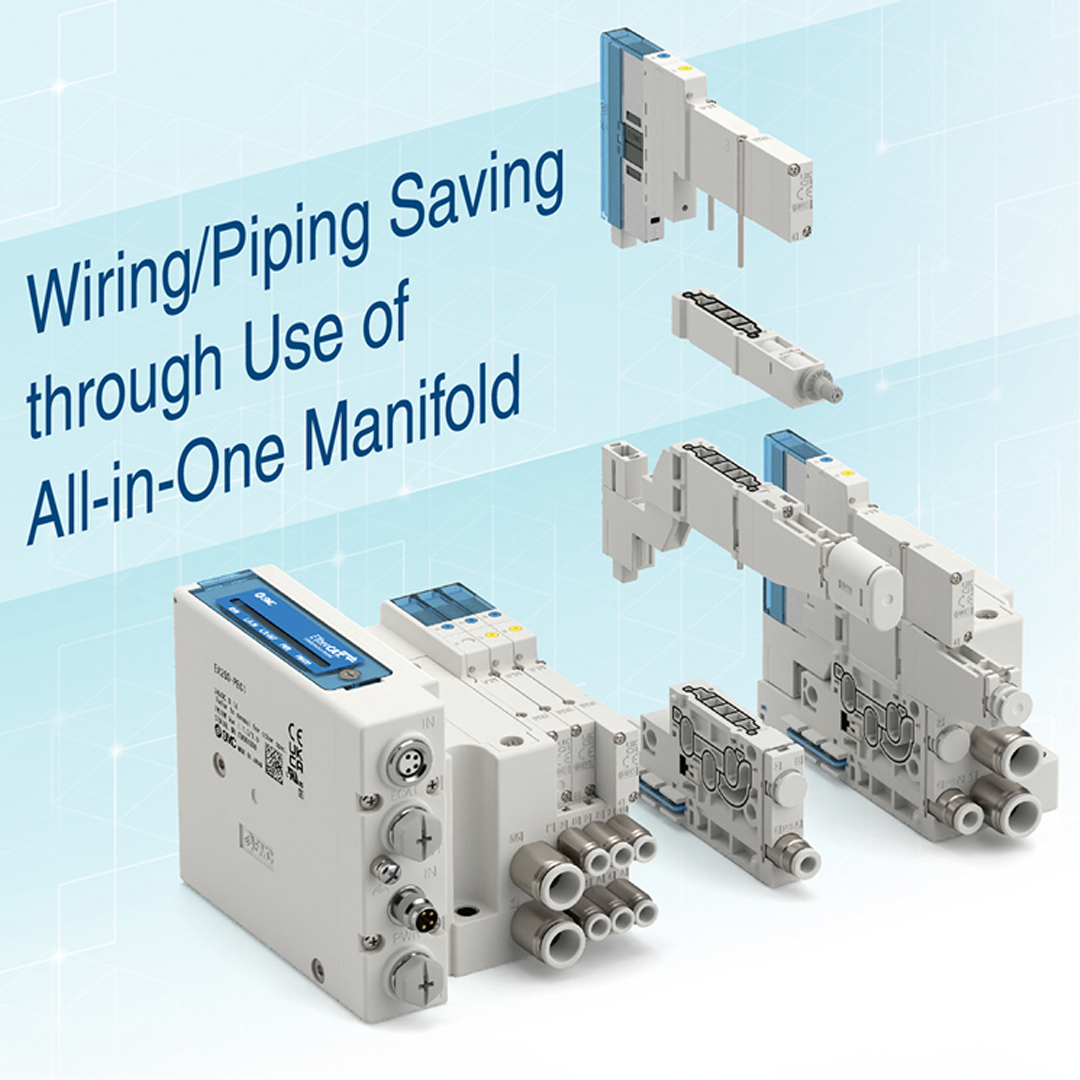

  • SY5000 solenoid valves are extremely compact and offer high flow rates. They operate with reduced power consumption and have a power saving circuit to ensure energy efficiency. The valve cover also uses stainless steel and is therefore stronger.
Specifications
Manufacturer Series SY5000
Mounting Style Manifold
Function 44683
Connection Port Thread G One-touch Fitting 6 mm
Actuation Type Solenoid/Pilot
Solenoid Fitted Yes
Body Material Die Cast Aluminium
Solenoid Voltage 24V dc
Solenoid Power Consumption 0.5W
Minimum Operating Pressure 0.15MPa
Maximum Operating Temperature +50°C
Maximum Operating Pressure 0.7 MPa
Thread Size 6mm
Number of Ports 44683
Thread Standard G
