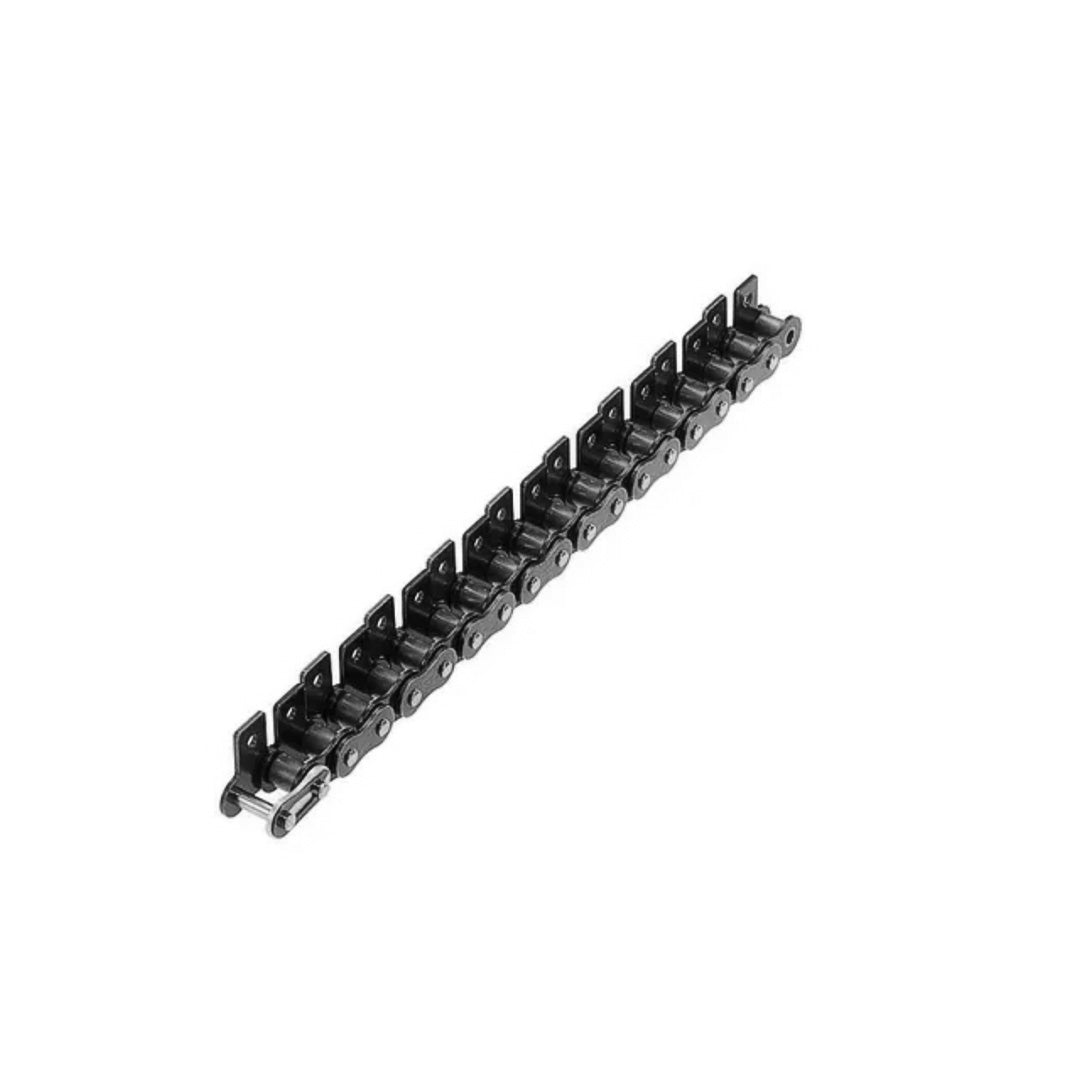

โซ่ TSUBAKI เบอร์ RS50-1LK1

Name: โซ่ TSUBAKI เบอร์ RS50-1LK1
Brand: TSUBAKI
Price: 13104.0 THB
Availability: InStock

TSUBAKI

13,104.00 ฿

ลดราคา ขายหมดแล้ว

รายละเอียด โซ่ TSUBAKI เบอร์ RS50-1LK1

chain number	[50] RS50
Material	steel
Allowable tension (range selection) (kN)	2.71 to 5.00
kinds	chain body
type	Link
Pitch P(mm)	15.8
(Body part) Roller diameter (mm)	10.1
Inner link inner width W (mm)	9.5
Plate thickness T(mm)	2
Plate width H(mm)	15
Pin diameter D(mm)	Five
Pin L1(mm)	10.3
Pin L2(mm)	12
Attachment type	K1
Attachment mounting interval	1L
Attachment C(mm)	15.9
Attachment C1(mm)	-
Attachment N(mm)	12.7
Attachment O(mm)	5.2
Attachment S(mm)	10.3
Attachment X(mm)	23.4
Attachment X2(mm)	23.4
Attachment XS(mm)	-
Attachment NW (outside) (mm)	-
Attachment NW (inside) (mm)	-
Attachment KW(mm)	-
Average tensile strength (kN)	27.5
Maximum allowable tension (kN)	4.31
