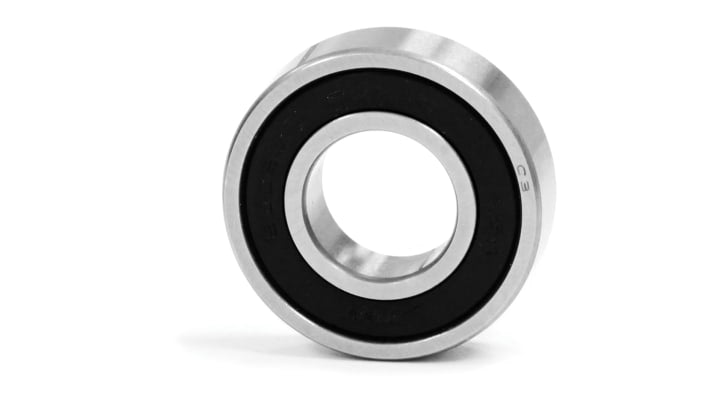

ตลับลูกปืน NSK 6200VVC3E
ตลับลูกปืน NSK 6200VVC3E
NSK
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
280.26 ฿
ราคาปกติ
ราคาโปรโมชัน
280.26 ฿
ราคาต่อหน่วย
/
ต่อ
รายละเอียด ตลับลูกปืน NSK 6200VVC3E
NSK special deep groove ball bearings: these ball bearings are designed with various different features and characteristics depending. Whether it be the adaptation of a standard bearing or a completely new development of a bearing – every solution is implemented with NSK’s guarantee of quality.
Excellent resistance to oxidation, heat, rust and water
Excellent high temperature performance due to special sealing materials
Low noise levels
Stronger outer ring with special profile or with flange for mounting
Use of high temperature grease
Offers long-life lubrication, even at high temperatures
Low frictional torque as a result of the use of a labyrinth seal
Minimum grease leakage and minimum corrosion in damp environments
Other bearing variants available on request:
Outer and inner ring: diameter, width, threads etc.
Contour options: crowned, gothic etc.
Special seals
Mechanical engineering
High Speed
High Temperature
Low Noise
Agriculture
Food and Beverage
Excellent high temperature performance due to special sealing materials
Low noise levels
Stronger outer ring with special profile or with flange for mounting
Use of high temperature grease
Offers long-life lubrication, even at high temperatures
Low frictional torque as a result of the use of a labyrinth seal
Minimum grease leakage and minimum corrosion in damp environments
Other bearing variants available on request:
Outer and inner ring: diameter, width, threads etc.
Contour options: crowned, gothic etc.
Special seals
Mechanical engineering
High Speed
High Temperature
Low Noise
Agriculture
Food and Beverage
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
Inside Diameter | 10mm |
Outside Diameter | 30mm |
Ball Bearing Type | Deep Groove |
Race Width | 9mm |
End Type | Sealed |
Number of Rows | 1 |
Static Load Rating | 2390N |
Cage Material | Pressed Steel |
Race Type | Plain |
Dynamic Load Rating | 5100 N, 5350 N |
