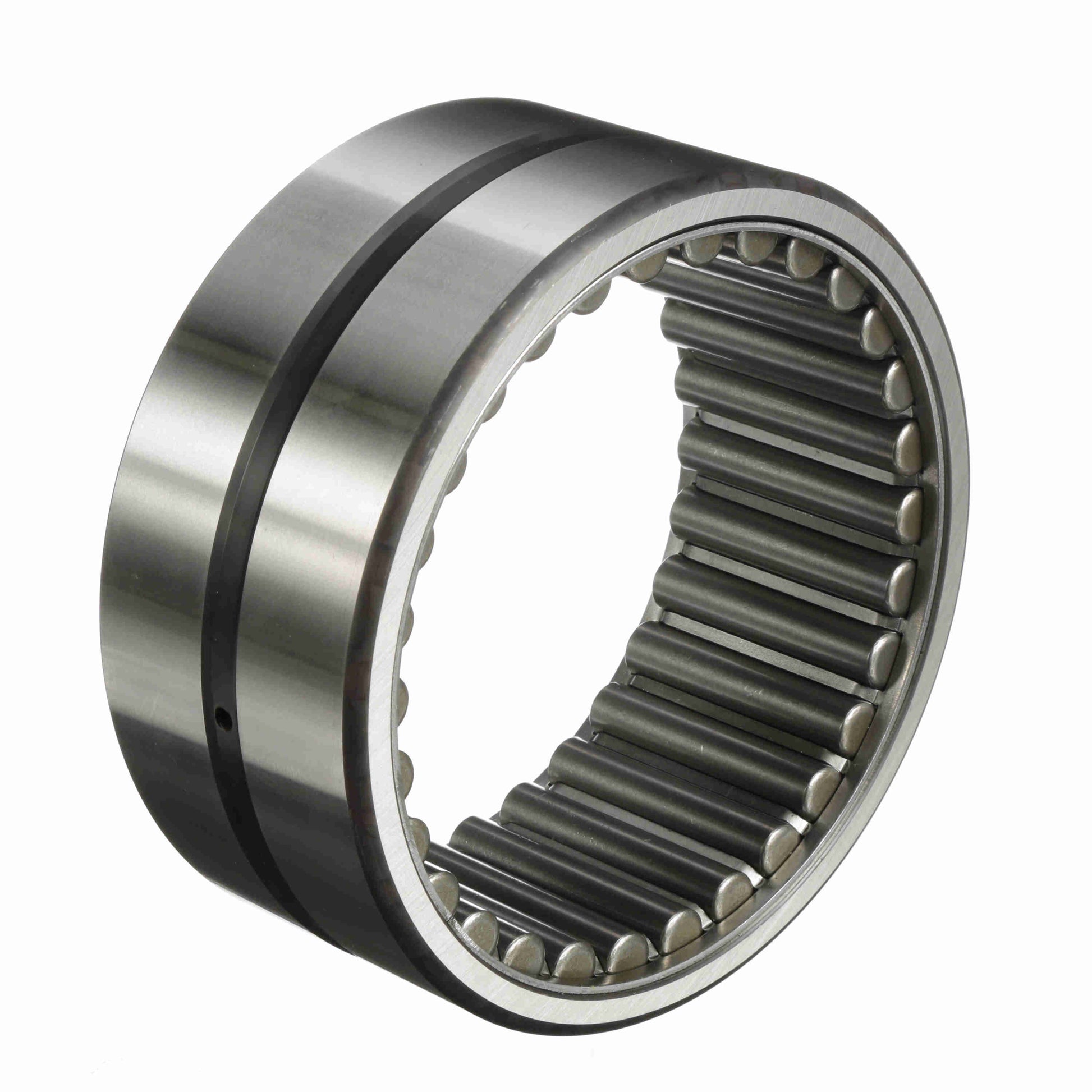

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 88
General Specifications
| UPC: | 726166064631 | Weight: | 9.43 LB |
| Packaged Length: | 7.4 Inches | Packaged Width: | 7.3 Inches |
| Packaged Height: | 3.3 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 3 | Hole Diameter: | 0.188 |
| Outside Diameter - Inch: | 7 in | Bore Size - Inch: | 5.5000 in |
| Housing & Shaft Fillet (in): | 0.1 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Speed (Max) Grease: | 1,100 | Dynamic Load Rating: | 85,700 |
| Sealed: | None | Static Load Rating (lb): | 222,000 lb |
| Platform: | Cagerol Bearing | Full Complement/Caged: | Caged |
| Speed (Max) Oil: | 2,180 | Duplexing: | No |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 72 | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Operating Temperature Range: | -20 to 250 °F |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
