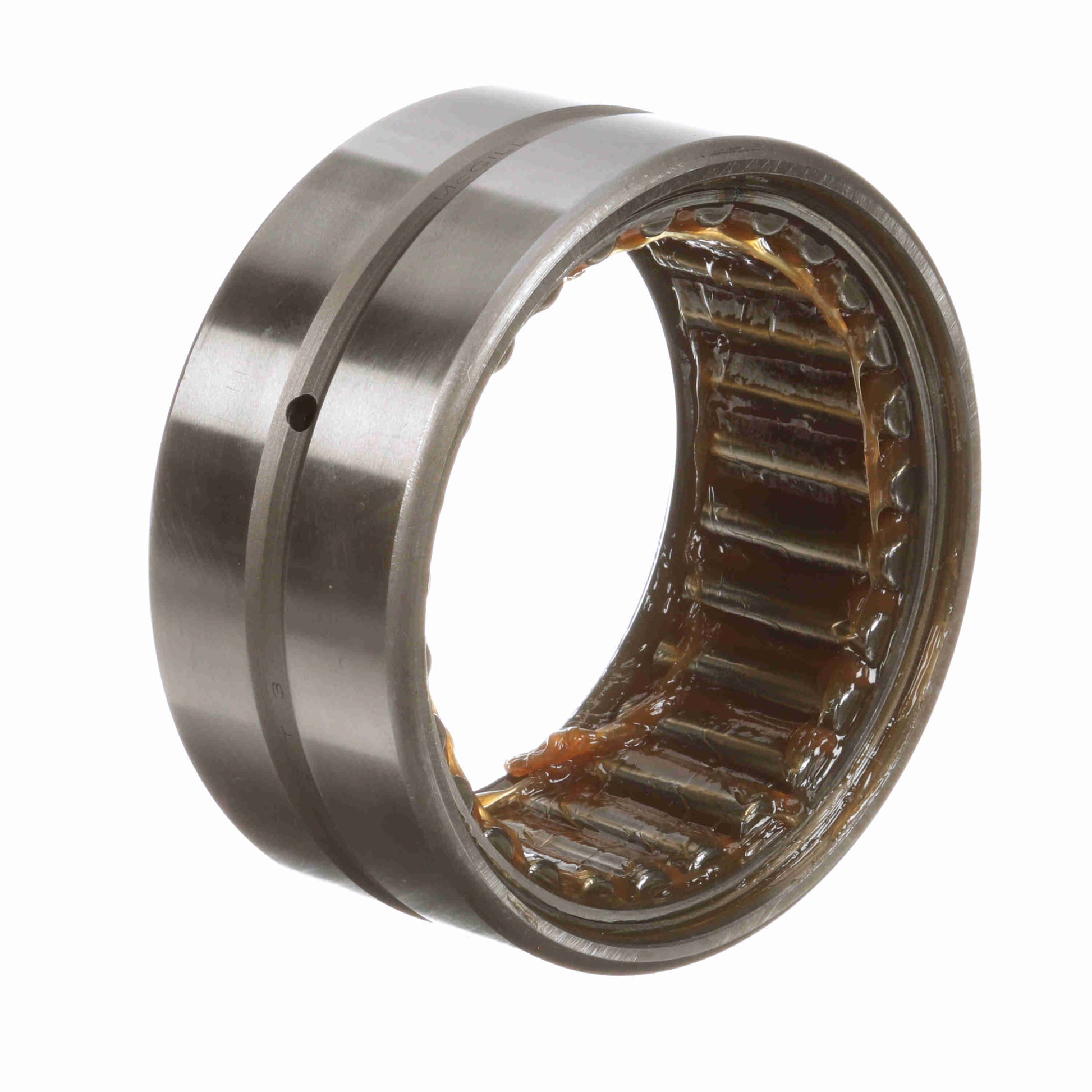

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 56 S
General Specifications
| UPC: | 726166064211 | Weight: | 3.18 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Bore Size - Inch: | 3.5000 in |
| Hole Diameter: | 0.188 | Outside Diameter - Inch: | 4.5 in |
| Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Sealed: | Sealed - One Side | Duplexing: | No |
| Speed (Max) Grease: | 1,090 | Dynamic Load Rating: | 31,300 |
| Static Load Rating (lb): | 71,600 lb | Full Complement/Caged: | Caged |
| Platform: | Cagerol Bearing | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 46 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Enclosure: | Sealed One Side |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Retainer: | Yes |
