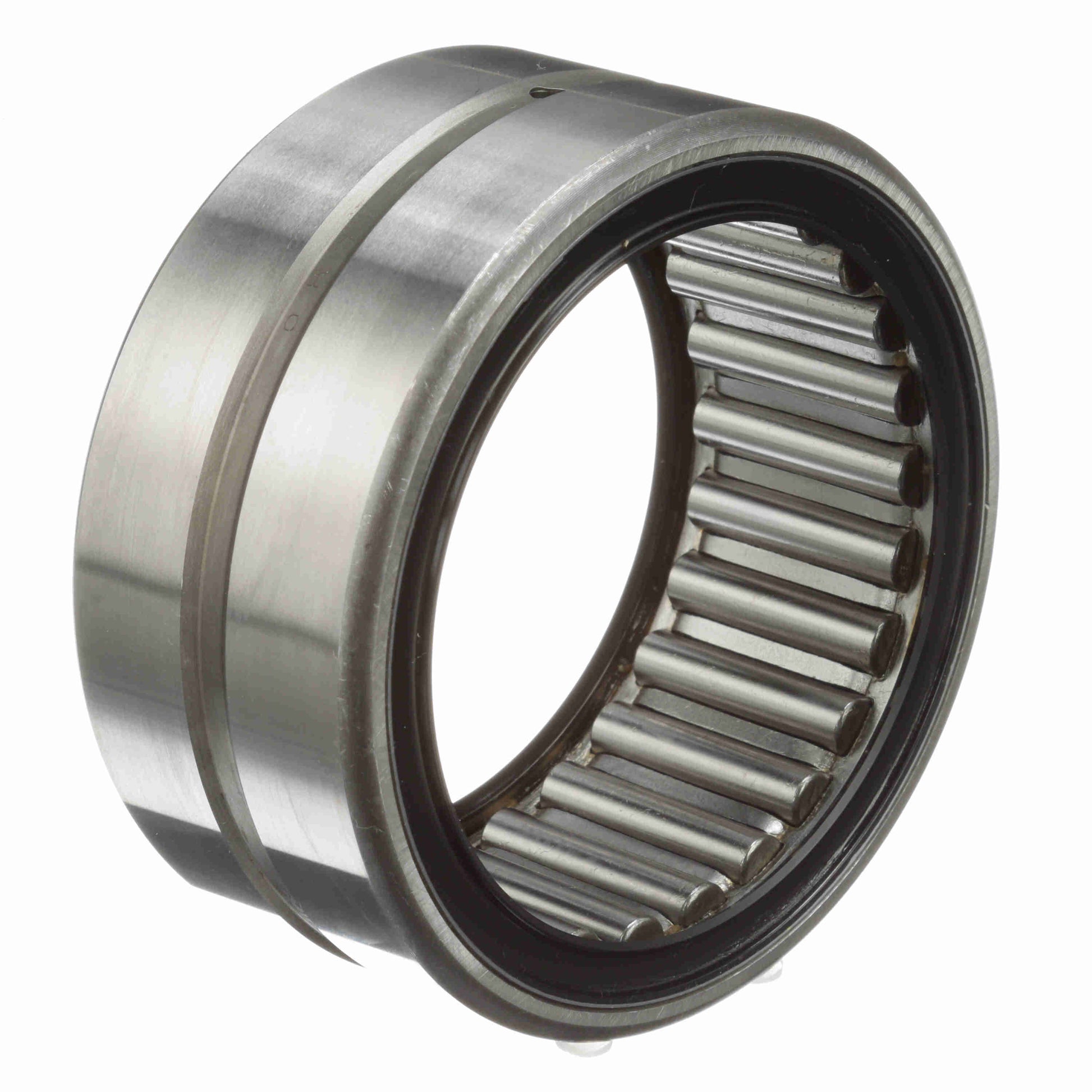

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 56 RSS
General Specifications
| UPC: | 726166064266 | Weight: | 2.52 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 4.5 in | Hole Diameter: | 0.188 |
| Bore Size - Inch: | 3.5000 in |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Full Complement/Caged: | Caged | Speed (Max) Oil: | 1,090 |
| Static Load Rating (lb): | 71,600 lb | Dynamic Load Rating: | 31,300 |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease: | 545 |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Related Inner Ring: | MI 46 | Precision Rating: | RBEC-1 |
| Operating Temperature Range: | -20 to 250 °F | Lubrication Hole Type: | Lubrication groove and hole |
| Flanges: | No flange | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
