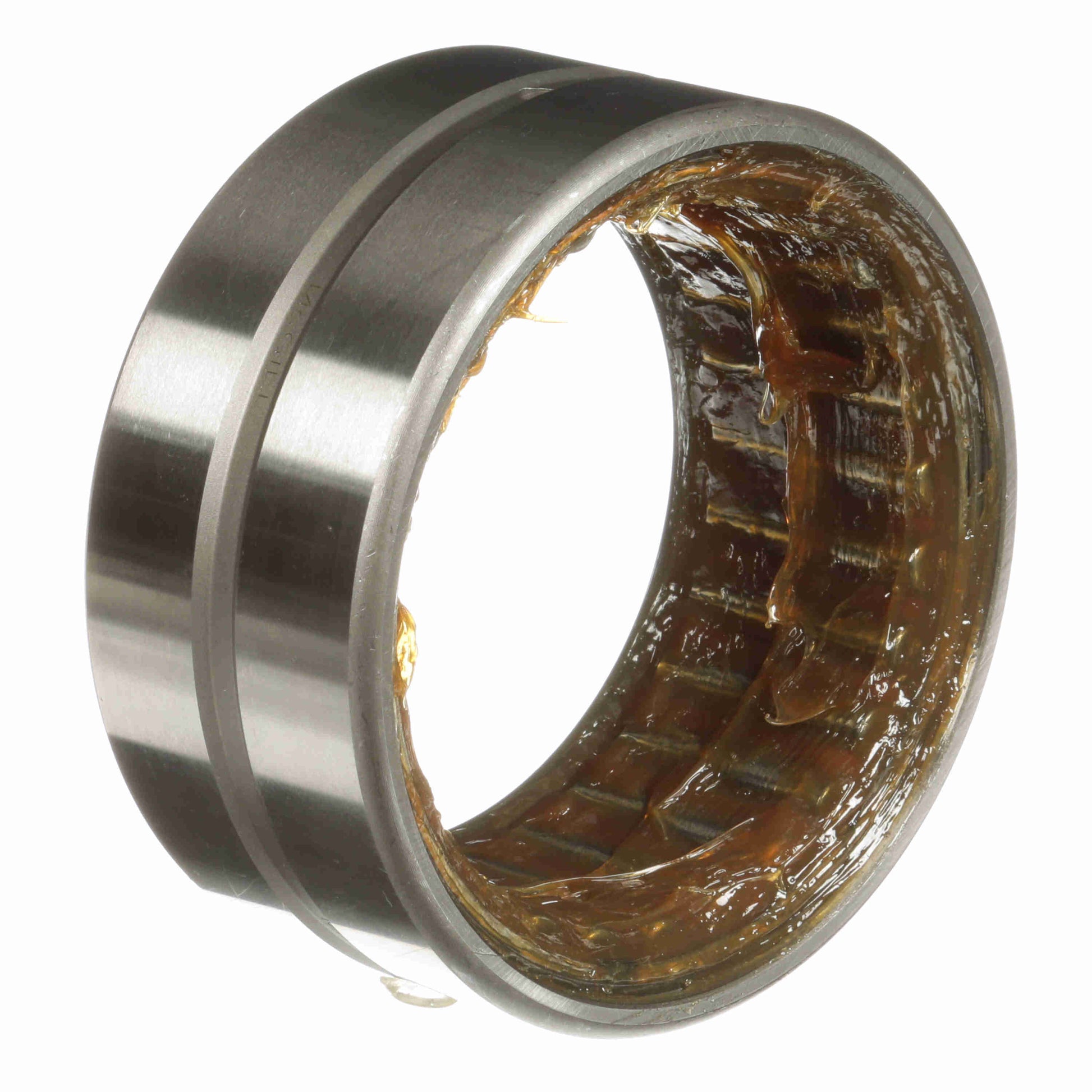

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 56 RS
General Specifications
| UPC: | 726166064242 | Weight: | 2.61 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Bore Size - Inch: | 3.5000 in |
| Outside Diameter - Inch: | 4.5 in | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Bore Type: | Straight | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Misalignment: | No |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Sealed: | Sealed - One Side | Speed (Max) Grease: | 1,090 |
| Duplexing: | No | Static Load Rating (lb): | 71,600 lb |
| Platform: | Cagerol Bearing | Dynamic Load Rating: | 31,300 |
| Full Complement/Caged: | Caged | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 46 | Precision Rating: | RBEC-1 |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed One Side |
| Retainer: | Yes |
