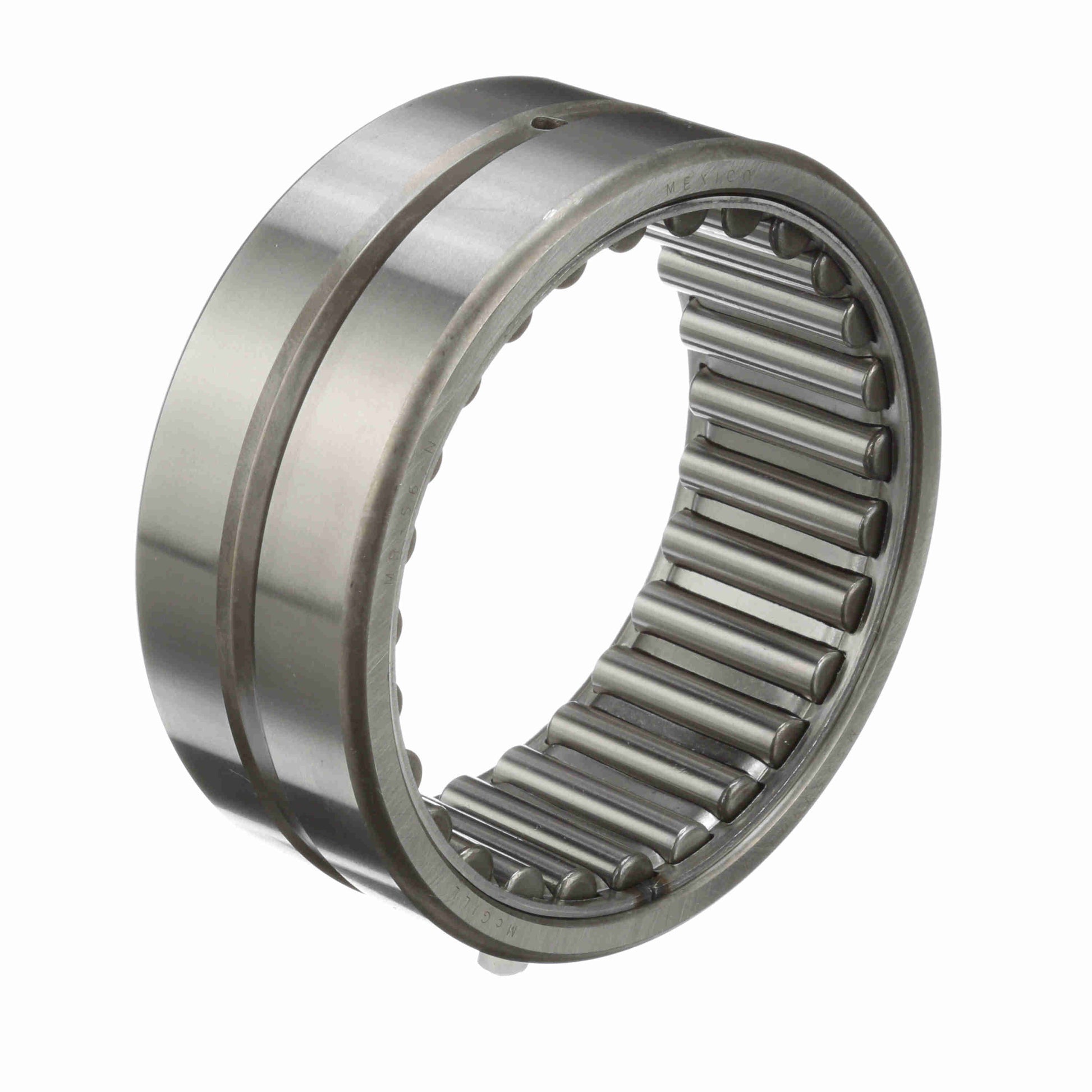

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 56 N
General Specifications
| UPC: | 726166064273 | Weight: | 2.21 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Outside Diameter - Inch: | 4.5 in |
| Housing & Shaft Fillet (in): | 0.08 in | Hole Diameter: | 0.188 |
| Bore Size - Inch: | 3.5000 in |
Technical Specifications
| Series: | Narrow | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Radial Clearance: | Normal | Misalignment: | No |
| Dynamic Load Rating: | 31,300 | Static Load Rating (lb): | 71,600 lb |
| Duplexing: | No | Speed (Max) Grease: | 1,720 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Speed (Max) Oil: | 3,440 | Sealed: | None |
| Lubrication Hole Type: | Lubrication Groove & Hole | Standard Met: | ABMA, ISO |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No Flanges |
| Related Inner Ring: | MI 48 N | Precision Rating: | RBEC-1 |
| Separable: | Nonseparable | Enclosure: | Open |
| Component Type: | Outer race only | Retainer: | Yes |
