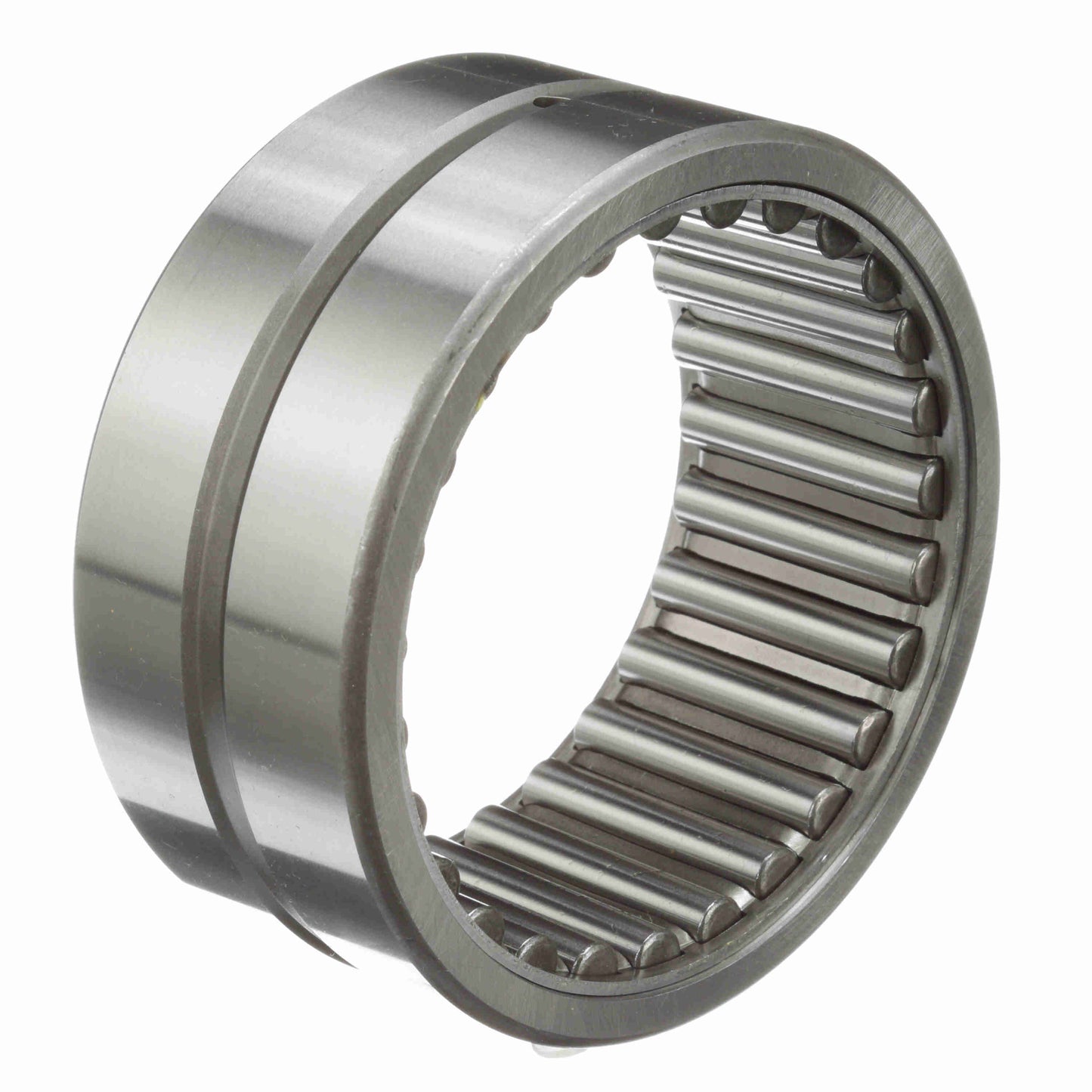

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 56
General Specifications
| UPC: | 726166064174 | Weight: | 2.69 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Bore Size - Inch: | 3.5000 in |
| Outside Diameter - Inch: | 4.5 in | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Series: | Standard | Includes Inner Ring: | No |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Platform: | Cagerol Bearing | Duplexing: | No |
| Sealed: | None | Static Load Rating (lb): | 83,500 lb |
| Dynamic Load Rating: | 35,900 | Full Complement/Caged: | Caged |
| Speed (Max) Grease: | 1,720 | Speed (Max) Oil: | 3,440 |
| Lubrication Hole Type: | Lubrication groove and hole | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No flange | Standard Met: | ABMA, ISO, MS 51961-42 |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 47, MI 48 |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Open | Retainer: | Yes |
