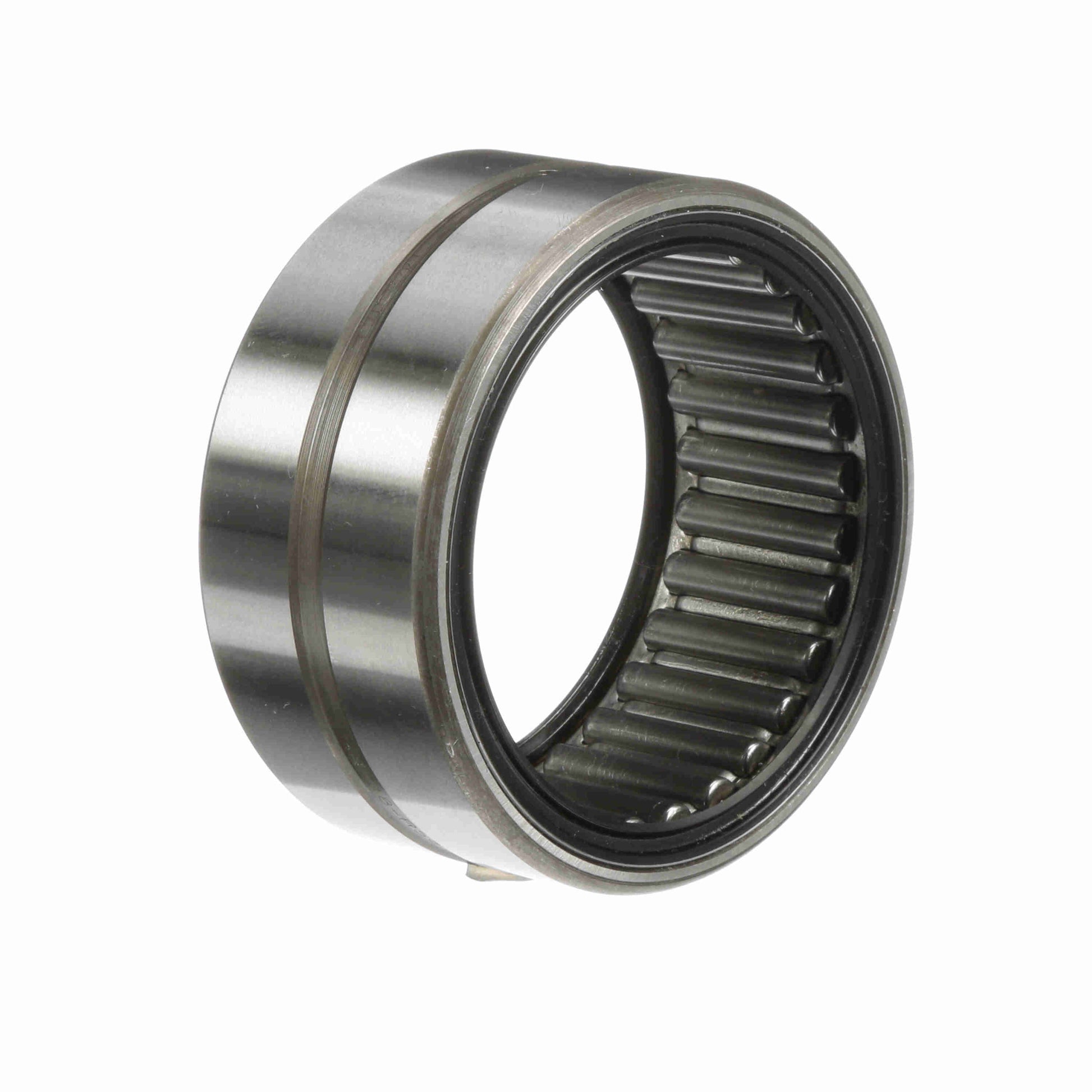

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 48 RSS
General Specifications
| UPC: | 726166068097 | Weight: | 1.45 LB |
| Packaged Length: | 3.87 Inches | Packaged Width: | 1.87 Inches |
| Packaged Height: | 3.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Bore Size - Inch: | 3 in |
| Outside Diameter - Inch: | 3.75 in | Housing & Shaft Fillet (in): | 0.08 in |
| Hole Diameter: | 0.125 |
Technical Specifications
| Series: | Standard | Material: | 52100 Bearing Steel |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Dynamic Load Rating: | 26,100 | Speed (Max) Grease: | 1,270 |
| Static Load Rating (lb): | 52,300 lb | Sealed: | Sealed - Both Sides |
| Platform: | Cagerol Bearing | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 38, MI 39, MI 40 |
| Standard Met: | ABMA, ISO | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
