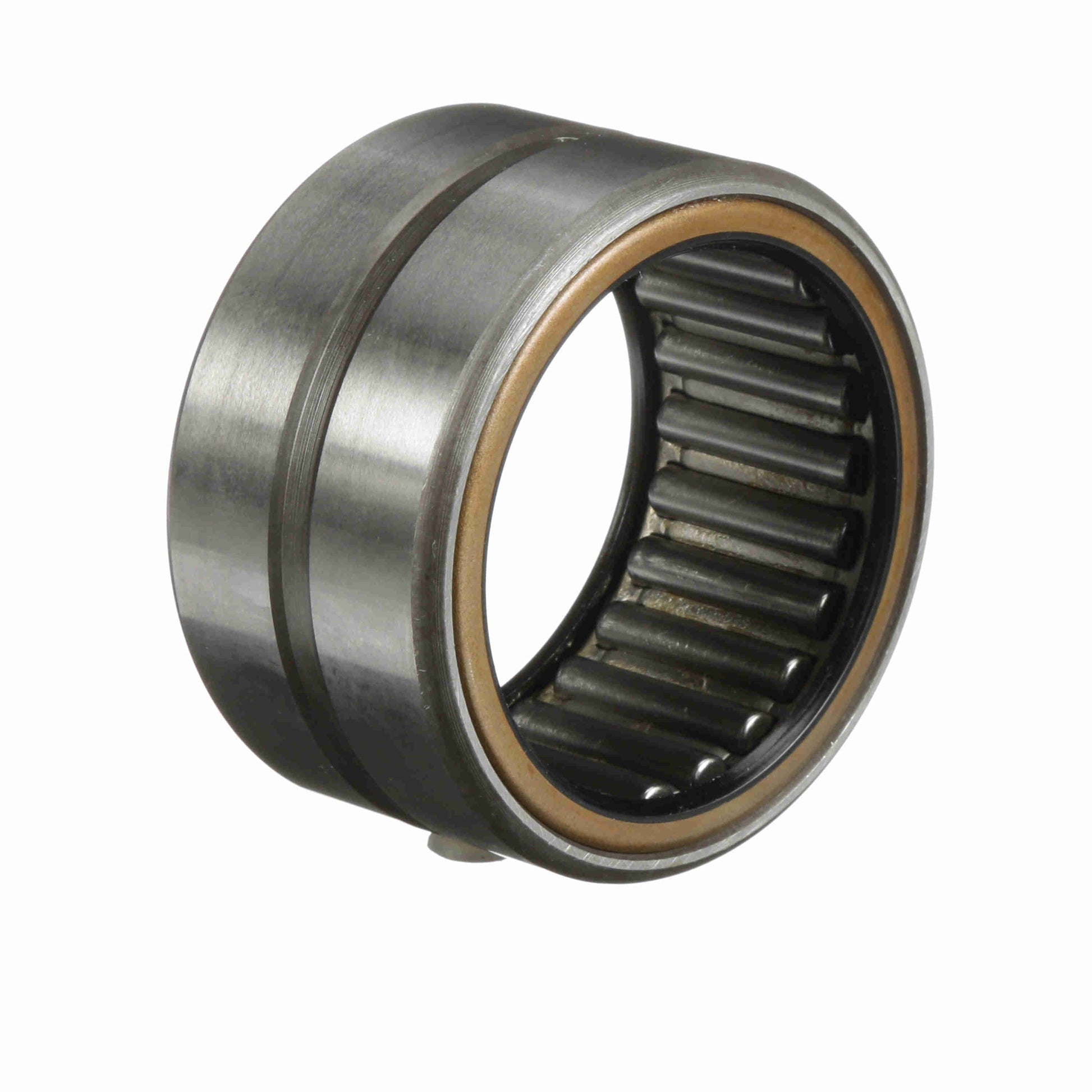

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 40 SS
General Specifications
| UPC: | 726166067649 | Weight: | 1.64 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Housing & Shaft Fillet (in): | 0.08 in |
| Outside Diameter - Inch: | 3.25 in | Bore Size - Inch: | 2.5000 in |
| Hole Diameter: | 0.125 |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Number of Rows: | 1 | Rolling Element: | Needle Roller |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Seal Type: | Rubber Lip |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Static Load Rating (lb): | 42,900 lb | Sealed: | Sealed - Both Sides |
| Speed (Max) Grease: | 1,530 | Duplexing: | No |
| Dynamic Load Rating: | 23,400 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Related Inner Ring: | MI 31, MI 32, MI 34 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Separable: | Nonseparable |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Retainer: | Yes |
