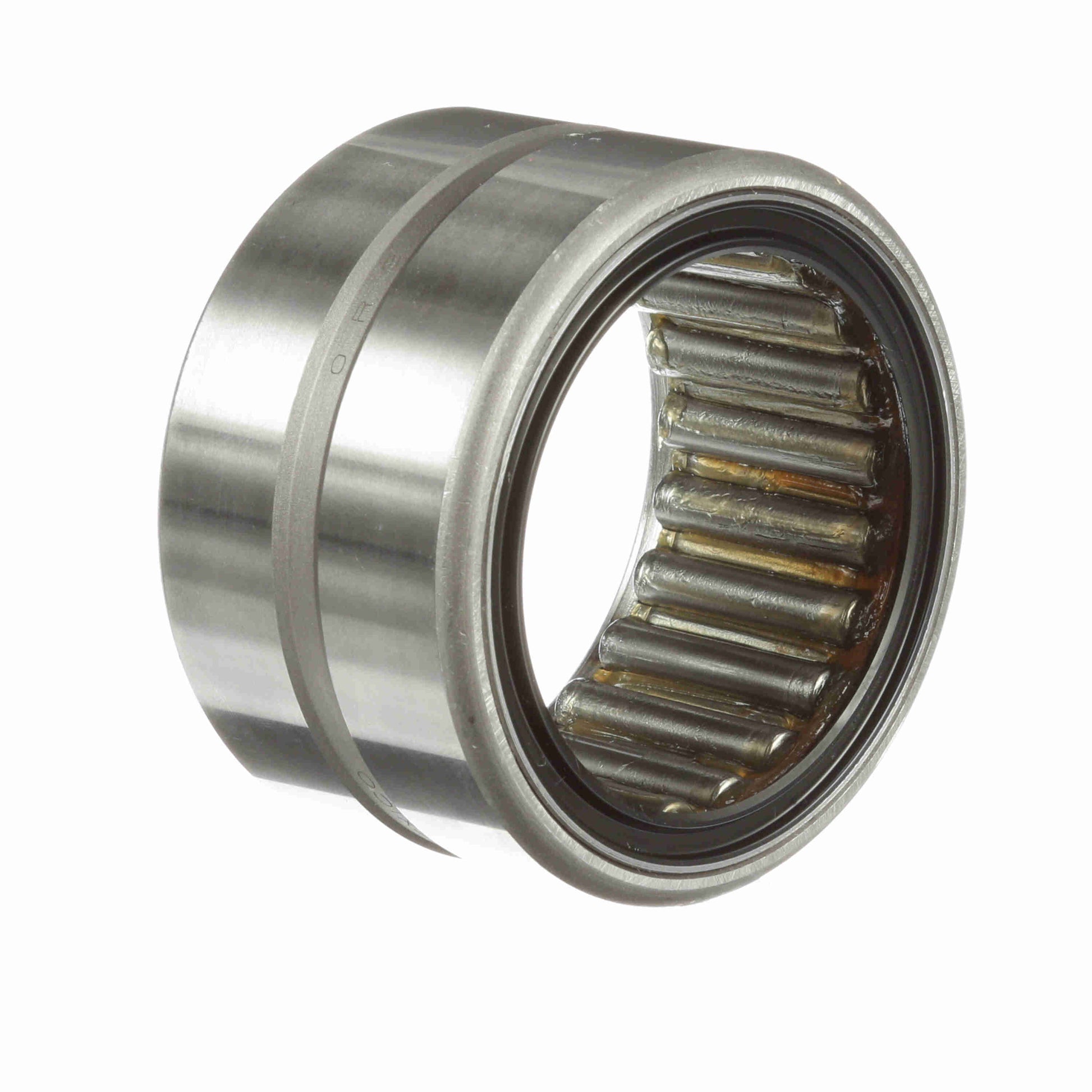

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 36 RS
General Specifications
| UPC: | 726166067458 | Weight: | 1.06 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Bore Size - Inch: | 2.2500 in | Outside Diameter - Inch: | 3 in |
| Housing & Shaft Fillet (in): | 0.06 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Series: | Standard |
| Includes Inner Ring: | No | Cage Material: | Steel |
| Radial Clearance: | Normal | Number of Rows: | 1 |
| Seal Type: | Rubber Lip | Rolling Element: | Needle Roller |
| Bore Type: | Straight | Misalignment: | No |
| Sealed: | Sealed - One Side | Dynamic Load Rating: | 22,400 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 1,700 | Static Load Rating (lb): | 39,100 lb |
| Duplexing: | No | Operating Temperature Range: | -20 to 250 °F |
| Flanges: | No Flanges | Related Inner Ring: | MI 28, MI 30 |
| Precision Rating: | RBEC-1 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Component Type: | Outer race only |
| Separable: | Nonseparable | Enclosure: | Sealed One Side |
| Retainer: | Yes |
