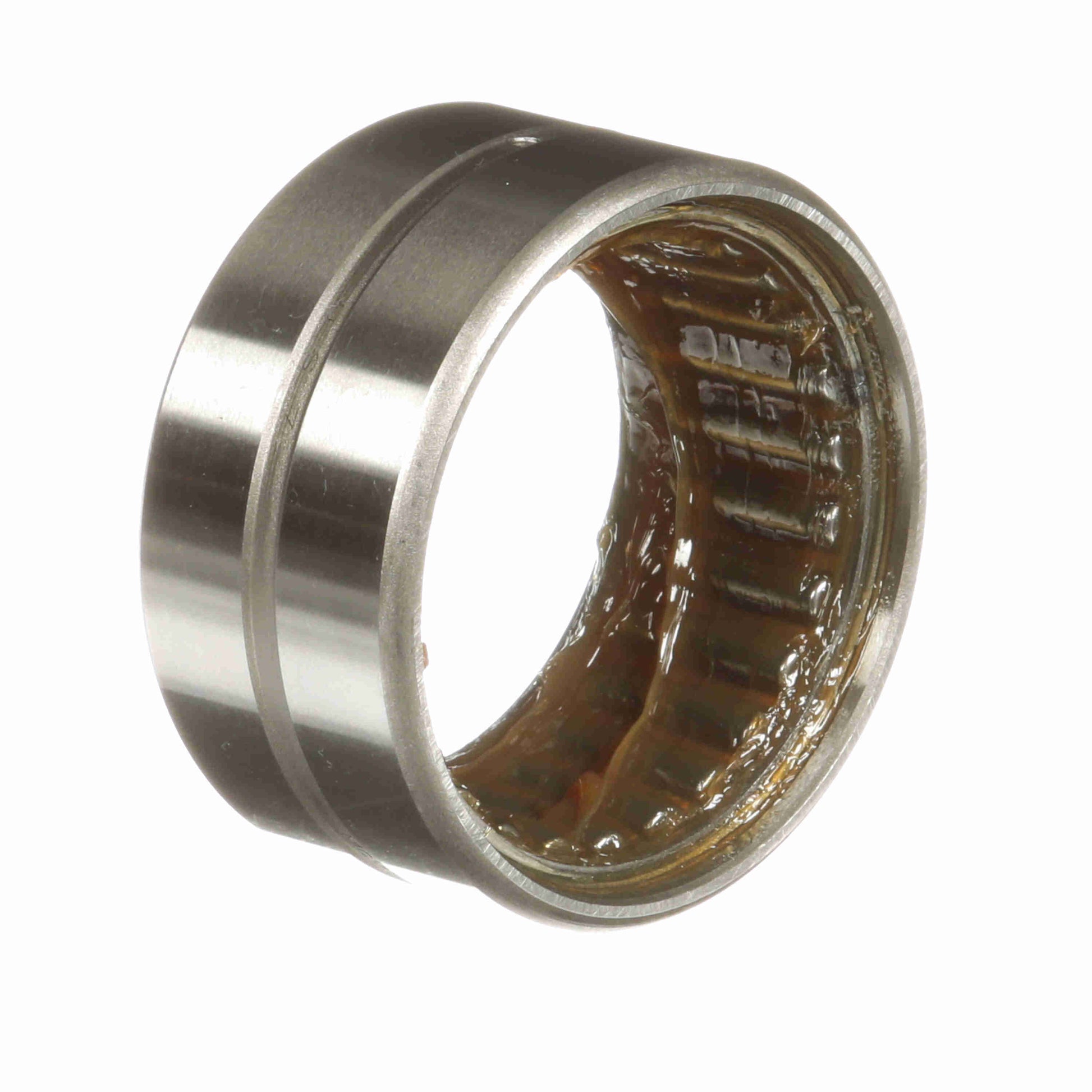

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - Sealed - MR 32 S
General Specifications
| UPC: | 726166067205 | Weight: | 0.54 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 2 in |
| Housing & Shaft Fillet (in): | 0.06 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 2.5625 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Number of Rows: | 1 | Bore Type: | Straight |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Misalignment: | No | Seal Type: | Rubber Lip |
| Static Load Rating (lb): | 20,700 lb | Full Complement/Caged: | Caged |
| Dynamic Load Rating: | 12,000 | Sealed: | Sealed - One Side |
| Speed (Max) Grease: | 1,900 | Duplexing: | No |
| Platform: | Cagerol Bearing | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No Flanges |
| Related Inner Ring: | MI 25 | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | Yes |
